SUPRA JZA80 TWIN TURBO BLOW-OFF VALVE ADAPTOR INSTRUCTIONS
Head Office: Turbosmart Pty Limited, PO Box 264 Croydon, NSW, 2132 Australia
Ph: +61(2) 9798 2866
Fax: +61 (2) 9798 2826
Email:
USA Office: Turbosmart USA, 1185 Park Center Drive, Suite Q, Vista CA 92081 USA
Ph: (760) 727 7610
Fax: (760) 727 7963
Email:
PART NUMBER
FG-ADM-SUPRA

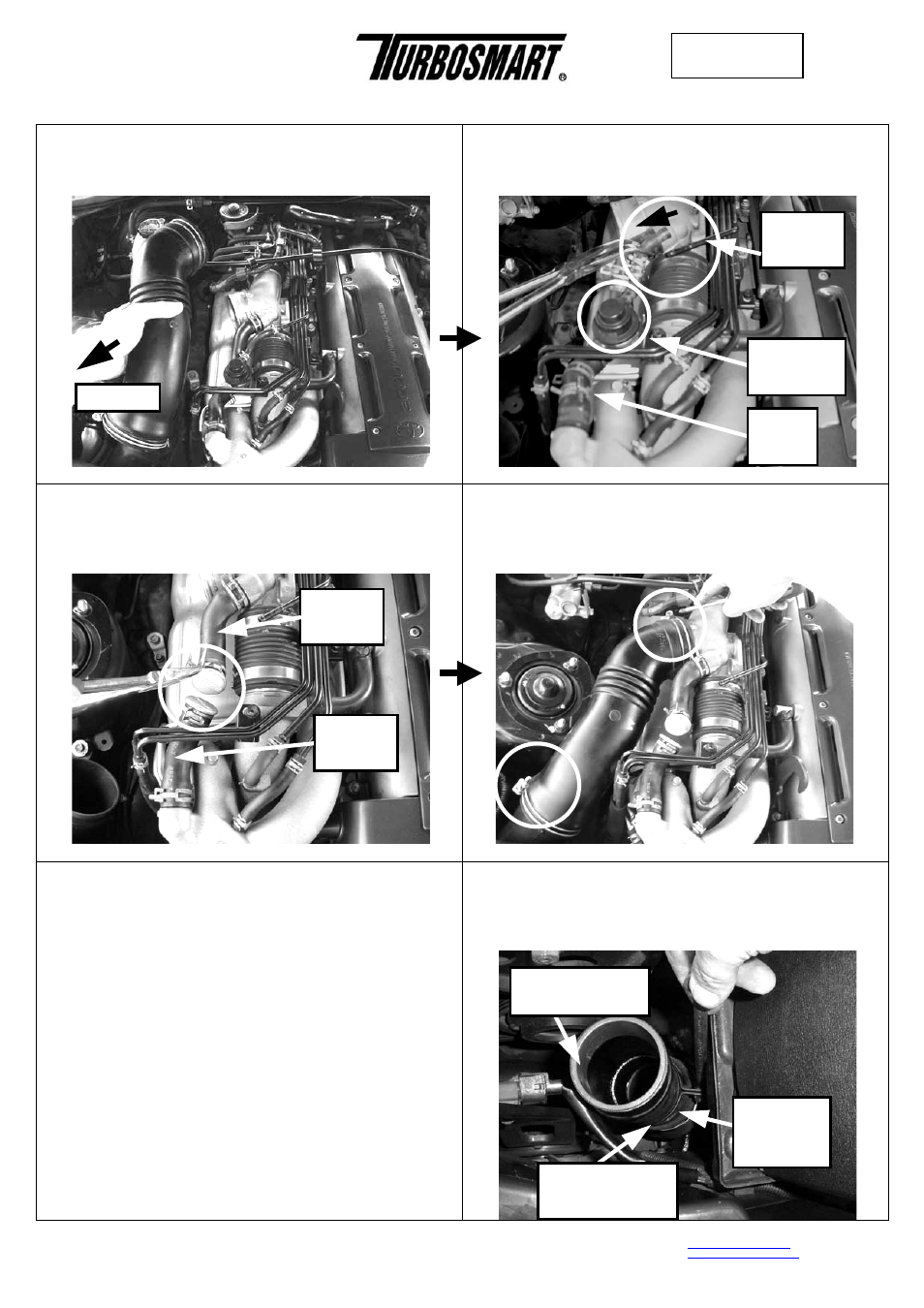

Step 3. Remove intercooler inlet pipe.
Step 4. Disconnect the factory vacuum/boost line from
the vacuum source. Loosen the clamps then remove
the factory BOV.
Step 5. Using two of the supplied 19mm blanking
plugs, blank off the factory boost and return hose.
Secure the blanking plugs with the factory hose
clamps.
Step 6. Reconnect the intercooler inlet pipe and
secure it with the factory hose clamp using a Philips
screw driver or 10mm socket.
Step 7. The intercooler outlet pipe is made of two
sections. You need to remove both sections. First
loosen the top hose clamp and the 1
st
bottom hose
clamp with a 10mm socket. Then remove the top
section of the intercooler outlet pipe.
Step 8. The bottom section is secured by a large pipe
bracket. First remove the pipe bracket from the car.
Then loosen the 2
nd
bottom hose clamp using a 10mm
socket and remove the bottom section.
Remove
Vacuum
source
Remove
Factory BOV
Boost
Hose
Return
Hose
Loosen 2
nd
Bottom
Hose Clamp
Loosen
Clamps
Remove Bottom
Section
Loosen and
Remove
Pipe Bracket
