Daystar KCO9106 User Manual
Page 8

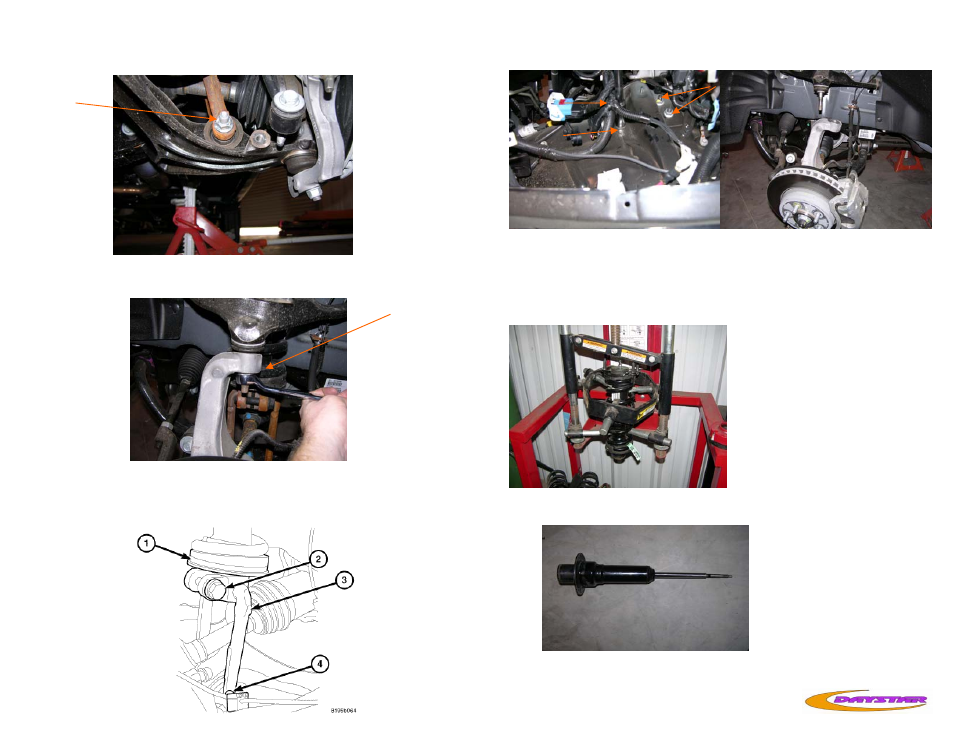

19. Remove the lower bolt at the lower control arm securing the clevis
bracket with a 24mm socket.
20. Remove the upper control arm ball joint nut with a 21mm wrench and
separate the upper ball joint from the knuckle.
21. Pull downward on the knuckle to allow access to the strut.
22. Remove the strut clevis bolt (2) with a 24mm socket and separate
the clevis (3) from the strut assembly (1) with a pry bar.
23. Remove the 4 upper strut nuts and remove the strut from the vehicle.
24. Place the strut in a wall mounted spring compressor.
25. Compress the strut and remove the upper strut nut with a 12mm
socket. Remove the upper strut plate and isolator from the strut and
pull the strut down from the bottom of the coil spring. Remove the
lower stock spring isolator from the strut.
26. Remove the dust cover and washer from strut shaft.
