Daystar KCO9106 User Manual
Page 4

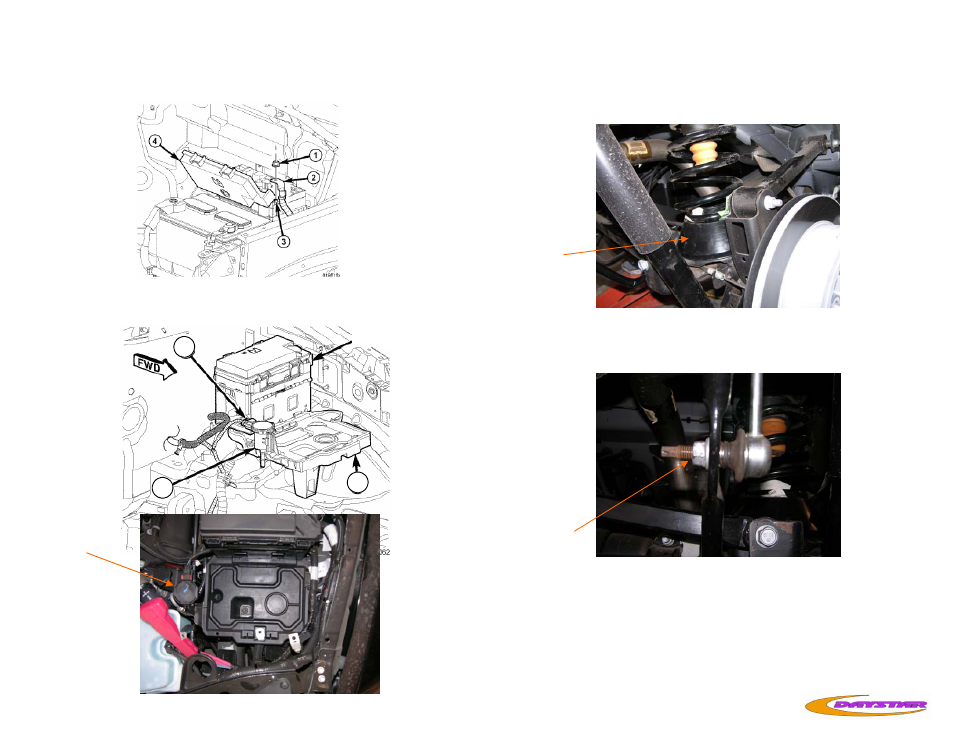

5. Disconnect the power lead (2 ) to the totally integrated power mod-
ule (TIPM 3 ) by opening the cover (4) and remove the nut with a
11mm socket (1).
6. Disconnect the purge solenoid ( 1 ) from the battery tray (2 ) by
pulling up on the solenoid and push away from the tray.
1
2
1
TIPM
39.
Jack up the rear suspension and secure the vehicle on jack stands.
Leave the jack under rear axle and remove the tire/wheels. Lower
the axle down to remove the coil spring.
40.
Remove the lower stock spring isolator. Place the lift spacer on the
lower spring mount, then reinstall the spring on top of the spacer.
41.
Reinstall the tires/wheels and lower the vehicle to the floor.
42.
Reconnect the lower shock bolt/nut with a 16mm,18mm wrench and
reconnect the sway bar end link.
