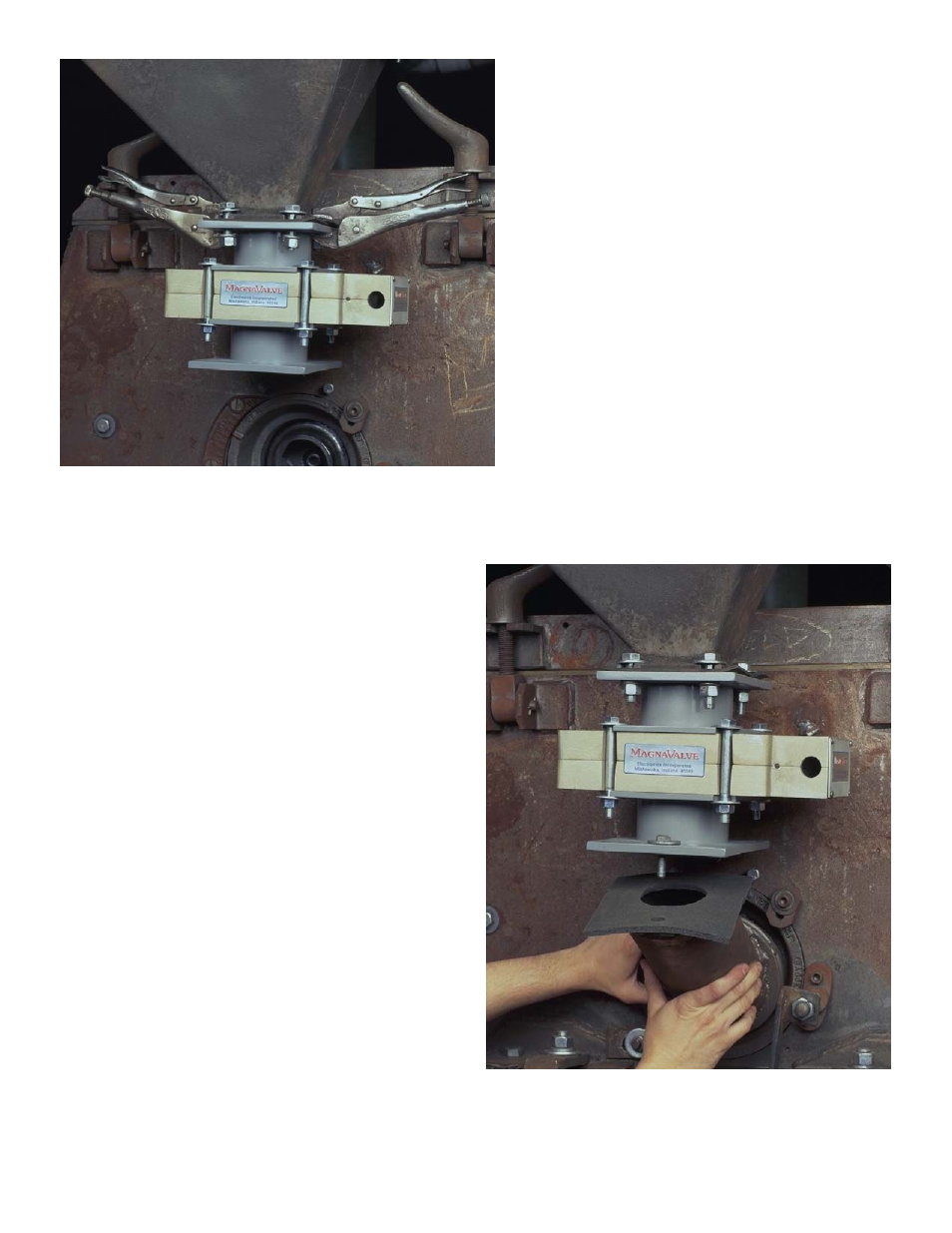

Fig. 10 The adapter plates should be
installed onto the MagnaValve and the
assembly installed as a single unit. The
entire MagnaValve assembly can be
temporarily positioned and held into
place by using vise-grip or similar pliers
and then the bolts can be installed and
tightened.

Fig. 11 The feed spout can now be rein-
stalled easily, since it bolts directly to the
adapter plate. Be sure to use a rubber gas-
ket between the adaptor plate and the feed
spout. Do not use silicon or any other adhe-
sive that will make it difficult to remove the
valve for inspection.

Fig. 10

Fig. 11

Note: Adding a nonmetallic 1” spacer
above and below the MagnaValve will
improve MagnaValve performance.
