Grain Systems Tanks PNEG-1093 User Manual
Page 42
6. Installation
42
PNEG-1093 2.66" Corrugation Unstiffened Bin
Ladder Section Assembly

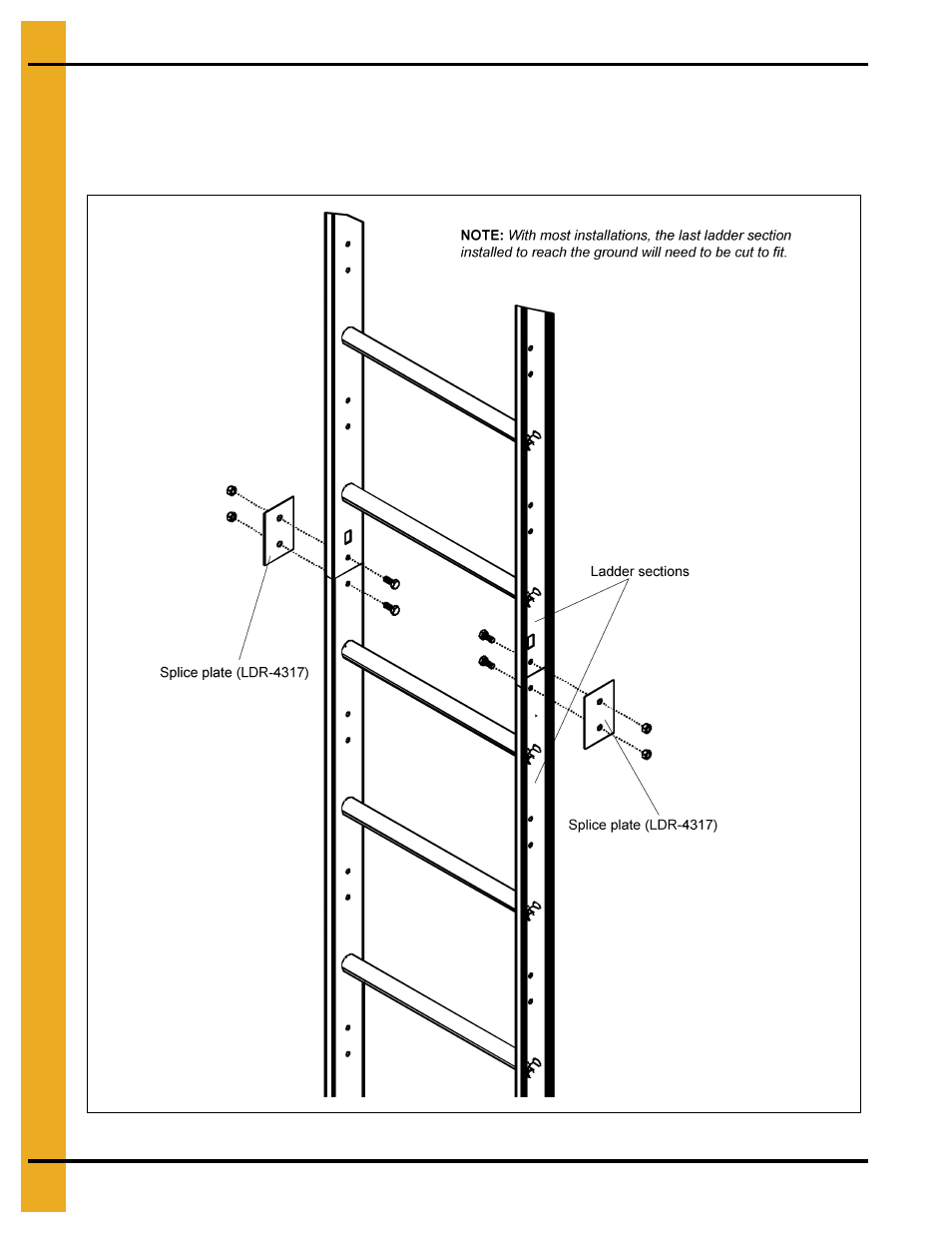

Two (2) splice plates (LDR 4317) are required to attach each ladder section. The head of the bolt should
be to the inside of the ladder with the splice plate on the outside as shown in
. Use 5/16" x 3/4"
bolts for all connections.
Figure 6H
