Location of Accessories
1. On this page are typical bin layouts showing suggested location of bin accessories. Figure 5K shows
the fan and unloading auger on opposite sides of the bin to allow good air flow. When locating the
manway, be sure the ladder will not interfere with the other bin accessories below. Roof vents should
be spaced evenly around the roof.

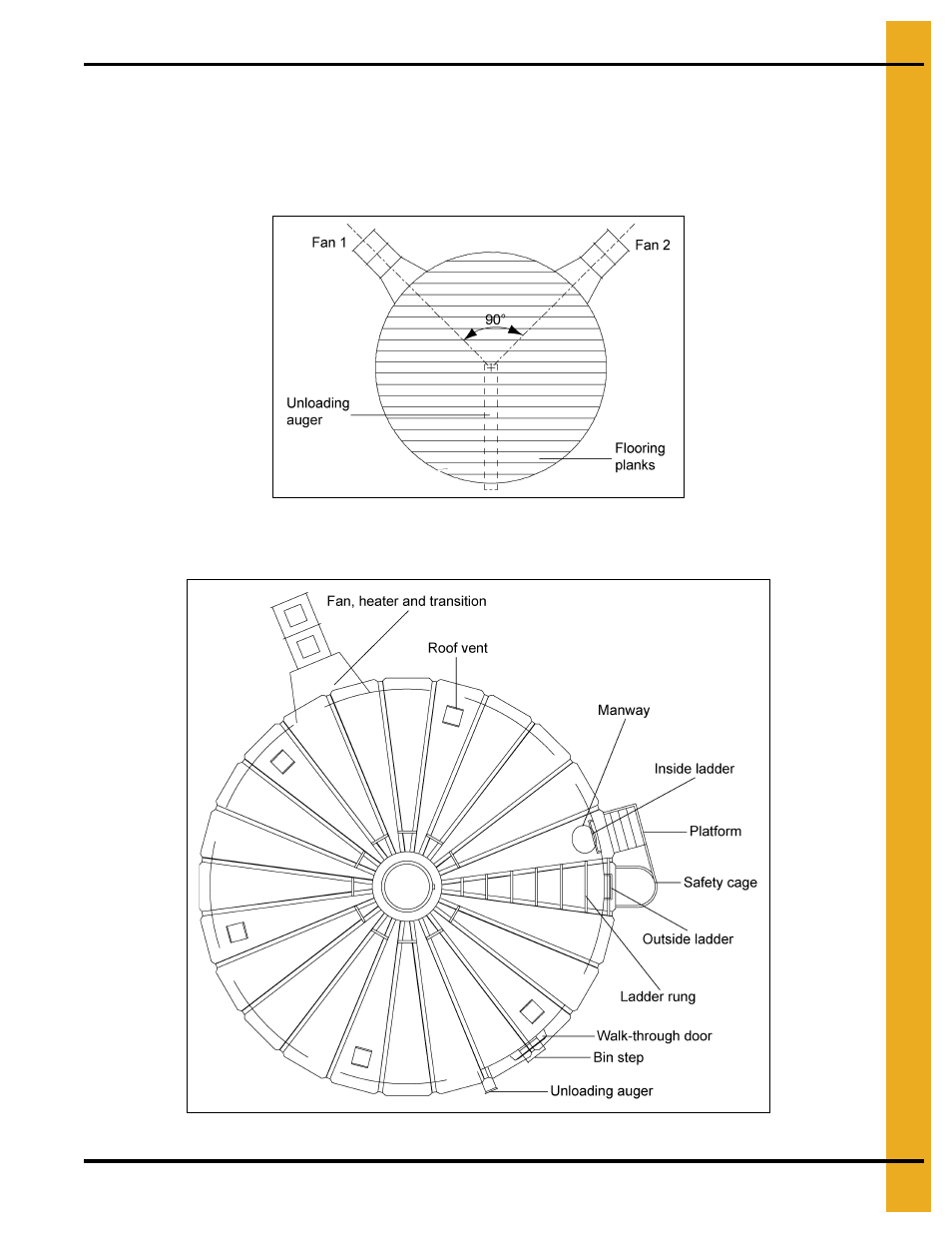

Figure 5J Placement with Two (2) Fans
2. Figure 5J shows two (2) fans should be placed at a 90° angle to each other.
Figure 5K Placement with One Fan
