5. 2.66" Corrugated Commercial Hopper Tank 4-9 Rings
PNEG-1451 Ladder, Safety Cage and Platform for Hopper Tanks 33
Left Hand Platform and Platform Support Assembly
NOTE: Mount the platform mounting angles on the columns first. Next, assemble the platform floor onto
the support frame. Do not tighten platform support to floor brace bolts until the floor and toe plates
are secure.
Assemble the platform support frame using 5/16" x 3/4" truss head bolts and nuts. Align holes on the
platform floor with the holes on platform supports and bolt together using 5/16" x 3/4" truss head bolts and
nuts. Attach platform toe plates at the same time as attaching the platform floor. Vertical entrance angle
bolts to the platform floor, toe plate and platform support. Handrail post bolts to the platform floor and toe
plate as shown in
Figure 5S .

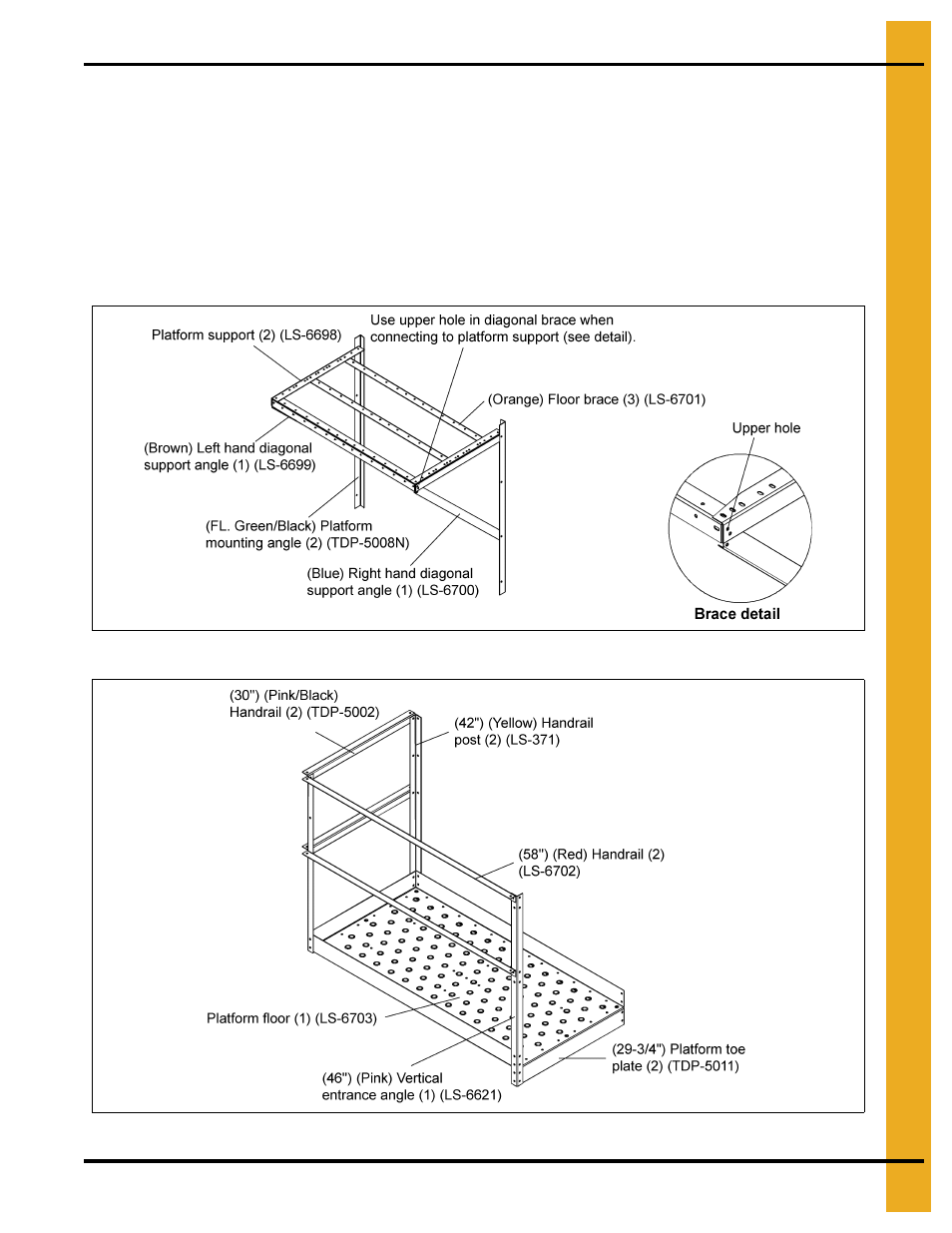

Figure 5R Left Hand Platform Support Assembly
Figure 5S Left Hand Platform
