12 PNEG-1451 Ladder, Safety Cage and Platform for Hopper Tanks
4. General Detail Information
Extension Rail Installation
All ladder systems that include a safety cage must also include ladder extension rails attached to the top
four foot (4') ladder section. Start by bolting the spacer brackets through the top and bottom set of holes
in the top ladder section. Then, attach the extension rails to the spacer brackets as shown in
Figure 4A .
When installed correctly, the bottom of the extension rail should be flush with the bottom of the top ladder
section. Use 5/16" x 3/4" bin bolts for all connections.

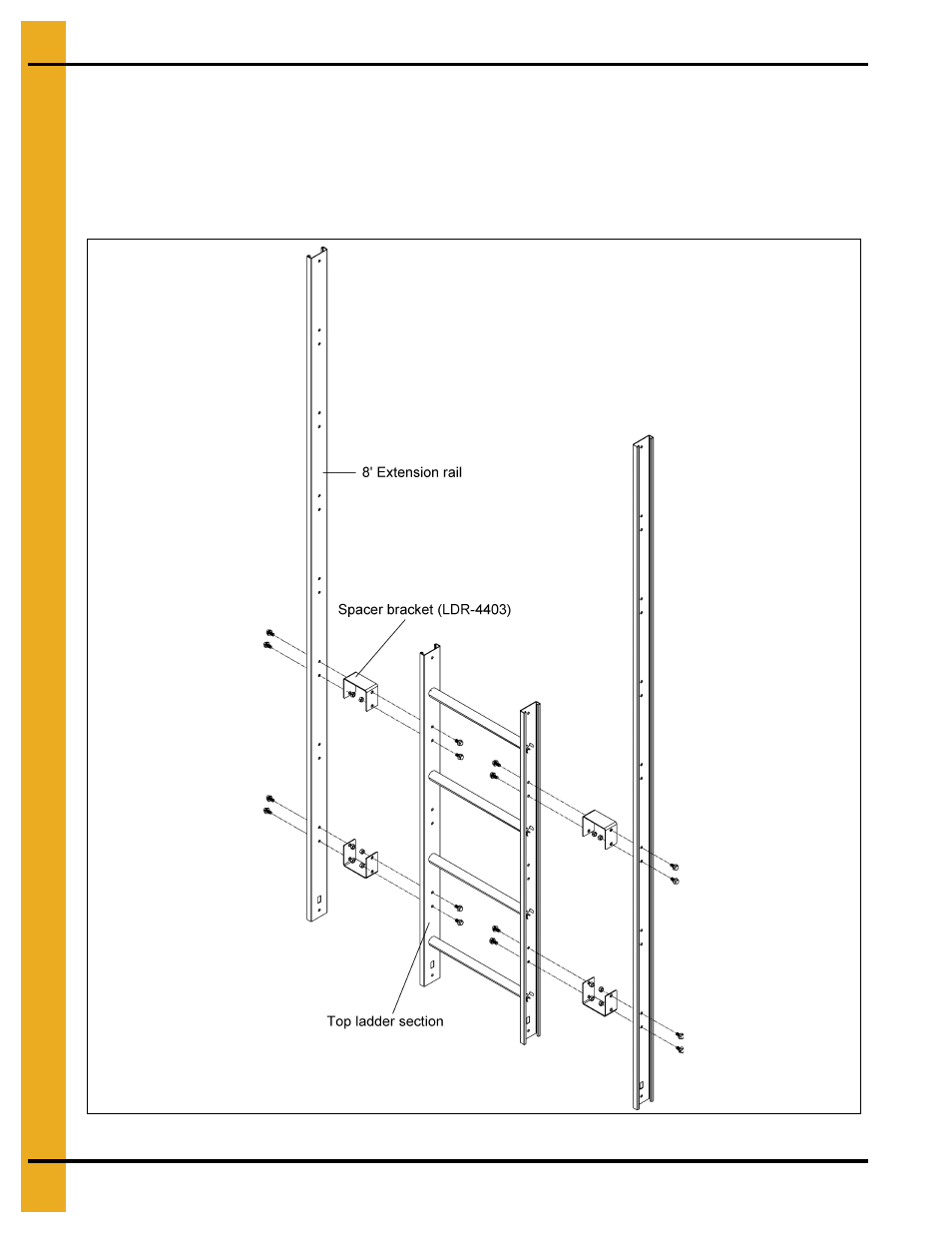

Figure 4A Ladder Extension
