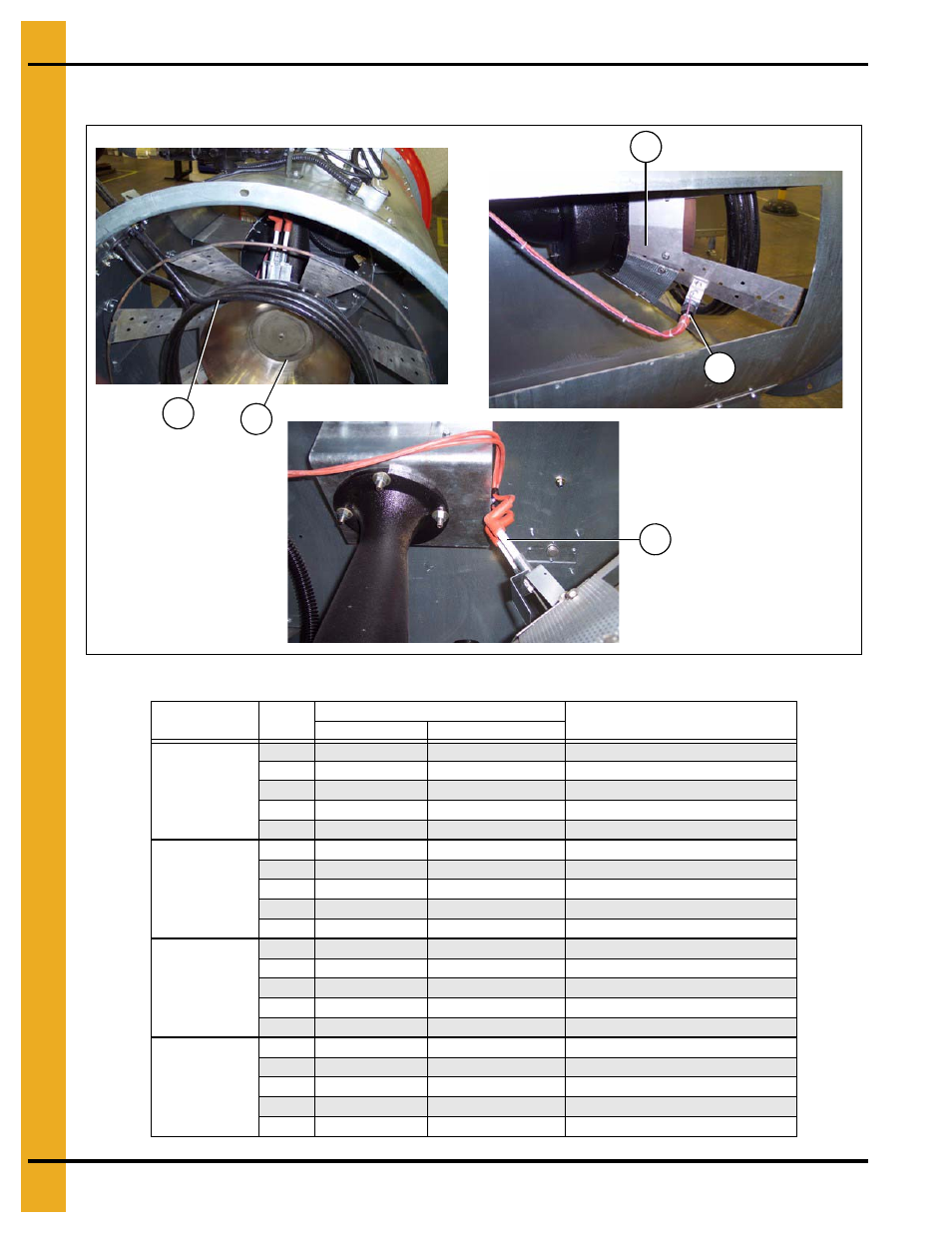

1. Parts List
6 PNEG-1649 Top Dry
Fan Burner
Fan Burner Parts List
Fan/Heater
Diameter HP
Ref #
Part #
Description
LP Units Natural Gas Units
36" 15 HP
1 HF-7207 N/A Vaporizer Coil
2 THF-3047 THF-3047 Burner Assembly
3 TF-1559-T TF-1559-T Flame Probe and Wire Assembly
4 TF-1558 TF-1558 Ignitor and Wire Assembly
5 HH-7056 N/A Burner Cone
40" 15 HP
1 HF-7183 N/A Vaporizer Coil
2 THF-3028 THF-3028 Burner Assembly
3 TF-1559-T TF-1559-T Flame Probe and Wire Assembly
4 TF-1558 TF-1558 Ignitor and Wire Assembly
5 HH-7056 N/A Burner Cone
42" 30 HP
1 HF-7251 N/A Vaporizer Coil
2 THF-3028 THF-3028 Burner Assembly
3 TF-1559-T TF-1559-T Flame Probe and Wire Assembly
4 TF-1558 TF-1558 Ignitor and Wire Assembly
5 HH-7056 N/A Burner Cone
42" 40 HP
1 HF-7319 N/A Vaporizer Coil
2 THF-3028 THF-3028 Burner Assembly
3 TF-1559-T TF-1559-T Flame Probe and Wire Assembly
4 TF-1558 TF-1558 Ignitor and Wire Assembly
5 HH-7056 N/A Burner Cone
1
5
2
3
4
