PNEG-1649 Top Dry

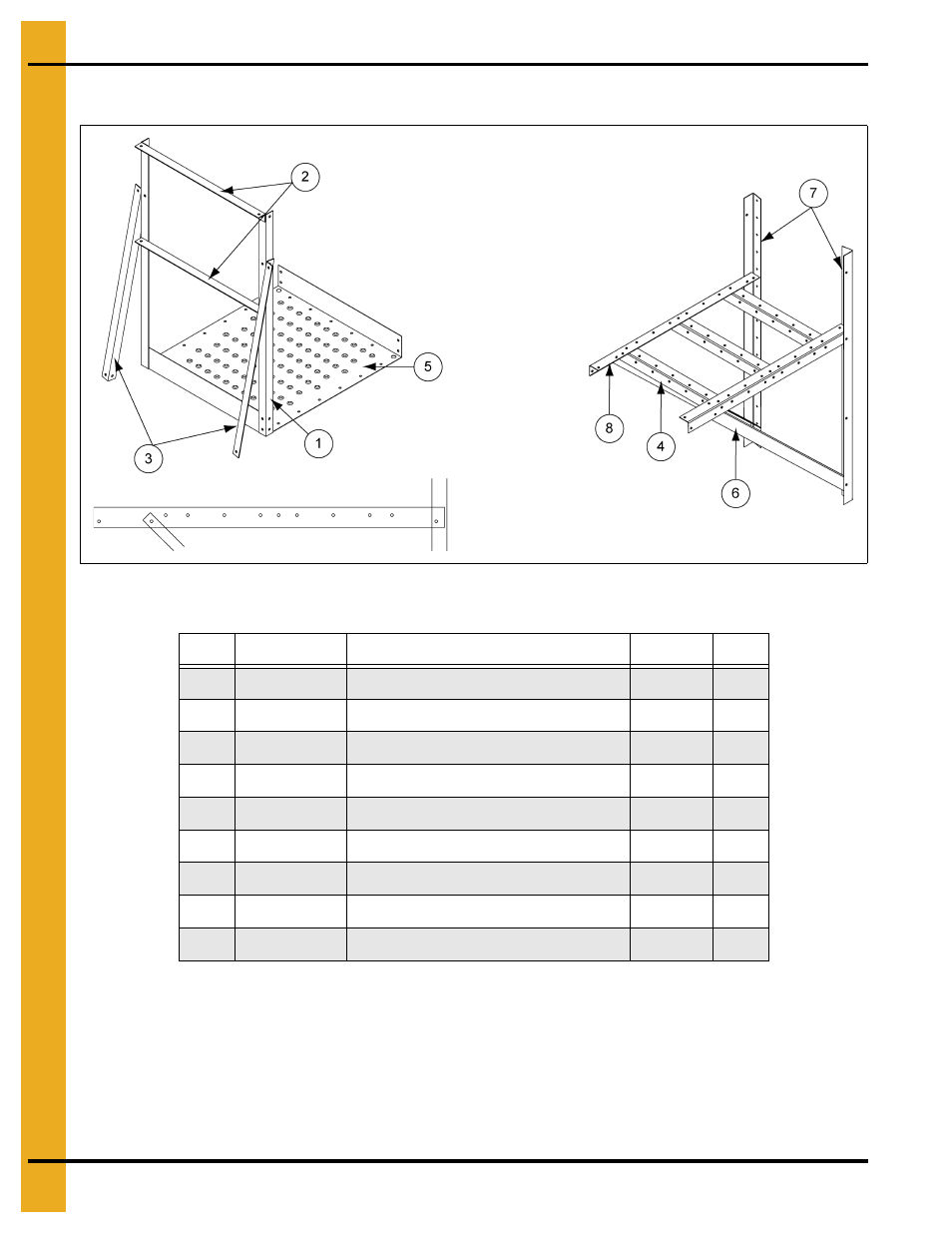

Cross Over Platform Assembly (for use with stairs) (TDP-5013)

Cross Over Platform Assembly (for use with stairs)

(TDP-5013) Parts List

Ref #

Part #

Description

Weight

Qty

1

LS-371

Platform Vertical Angle 42"

7.59

2

2

TDP-5001

Handrail 27"

4.63

2

3

TDP-5003

Handrail Brace 36-29/32"

6.34

2

4

TDP-5004

Short Floor Brace 26-1/2"

11.85

3

5

TDP-5006

Platform Floor 37-7/8"

19.11

1

6

TDP-5007

Support Brace 50-21/32"

15.08

2

7

TDP-5008

Sidewall Brace 58"

19.65

2

8

TDP-5009

Platform Support 43-1/2"

12.95

2

N/S

TDP-5015

Cross Over Platform Hardware Package

3.95

1
