Rotary Switch Package 27'-30' High-Limit (TAF-6101)

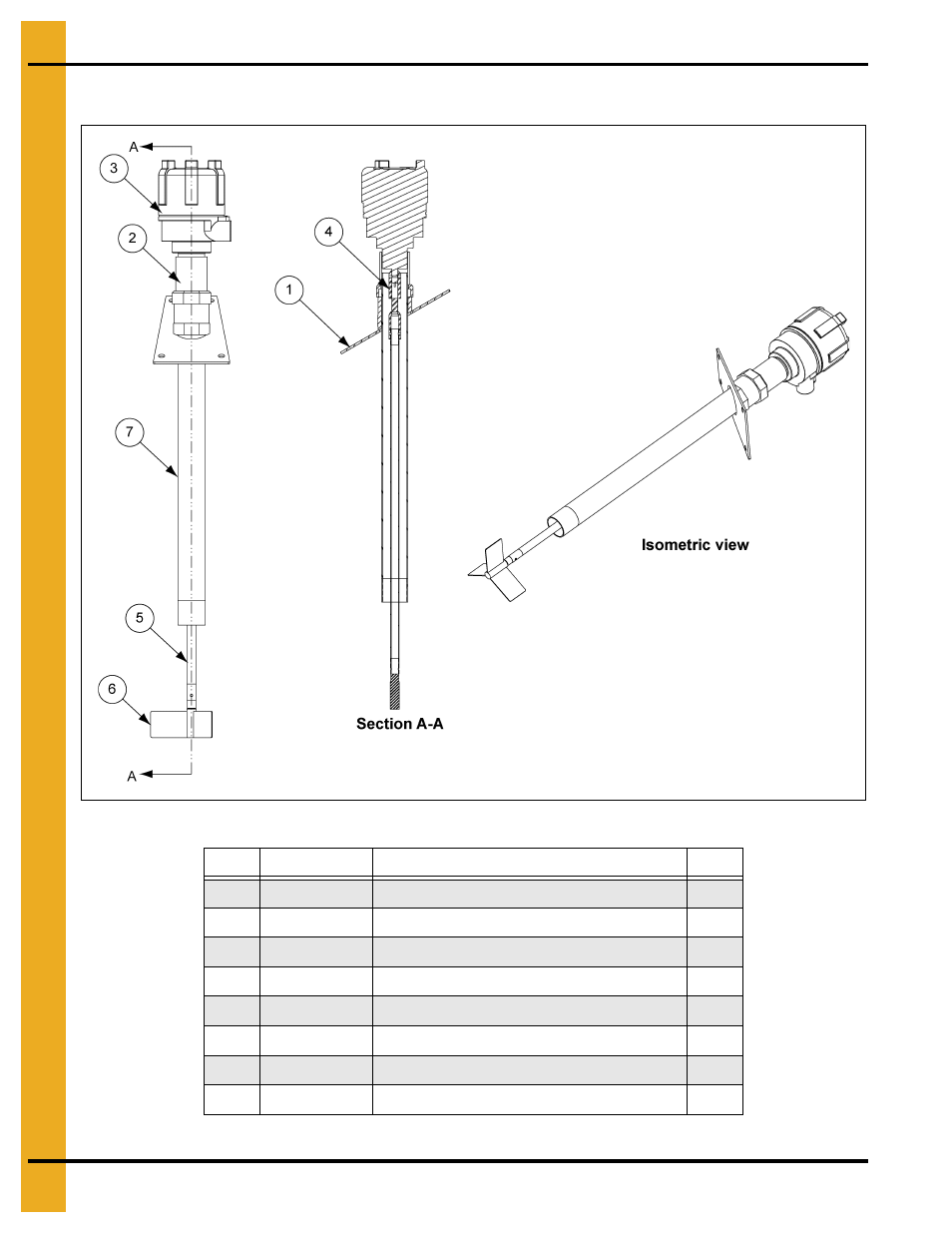

Rotary Switch Package 27'-30' High-Limit (TAF-6101) Parts List
Ref # Part # Description Qty
1 TD-101107 Top Dry Chamber High-Limit Mount Weldment 1
2 TD-100106 Coupler, 1-1/4" SCH 40 Galvanized 1
3 TD-100076 Switch, Rotary Power Pack 1
4 TD-100075 Coupler, Rotary Switch 1
5 TAF-6175 Rotary Shaft Extension 1
6 TAF-6086 Paddle, Rotary Switch 1
7 TAF-6174 Shaft Guard 30' 1
N/S TAF-6097 High/Low Limit Rotary Switch Hardware Package 1
NOTE: Use the following components of TAF-6097 to
attach assembly:
1. TAF-6107 Coupler aligned with holes in TAF-6175
and TAF-6086.
2. Use S-7241 (2) to attach TAF-6107 to TAF-6175
and TAF-6086.
3. Use supplied 1/8" roll pins to attach TD-100075 to
TD-100076 and TAF-6175.
