1. Parts List
24 PNEG-1649 Top Dry
Access Door Platform (TDP-5012)

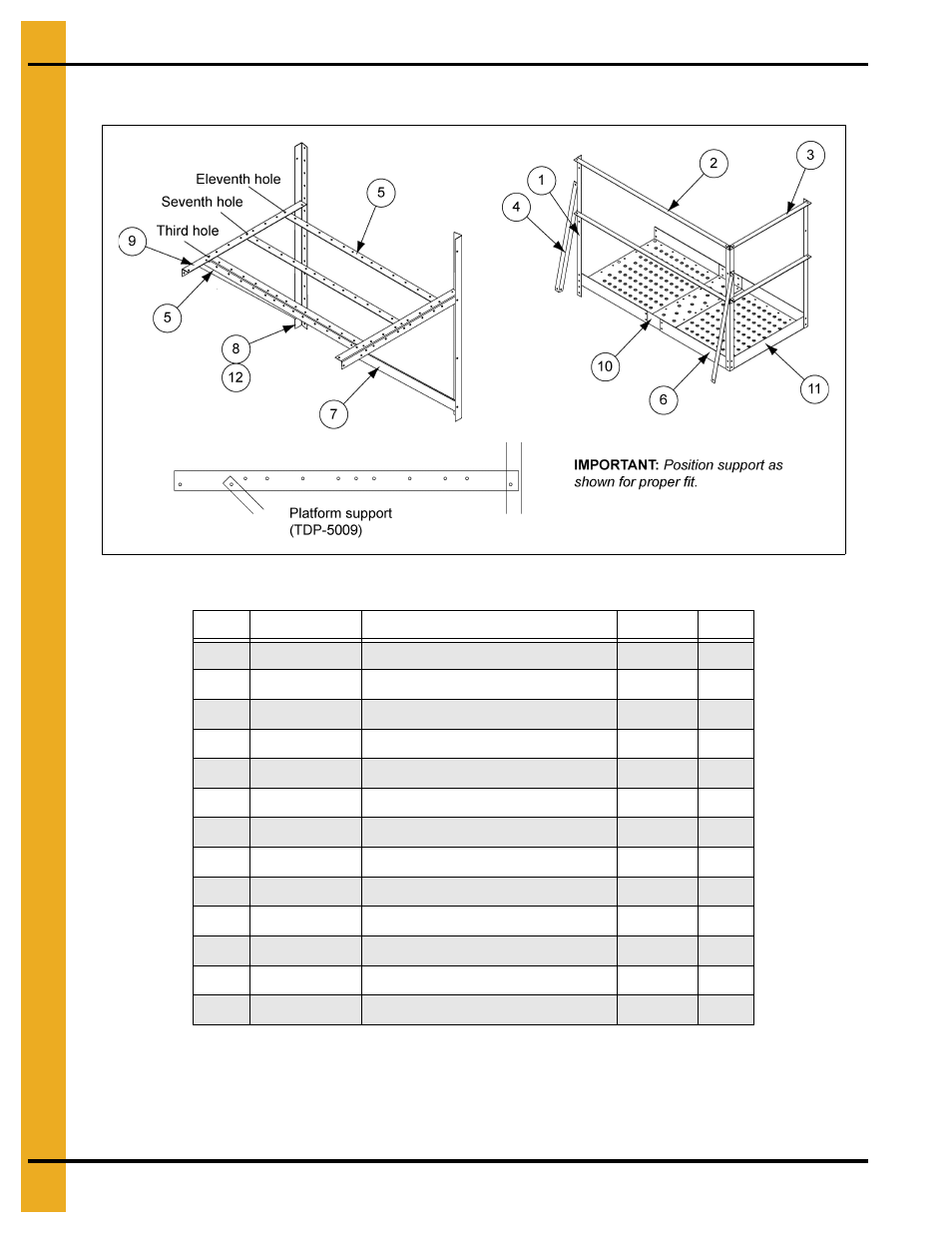

Access Door Platform (TDP-5012) Parts List
Ref # Part # Description Weight Qty
1 LS-371 Platform Vertical Angle 42" 11.38 3
2 TDP-5000 Handrail 59" 10.15 2
3 TDP-5002 Handrail 30" 10.15 2
4 TDP-5003 Handrail Brace 36-29/32" 6.34 2
5 TDP-5005 Floor Brace 58-1/2" 26.11 3
6 TDP-5006 Platform Floor 37-7/8" 38.23 2
7 TDP-5007 Support Brace 50-21/32" 15.08 2
8 TDP-5008 Sidewall Brace 58" 19.65 2
9 TDP-5009 Platform Support 43-1/2" 12.95 2
10 TDP-5010 Platform Floor Splice 37-1/2" 6.24 1
11 TDP-5011 Platform Toe Plate 29-3/4" 3.29 1
12 TDP-5008N Sidewall Brace 2.66" 16.61 2
N/S TDP-5014 Access Door Package Hardware 5.41 1
