1. Parts List
PNEG-1649 Top Dry 43
Control Box Parts (Continued)

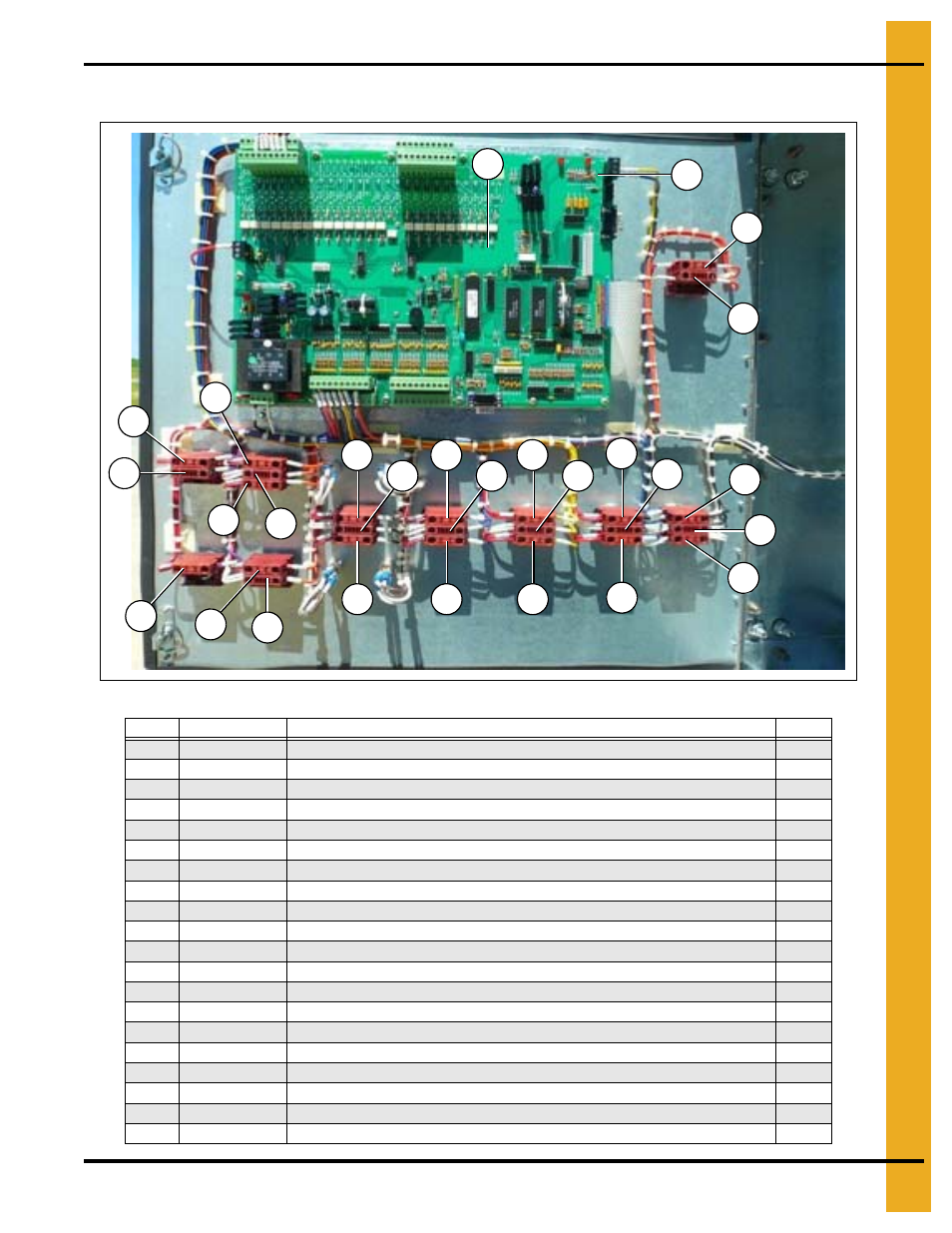

Series 2K Top Dry Control Panel Parts List
Ref # Part # Description Qty
1 D01-0444 Switch, 2 Position Selector Amber 080SMLDA GE 2
2 D01-0445 Switch, 3 Position Selector Amber 080SMLBA GE 1
3 D01-0446 Switch, 2 Position Selector Green 080SMLDV GE 1
4 D01-0447 Switch, 3 Position Selector Red 080SMLBR 1
5 D01-0449 Switch, 3 Position Selector Blue 080SMLBBL GE 2
6 D01-0579 Switch, 3 Position Selector Yellow 080SMLBG GE 1
7 D03-0017 Switch, Start N.O. (Illuminated) P9CPLVGD GE 1
8 D03-0020 Switch, Stop Block (Red) P9CPNRS GE 1
9 D01-0455 Lamp, Block Light 12/24/120V GE #090ADV for Use with Selector Switch 1
10 D01-0460 Terminal, Strip 10 Position Computer BDS EBY#EB1558A-10 or Equiv. CSA 18
11 D01-0531 Terminal, Block Entrelec 4 mm 22-10 AWG 36
12 D03-0682 Lamp, 120 VAC Replaces Both 120V and 12V Bulbs 9
13 D63-0006 Block, Contact N.O. G.E. (Use D63-0006AB for Allen-Bradley) 16
14 D63-0013 Block, Contact N.C. G.E. (Use D63-0013AB for Allen-Bradley) 1
15 TAF-6150 Panel, Touch Top Dry Auto - Keypad 1
16 TF-1279 Switch, Emergency Stop Operator 080TER Emergency Stop/2 N.C. GE 230V 1
16 TF-1486 Plate, Emergency Stop Switch 080N2RP009 GE (N/S) 1
17 TF-1862 Top Dry S2000 I/O Board with Software 1
18 TF-1863 Top Dry S2000 Display Board with Software 1
19 TFH-2021 Lamp, Red Light (No Leads) 4
