Banks Power Dodge Trucks: (Diesel ’03 - 07 5.9L Cummins) PowerPack & Stinger w_EconoMind '06-07 For use with PowerPDA User Manual
Page 9

96813 v.9.0
9
Spilt Dual Exhaust
12.
Install the rear muffler hanger
clamp with the two pins facing
forward onto the muffler outlet.
Insert the two hanger pins into the
vehicle’s corresponding rubber
hangers.
13.
Install the Banks Y-pipe into the
muffler outlet such that the outlets
are pointing up. Install two (2) 3-
1
⁄
2
”
saddle clamps onto each y-pipe
outlet (see Figure 3).
14.
Install the Banks hanger bracket
onto the rear of the driver-side frame
rail. Behind the rear shock cross
member, place the hanger bracket
over the frame rail on the inside.
Align the hole in the center of the
frame with the hanger bracket. Install
the
7
⁄
16
”x 4” & washer through the
bracket and frame rail. Secure the
bolt on the outside frame rail using
the 2”x2” plate, washer and
7
⁄
16
”
nut. Be sure the hanger pin is parallel
with the frame rail and torque
7
⁄
16
”
hardware to 48 ft-lb (see Figure 4).
15.
Install the supplied rubber
hanger onto the Banks hanger
bracket.
16.
Install the driver-side tailpipe
into the top Y-pipe outlet. Install the
driver-side tailpipe hanger into the
vehicle rubber hanger.
17.
Install the passenger-side
tailpipe into the lower Y-pipe outlet.
Install the passenger-side tailpipe
hanger into the vehicle rubber
hanger.
DRIVER SIDE
TAILPIPE
PASSENGER
SIDE
TAILPIPE
3.5”
CLAMP
REAR
HANGER CLAMP
ORIENTATION OF
MONSTER MUFFLER
FRONT
HANGER
CLAMP
FORWARD
4“
CLAMP
INTERM
PIPE
Y-PIPE

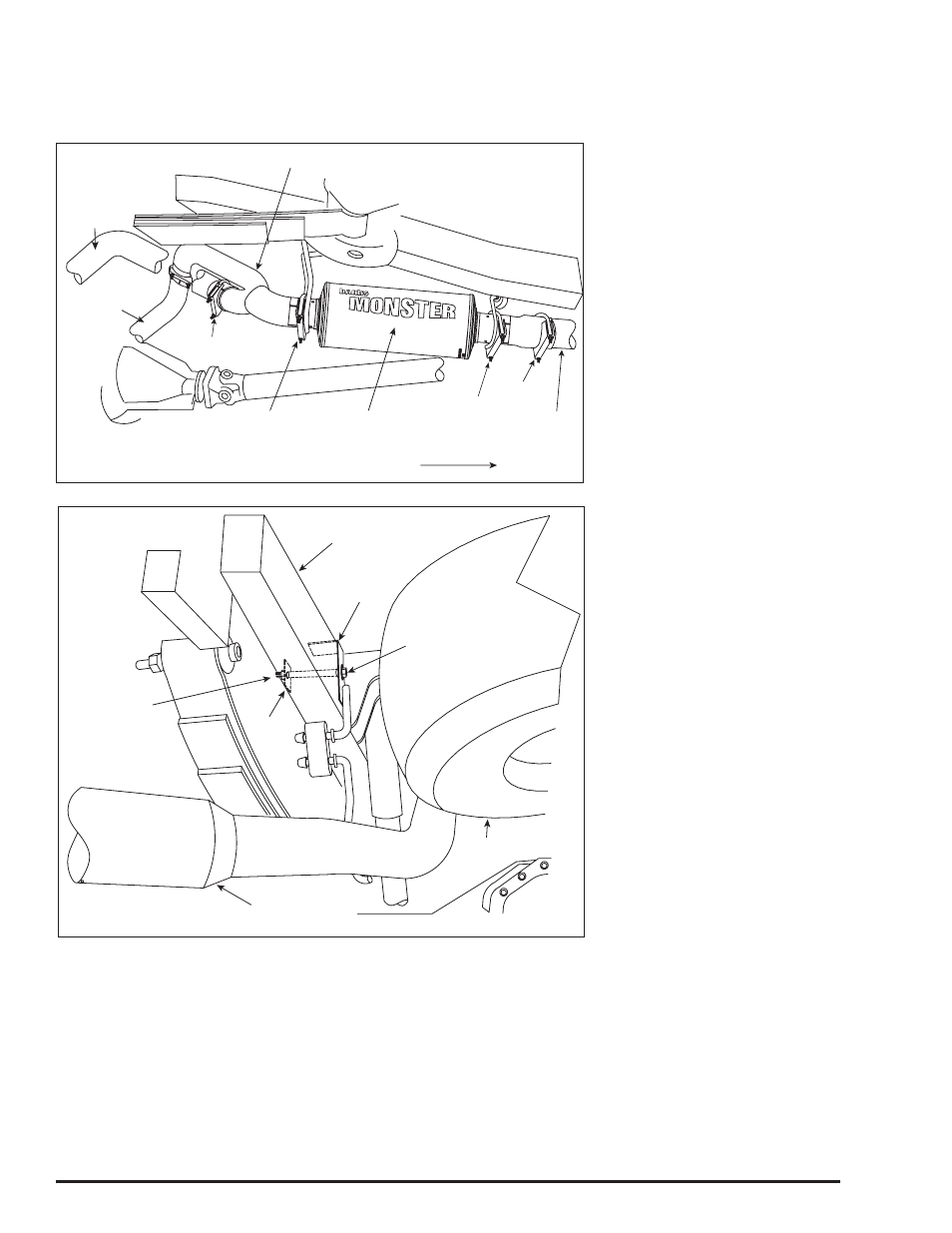

Figure 3
DRIVER SIDE
TAILPIPE
DRIVER SIDE
FRAME
HANGER
BRACKET
7/16” BOLT
& WASHER
SPARE
TIRE
7/16”
NUT &
WASHER
2“ X 2”
PLATE
Figure 4
