96813 v.9.0
23
the corresponding male cKP sensor
connector on the EconoMind
harness. Plug the EconoMind’s
female cKP sensor connector into
the sensor. Take care to route the
wire harness away from the power
steering pump pulley and secure
it with the supplied cable ties. See
Figure 25.
13.
Locate the camshaft Position
(cMP) sensor below the fuel
injection pump between the timing
gear cover and the EcM. Unplug
the factory connector and plug it
into the corresponding male cMP
sensor connector on the EconoMind
harness. Plug the EconoMind’s
female cMP sensor connector into
the sensor. See Figure 26.
14.
Remove the fuse box cover,
located in left front side of the engine
compartment. Locate the mini-fuse
#28 and remove it. Install the mini-
auto blade tap onto the removed
mini fuse as shown in Figure 27.
Re-install the mini fuse with the
attached blade tap into location #28
as shown in Figure 28. Plug in the
terminal to the mini-auto blade.
Note: Install the mini-auto blade tap
on the terminal leg closest to the
engine. This is the “hot” side of the
circuit.
Caution: It is very important that
you select the proper fuse. The
Banks EconoMind Diesel Tuner
will not function properly if
installed incorrectly.

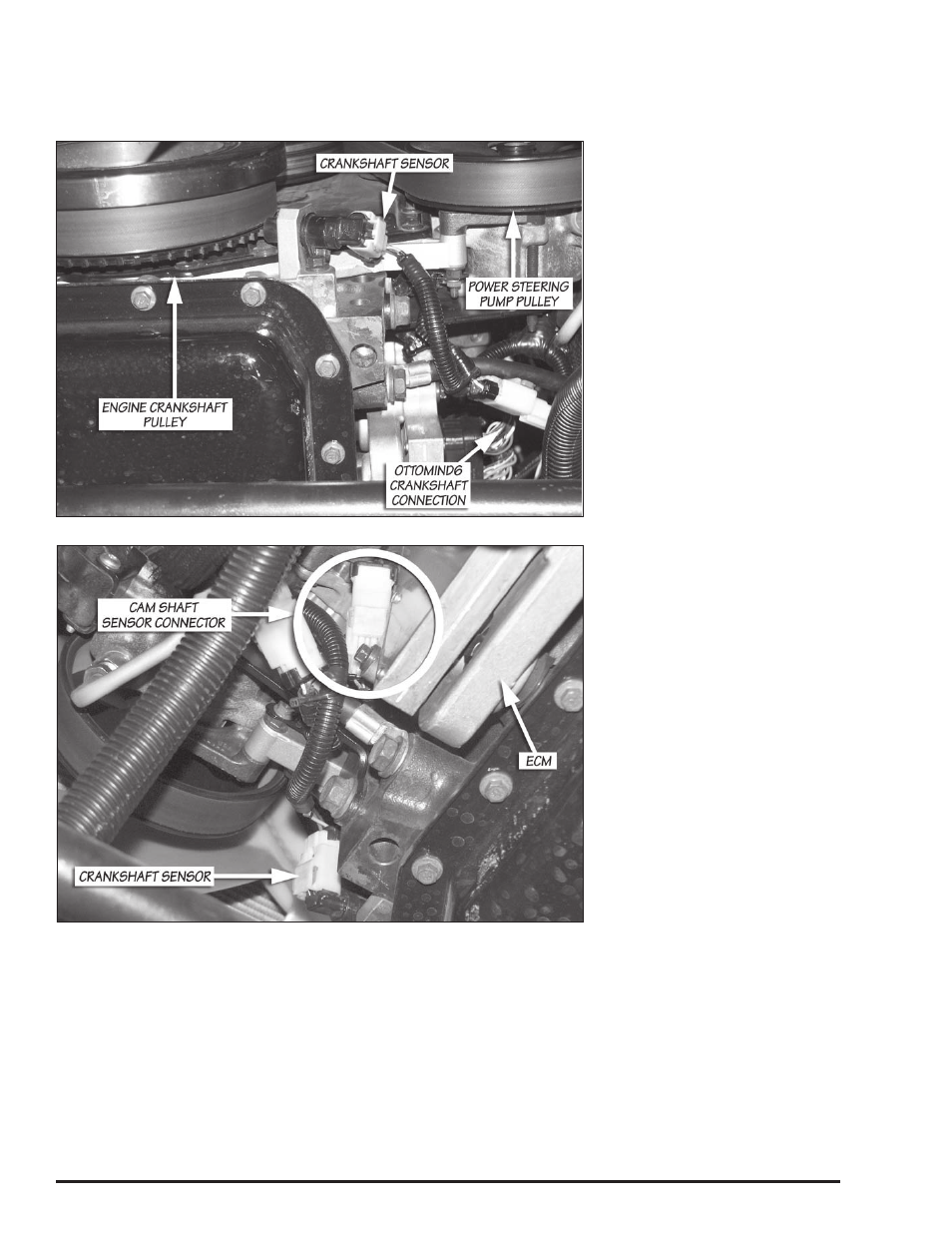

Figure 25
Figure 26
