15. Remove gas cap. Remove the four screws from fuel filler assembly. See Photo 13.
16. Remove the screws for fuel filler bezel. See Photo 14.
17. Depending on the year of jeep if your EVAP canister or ( charcoal canister ) is under hood on drivers fender skip to
step 23.
18. If the EVAP canister is located on the passenger side rear wheel well, proceed with step 19.
19. Remove wheel from passenger rear using a 19mm socket then remove the 7 push clips from inner fender well. See
Photo 15.
20. Remove fender well. See Photo 16.
21. Using a 13mm socket, remove EVAP canister plate. See Photo 17.
22. Unclip the black clamp around hose just above the white connector. See Photo 18.

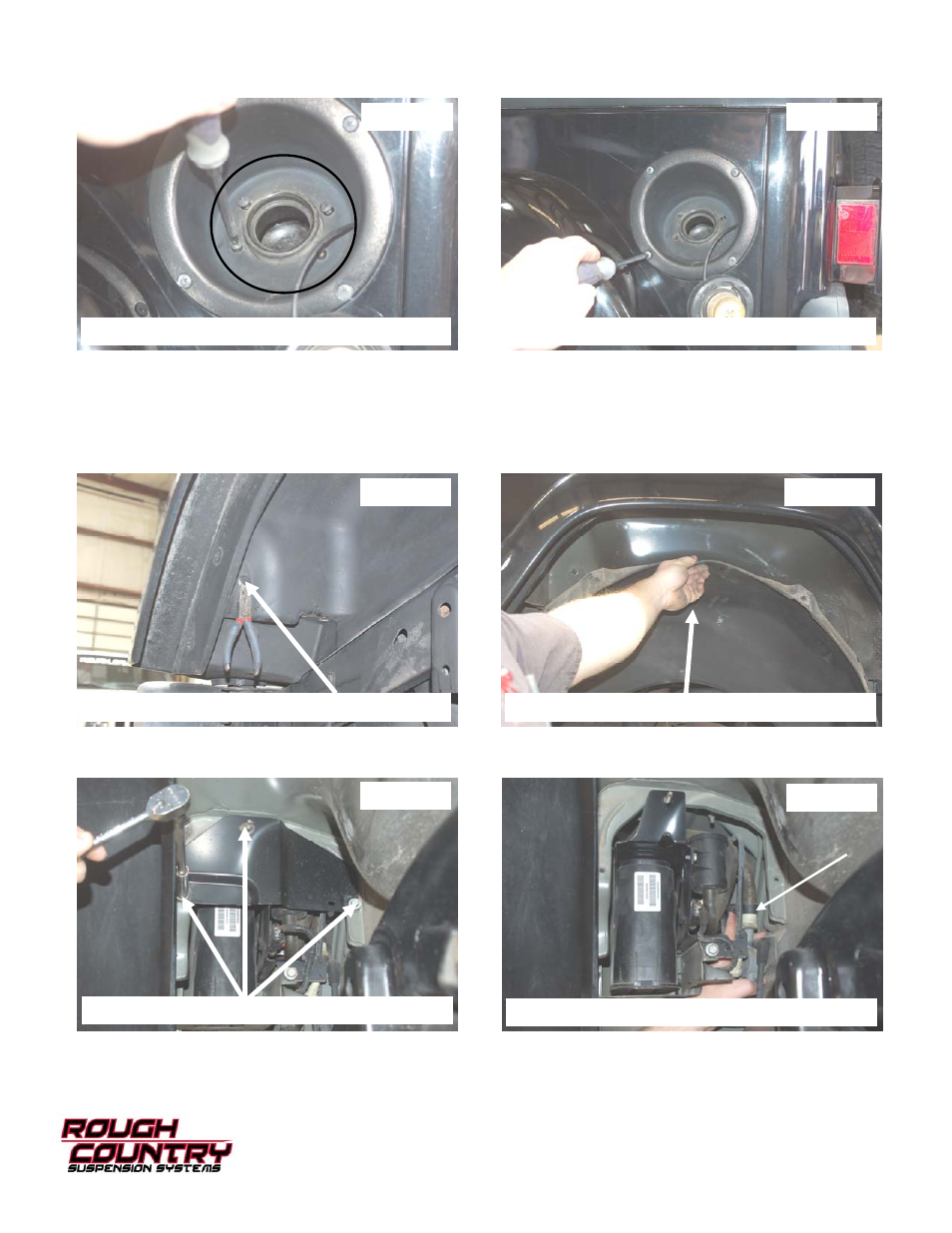

PHOTO 13 PHOTO 14
PHOTO 15 PHOTO 16
PHOTO 17 PHOTO 18
REMOVE THE FUEL FILLER NECK REMOVE THE FUEL FILLER BEZEL
REMOVE REAR PASS INNER FENDER COVER REMOVE THE INNER FENDER
REMOVE THE EVAP CANNISTER COVER MOVE BLACK CLAMP UP
