Rough Country 234N2 User Manual
Page 4

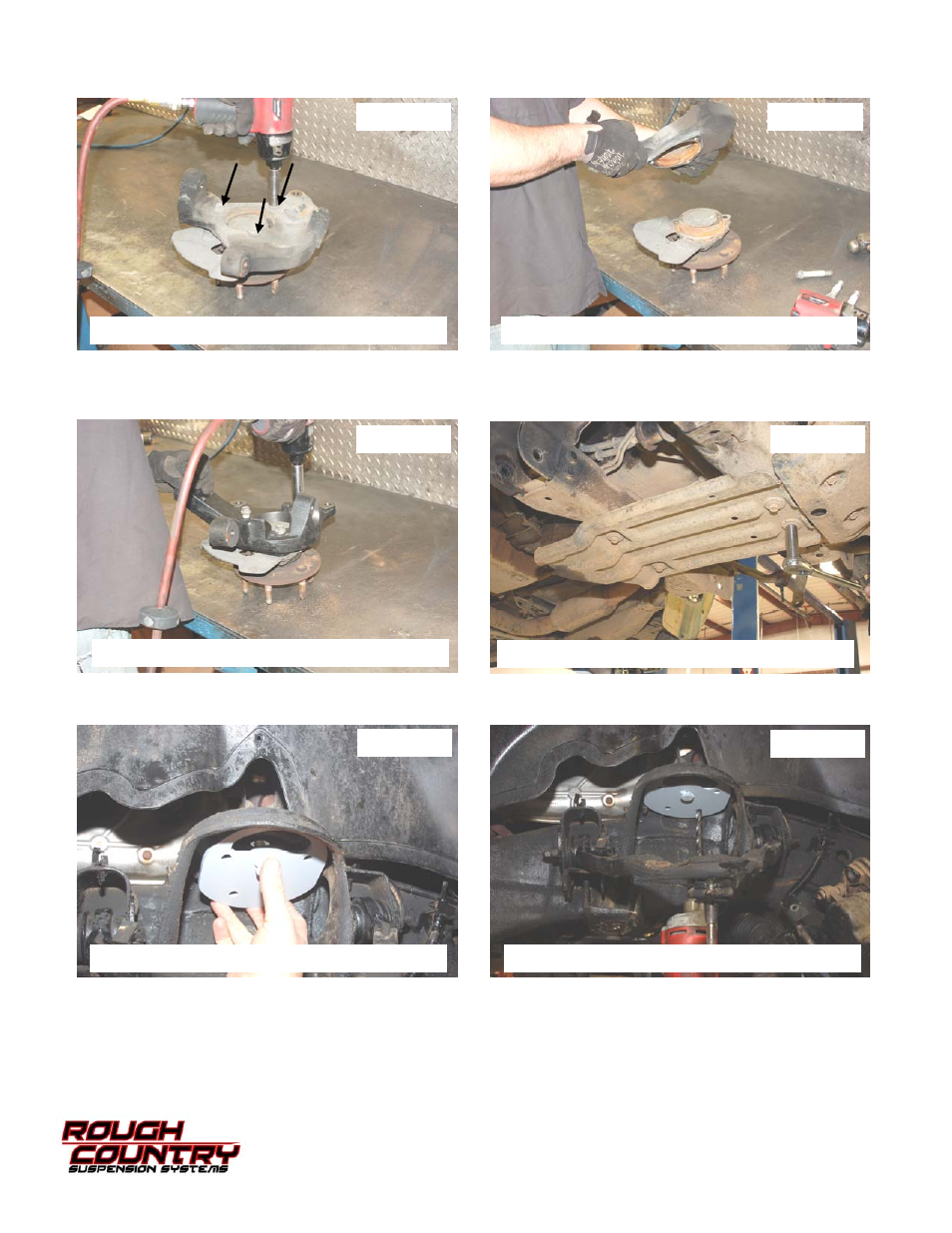

17. Remove the three bolts that secure the bearing assembly to the stock knuckle and remove using a 15mm socket.
These bolts will be reused later in installation of new knuckles. See Photo 13 & 14.
18. Install the bearing assembly on the new knuckle with the three factory bolts making sure to align the brake cover and
tighten using a 15mm socket to factory specs. See Photo 15.
19. Remove the lower skid plate using a 15mm socket. See Photo 16.
20. Install the coil spacer template temporarily with the 1/2” nut and drill the holes using a 13/32” drill bit. See Photo 17
& 18.
PHOTO 13
PHOTO 14
PHOTO 15
REMOVE THE BEARING ASSEMBLY
ASSEMBLY REMOVED FROM KNUCKLE
INSTALL THE ASSEMBLY ON KNUCKLE
PHOTO 16
REMOVE THE LOWER SKID PLATE
PHOTO 17
PHOTO 18
INSTALL THE COIL SPACER TEMPLATE
DRILL THE 4 HOLES
