37. Install new skid plate using the 3/8 self tapping bolts on front cross member and on the rear cross member using a
9/16” mm wrench as shown in Photo 31 & 32.
38. At this time tighten all cross-member bolts using a 21mm and a 1” 1/16 wrench and the rear differential bolt using a
15 mm wrench. Tighten the lower control arm bolts to 200 ft/lbs.
39. Install the new sway-bar drop brackets on the frame using factory hardware and a 15mm wrench.
40. Reinstall front driveshaft using 12mm 12 point socket.
41. Install the sway bar onto the new bracket using the 3/8 x 1” bolts as shown in Photo 33. Tighten using a 9/16” wrench.
42. Reinstall sway-bar link back into sway-bar. Using a 21mm wrench tighten nut.
44. Install the supplied 3/8” self clinching studs in the strut spacer as shown in Photo 34. Using a 9/16” socket and torque
wrench, torque the nuts to 35-40 ft lbs. This will cinch the studs in the spacer.
45. Install the strut spacer on the strut as shown in Photo 35 with factory hardware. Install the strut in the upper mount on
the vehicle as shown in Photo 36 with the supplied 3/8” flat washers, lock washers and nuts using a 14mm wrench.
Install the lower strut mount in the lower control arm with factory hardware and using a 30mm socket and a 1” 1/16
socket.

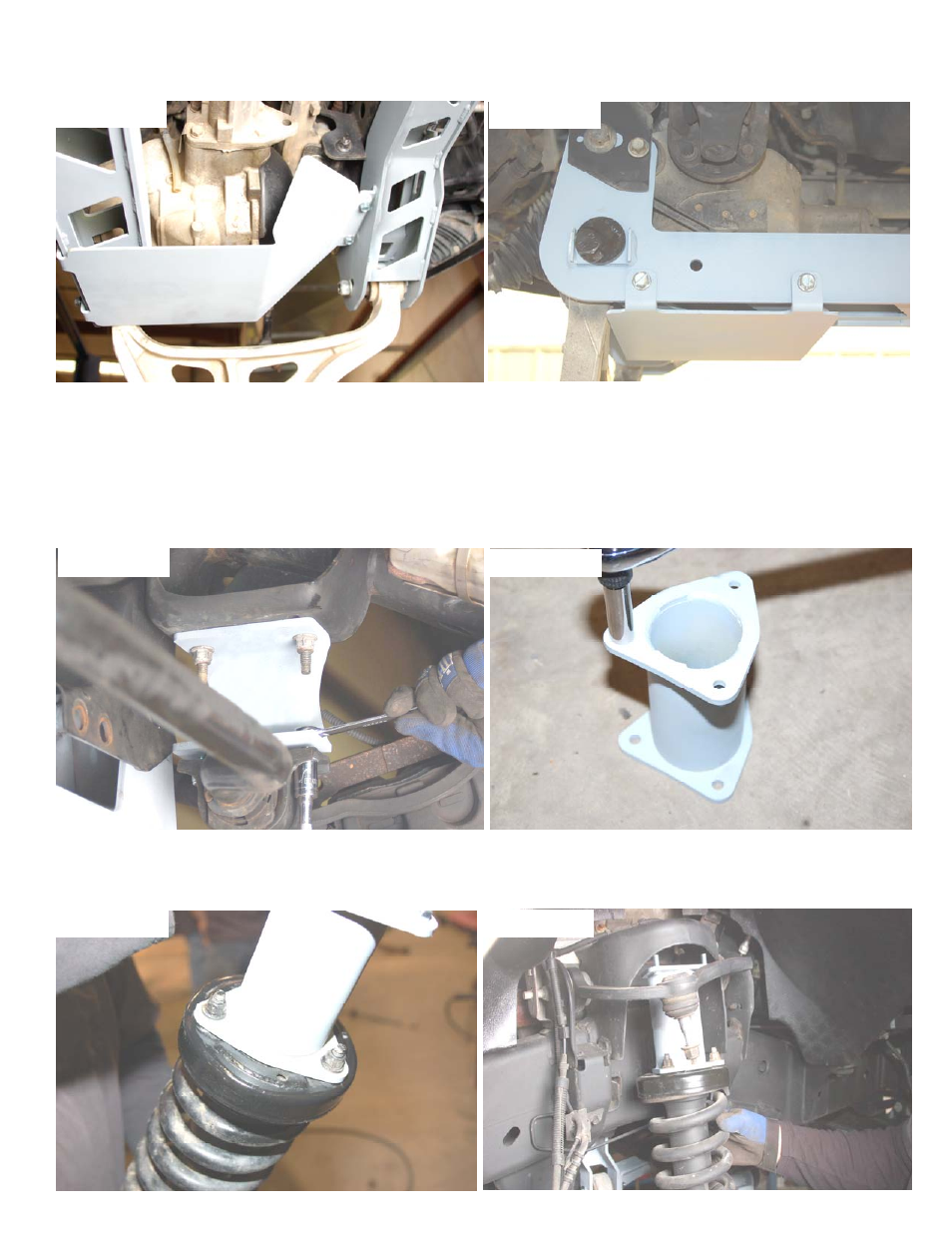

PHOTO 31
PHOTO 33 PHOTO 34
PHOTO 35 PHOTO 36
PHOTO 32
