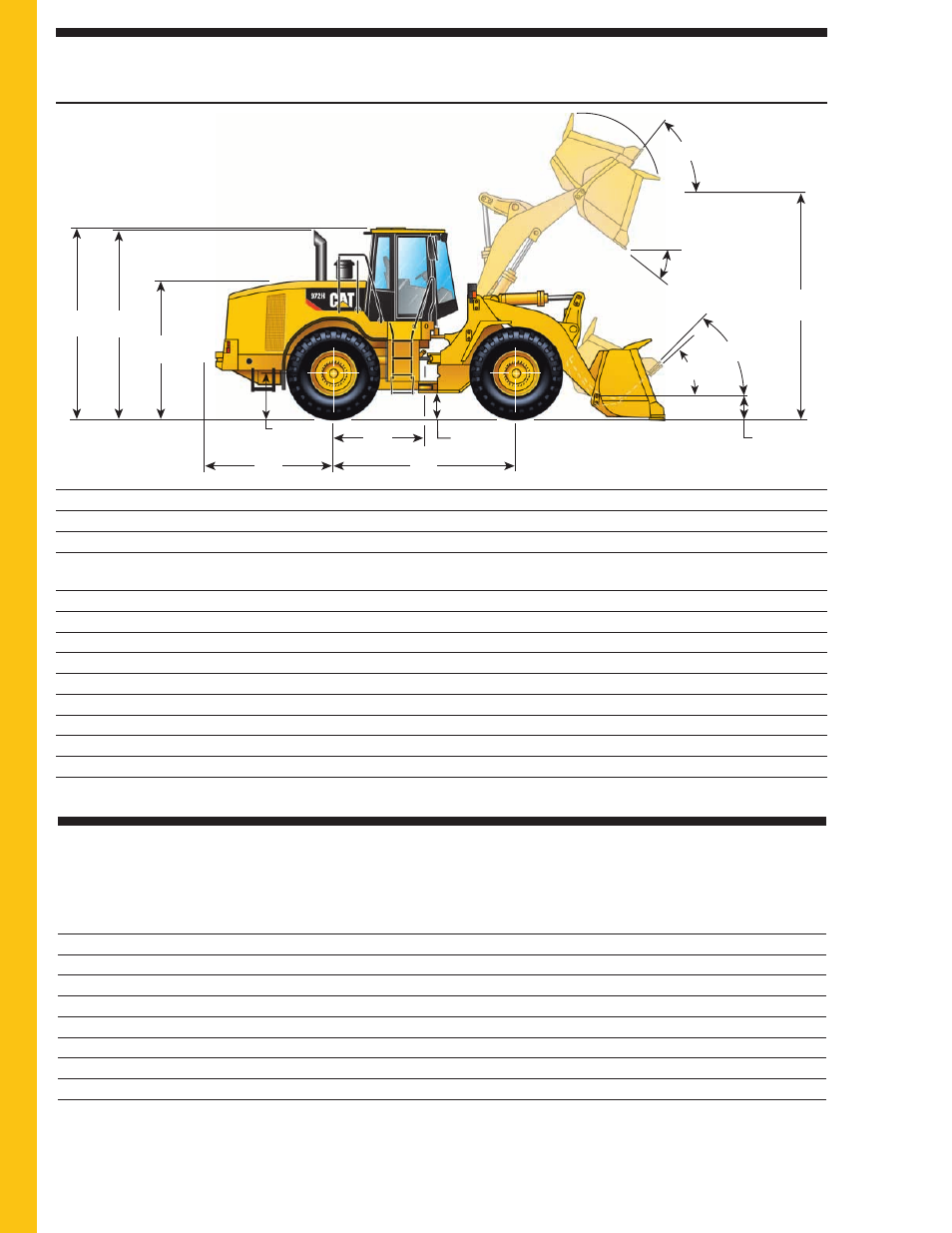

24 972H Wheel Loader specifications
1 Height to top of ROPS 3606 mm (11'10")
2 Height to top of exhaust pipe 3557 mm (11'8")
3 Height to top of hood 2683 mm (8'10")
4 Ground clearance with 26.5R25 L-4 Firestone
(see Tire Options chart for other tires) 496 mm (1'8")
5 B-Pin height 4466 mm (14'8")
6 Center line of rear axle to edge of counterweight 2461 mm (8'1")
7 Wheelbase 3450 mm (11'4")
8 B-Pin height @ carry 507 mm (1'8")
9 Center line of rear axle to hitch 1725 mm (5'8")
10 Rack back @ maximum lift 55
°
11 Dump angle @ maximum lift 51.6 °
12 Rack back @ carry 46.5 °
13 Rack back @ ground 41.1
°
14 Height to center line of axle 815 mm (2'8")
Dimensions
All dimensions are approximate.
mm inches mm inches kg lb kg lb
26.5R25 GP2B GY L2 Radial 3012 119 -20 -0.8 -82 -181 -57 -126
26.5R25 VMT BS L3 Radial 3015 119 -30 -1.2 48 106 -41 -90
26.5R25 RT3B GY L3 Radial 3017 119 -20 -0.8 -24 -53 -16 -35
26.5R25 XHA MX L3 Radial 3017 119 -20 -0.8 -34 -75 -24 -53
26.5R25 VSDL BS L5 Radial 2956 116 0 0.0 1214 2,677 847 1,868
750/65R25 MX L3 Radial Low Profile 3076 121 -20 -0.8 -262 -578 -64 -141
26.5-25 20 PR SRG FS L3 Bias 2992 118 -44 -1.7 -358 -789 -478 -1,054
26.5-25 20 PR SHRL GY L3 Bias 2974 117 -20 -0.8 7 15 -289
26.5-25 SRG DT FS LDL4 Bias 3002 118 0 0.0 0 0 0 0
Width over tires
Change in
vertical dimensions
Change in
operating weight
Change in static
tipping load
NOTE: Tread width for 26.5-25 is 2230 mm (7'4")
Tire Dimensions/Specifications
-131
