Milton CAT Z45-25J RT - Manual

-5 ft 0 ft 5 ft 10 ft 15 ft 20 ft 25 ft
-1.52 m 0 m 1.52 m 3.05 m 4.57 m 6.10 m 7.62 m
55 ft
16.76 m
50 ft
15.24 m
45 ft
13.72 m
40 ft
12.19 m
35 ft
10.67 m
30 ft
9.14 m
25 ft
7.62 m
20 ft
6.10 m
15 ft
4.57 m
10 ft
3.05 m
5 ft
1.52 m
0 ft
0 m
Z
TM
-45/25 RT & Z
TM
-45/25J RT
SELF-PROPELLED ARTICULATING BOOMS
MODELS Z TM -45/25 RT Z TM -45/25J RT
C
D
E
A
B
F
www.genieindustries.com

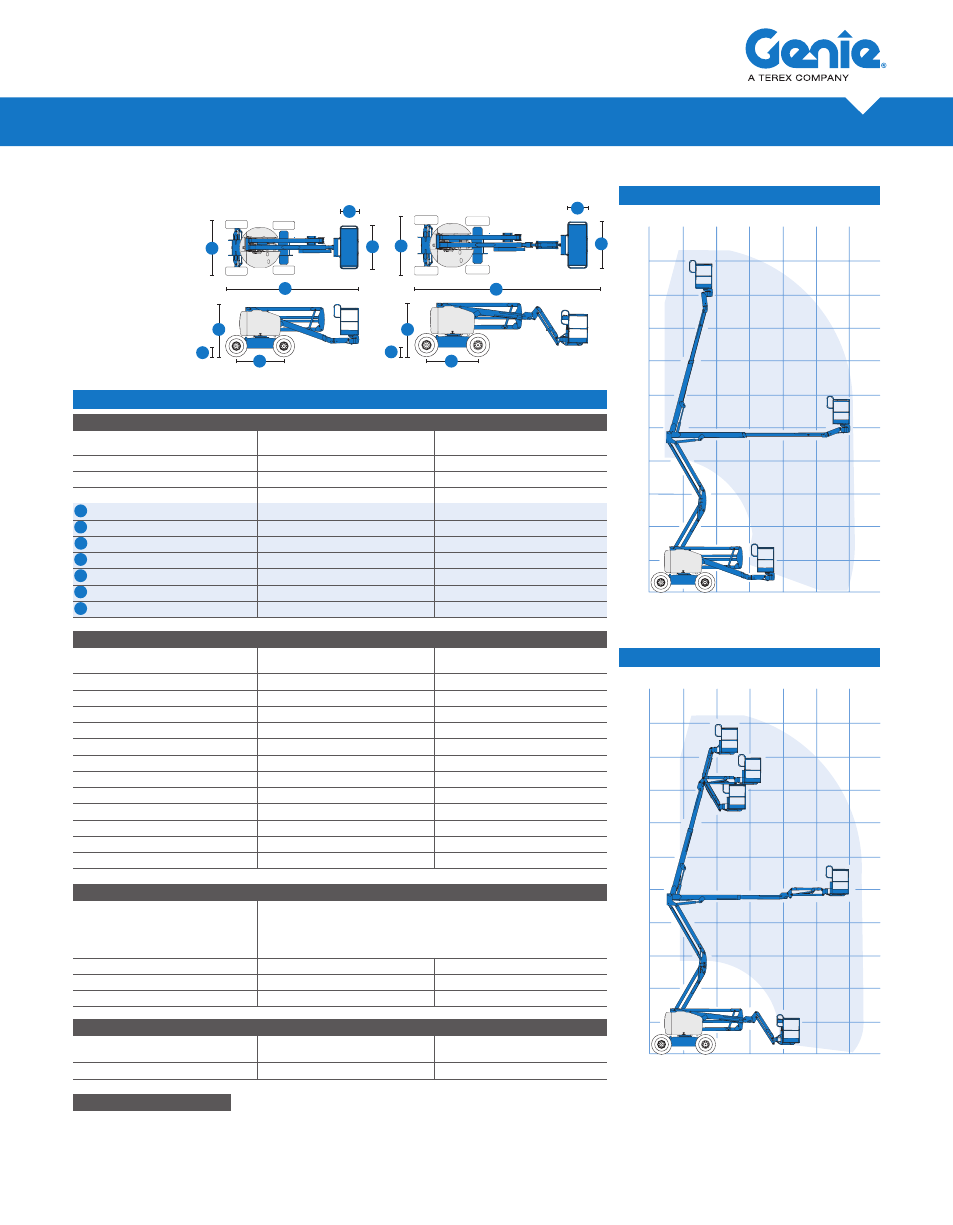

Specifications
* The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height.
** In lift mode (platform raised), the machine is designed to operate on firm, level surfaces only.
*** Gradeability applies to driving on slopes. See operator’s manual for details regarding slope ratings.
**** Weight will vary depending on options and/or country standards.
RANGE OF MOTION Z TM -45/25 RT
RANGE OF MOTION Z TM -45/25J RT
G
C
D
E
A
B
F
G
C
E
F
A
B
D
G
-5 ft 0 ft 5 ft 10 ft 15 ft 20 ft 25 ft
-1.52 m 0 m 1.52 m 3.05 m 4.57 m 6.10 m 7.62 m
55 ft
16.76 m
50 ft
15.24 m
45 ft
13.72 m
40 ft
12.19 m
35 ft
10.67 m
30 ft
9.14 m
25 ft
7.62 m
20 ft
6.10 m
15 ft
4.57 m
10 ft
3.05 m
5 ft
1.52 m
0 ft
0 m
134
MEASUREMENTS US Metric US Metric
Working height maximum* 51 ft 11 in 16.00 m 52 ft 2 in 16.07 m
Platform height maximum 45 ft 11 in 14.00 m 46 ft 2 in 14.07 m
Horizontal reach maximum 25 ft 7.62 m 25 ft 1 in 7.65 m
Up and over clearance maximum 23 ft 6 in 7.16 m 23 ft 6 in 7.16 m
Platform length 2 ft 6 in .76 m 2 ft 6 in .76 m
Platform width 6 ft 1.83 m 6 ft 1.83 m
Height - stowed 6 ft 11 in 2.11 m 6 ft 11 in 2.11 m
Length - stowed 18 ft 3 in 5.56 m 22 ft 5 in 6.83 m
Width 7 ft 6 in 2.29 m 7 ft 6 in 2.29 m
Wheelbase 6 ft 8 in 2.03 m 6 ft 8 in 2.03 m
Ground clearance - center 1 ft 3.5 in .39 m 1 ft 3.5 in .39 m
PRODUCTIVITY
Lift capacity 500 lbs 227 kg 500 lbs 227 kg
Platform rotation 180° 160°
Vertical Jib rotation — 135°
Turntable rotation 355° non-continuous 355° non-continuous
Turntable tailswing zero zero
Drive speed - stowed 5.0 mph 8.0 km/h 5.0 mph 8.0 km/h
Drive speed - raised ** 0.68 mph 1.1 km/h 0.61 mph 1.0 km/h
Gradeability - 2WD - stowed*** 30% 30%
Gradeability - 4WD - stowed*** 45% 45%
Turning radius - inside 5 ft 6 in 1.70 m 5 ft 6 in 1.70 m
Turning radius - outside 14 ft 9 in 4.50 m 14 ft 9 in 4.50 m
Controls 12 V DC proportional 12 V DC proportional
Tires 355/55 D625 355/55 D625
POWER
Power source Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW)
Deutz diesel D2011L03i 3 cylinder diesel 48 hp (35.8 kW)
Perkins diesel 404-D22 4 cylinder diesel 51 hp (38 kW)
Auxiliary power unit 12 V DC 12 V DC
Hydraulic tank capacity 24 gal 90.8 L 24 gal 90.8 L
Fuel tank capacity 17 gal 64.4 L 17 gal 64.4 L
WEIGHT****
2WD 13,675 lbs 6,203 kg 14,300 lbs 6,486 kg
4WD 13,875 lbs 6,294 kg 14,500 lbs 6,577 kg
STANDARDS COMPLIANCE ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
