9.1 Technical data
General data
Weight
approx. 150 g (0.33 lbs)
Ambient conditions
Ambient temperature
-15 … +70 °C (+5 … +158 °F)
Storage and transport temperature -40 … +80 °C (-40 … +176 °F)
Display and adjustment module
Display element
LC display with DOT matrix and backlight
Measured value indication
Ʋ Number of digits 5
Ʋ Size of digits W x H = 7 x 13 mm
Adjustment elements 4 keys
Protection rating
Ʋ unassembled IP 20
Ʋ mounted into the housing without
cover
IP 40
Materials
Ʋ Housing ABS
Ʋ Inspection window Polyester foil
9.2 Dimensions
27,6mm (1.09")
ø 66,3m
m
(2.61")
45,1mm
(1.78")
9,7mm
(0.38")

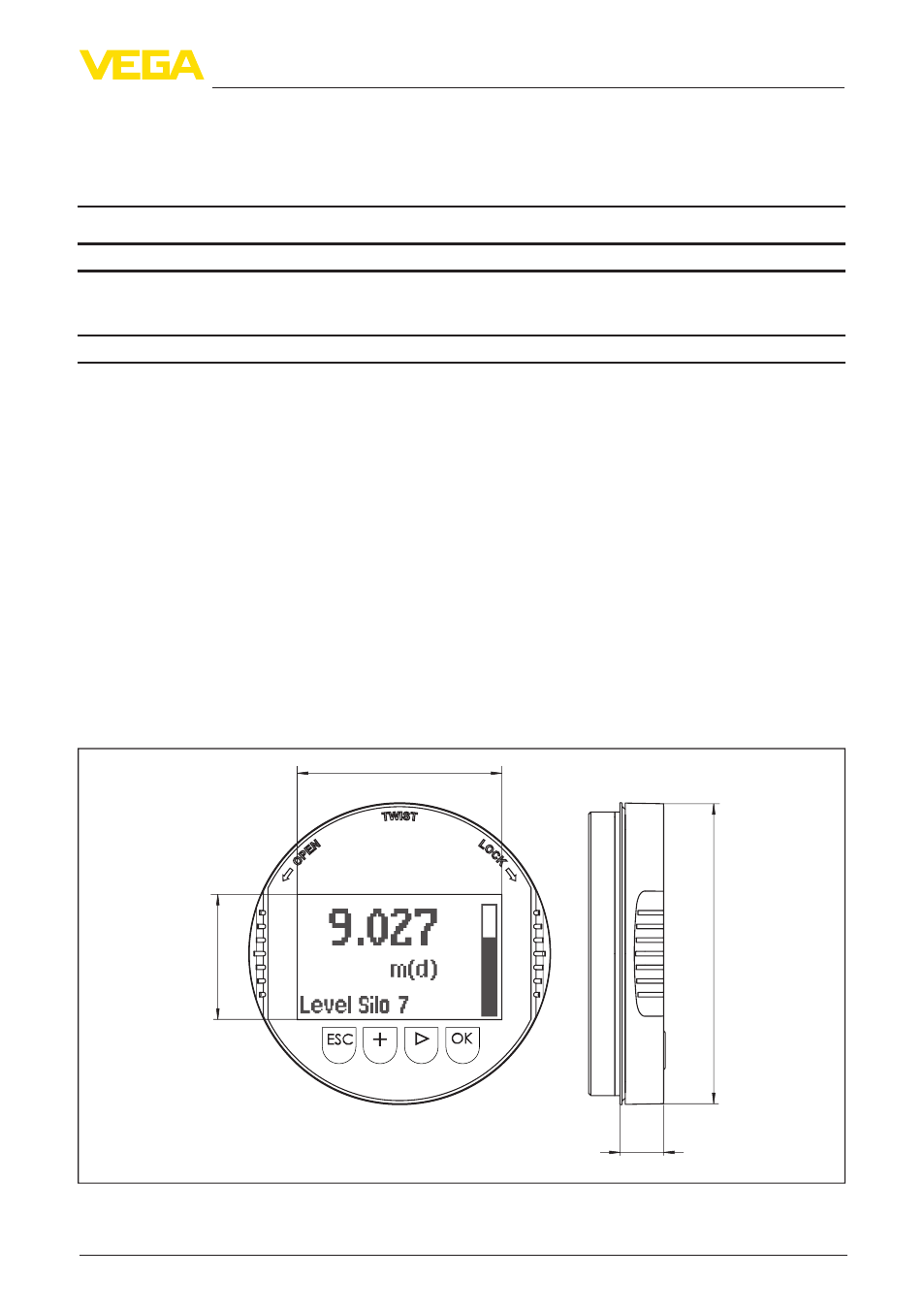

Fig. 9: Dimensions of display and adjustment module
