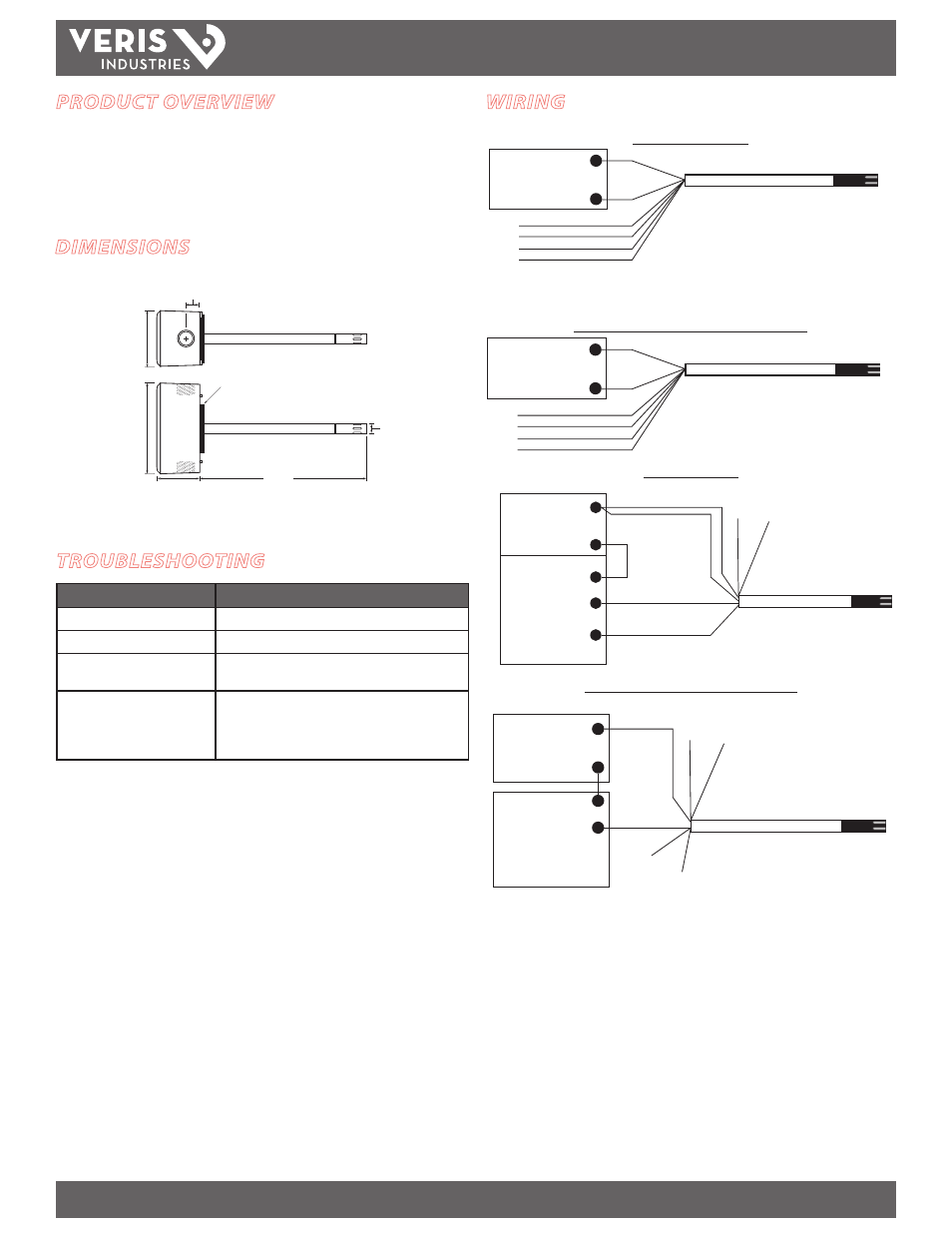

HD SERIES INSTALLATION GUIDE
PRODUCT OVERVIEW
The HD Series duct-mounted humidity sensors provide high accuracy humidity
monitoring with a fully replaceable HS element for easy field maintenance. NIST
certified accuracy and temperature sensing capability are available. The HD is
warranted for a period of five years.
TROUBLESHOOTING
Problem Solution
Filter tip does not fit on probe HS element is backwards; reverse element.
Unit reads approx. 4.5mA HS element is backwards; reverse element.
Unit reads 100% with new
replacement sensor
Unit must be unpowered when installing a new sensor;
interrupt sensor power to restart.
Accuracy appears incorrect · Remove HS element while powered and verify output
goes to full scale.
· Verify voltage test leads on 4-20mA models
corresponds to the 4-20mA output.
DIMENSIONS
2.9"
(74 mm)
4.6"
(117 mm)
2.0"
(51 mm)
0.7"
(18 mm)
Foam Gasket
2.5" x 2.5"
(62 mm x 62 mm)
8.5"
(216 mm)
0.5" Dia.
(13 mm.)
WIRING
0-5V/0-10V Versions
POWER SUPPLY
12 to 30 VDC/24 VAC
BLK
RED
BLUE 0-10V HUMIDITY
ORANGE 0-10V TEMP
GREEN 0-5V HUMIDITY
YELLOW 0-5V TEMP
–
+
NOTE: For 24 VAC transformer powered applications, one side of transformer secondary is
connected to common. Isolation transformer or dedicated power supply may be required.
0-5V/0-10V Versions with RTD/Thermistor
POWER SUPPLY
12 to 30 VDC/24 VAC
BLK
RED
BLUE 0-10V HUMIDITY
GREEN 0-5V HUMIDITY
ORANGE THERMISTOR
ORANGE THERMISTOR
–
+
4-20mA Versions
VDC
POWER SUPPLY
DIGITAL CONTROL
Temperature
4-20mA Return
(optional)
Humidity
4-20mA Return
BLUE
HUMIDITY
BLUE
HUMIDITY
White/Gray 0-1V
Test Leads for use
with voltmeter
ORANGE
TEMP
ORANGE
TEMP
+
–
–
4-20mA Versions with RTD/Thermistor
VDC
POWER SUPPLY
DIGITAL CONTROL
Temperature
4-20mA Return
(optional)
Humidity
4-20mA Return
BLUE
HUMIDITY
BLUE
HUMIDITY
White/Gray 0-1V
Test Leads for use
with voltmeter
ORANGE
Thermistor
ORANGE
Thermistor
+
–
–
