800.354.8556 +1 503.598.4564 www.veris.com

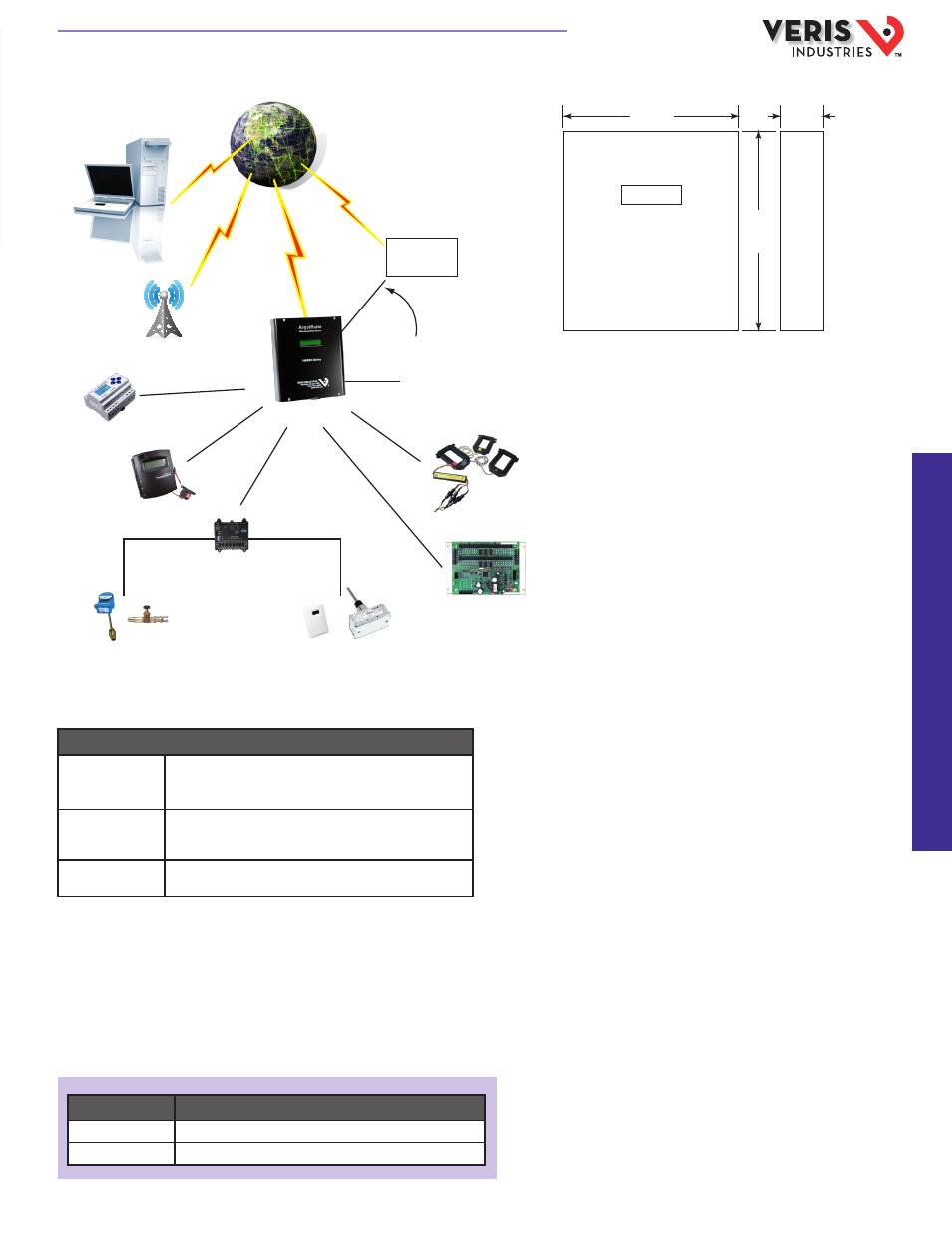

APPLICATION/WIRING EXAMPLES
MODEL DESCRIPTION
H8822 AcquiSuite Demand Response System: 8 Flexible I/O Inputs
H8822GSM AcquiSuite Demand Response System; GSM/GPRS cellular modem
THE ACQUISUITE SYSTEM ALLOWS...
...Internet Display of
Data Using the BMO
Website
View performance data in an easy graphical format.
Store, display, and download historical data in a secure SQL database. Design
custom views of data from one or more buildings or systems.
...Security and
Flexibility
Store data on board in nonvolatile memory.
Protect information in the event of a power failure.
Time-stamp all interval data with an on-board real-time clock.
...Compatibility with
Existing Systems
Use the I/O module to connect to existing sensors and meters.
Use TCP/IP protocols to interface with spreadsheets, databases, text files, etc.
DIMENSIONAL DRAWING
ORDERING INFORMATION
The Internet
BMO Webserver
AcquiSuite™
Server
H8036
Analog devices can
connect to on-board
H8923-4 as well
Dial-up PPP
PULSE DEVICES
(Gas/Water Meters)
A8332
Modbus Converter
ANALOG DEVICES
(Temperature, Humidity, Air Quality, etc.)
H81xx with
H8163-CB
Local Area
Network
Ethernet
4-20mA
Pulse
or
WAN
®
Cellular
(H8822GSM)
Analog
E3x
E5xCx
8.2 in
(209 mm)
2.0 in
(51 mm)
9.3 in
(77 mm)
HQ0001803.B 01131
