VERIS INDUSTRIES
800.354.8556 +1 503.598.4564 www.veris.com
FEATURES
● Sleek field enclosure reduces the need for panel space
● The nipple mount feature allows the Victory Series to be mounted to any
electrical enclosure
● Flexible tinned stranded wire...fits easily in tight spaces and provides secure
connections to wire nuts
● UL508 Listed...designed and listed for field installation... makes electrical
inspection a snap
DESCRIPTION
The Victory 320 and 420 DPDT power duty enclosed relays combine industrial
strength and ease of use. With the nipple mount enclosure, installation could not
be easier. The V320/V420 need no dedicated field enclosure, so they are the ideal
retrofit devices. One coil input controls the state of two power rated contacts for
the simultaneous control of two devices or both poles of a single-phase circuit,
e.g. motor loads. Field-selectable high and low voltage coil inputs provide
on-site versatility.
APPLICATIONS
● Command contactors
● Control motors
● Isolation
● Device interlocking
●
Relay logic
● Sense voltages for alarm conditions
● Control fractional HP motors
SPECIFICATIONS
Operating Temperature Range -40° to 40°C (-40° to 104°F)
Operating Humidity Range 10-90% RH non-condensing
Expected Relay Life Electrical (@ rated current) 100,000 cycles; Mechanical (unpowered) 10,000,000 cycles
Relay Status LED ON=energized
Wire Specifications:
Lead Length 14” (356 mm) min.
Gauge UL1015; Coil: 18 AWG; Contacts: 12 AWG; HOA monitor wires: 16 AWG
Insulation Class 277VAC RMS
Agency Approvals UL 508

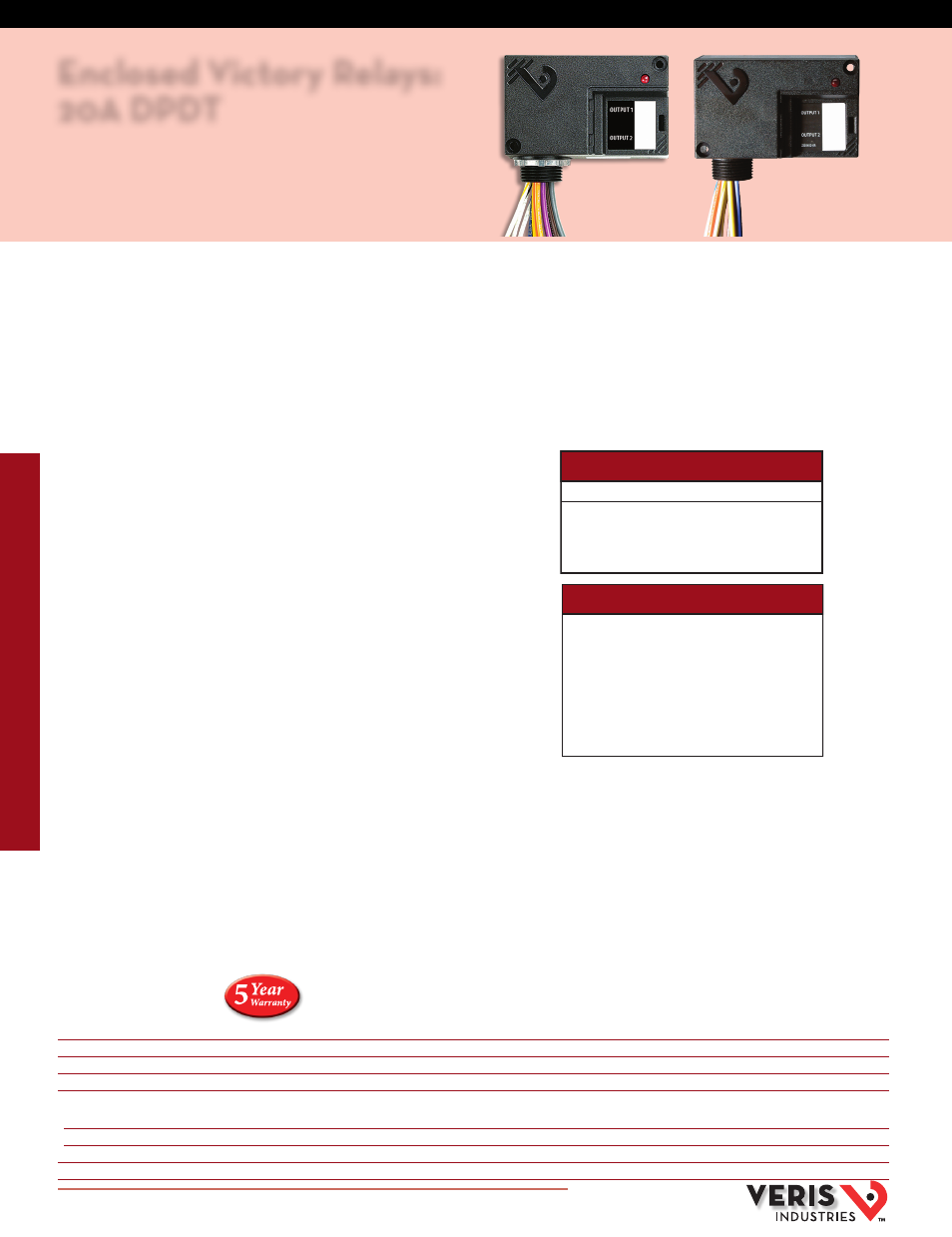

Enclosed Victory Relays:
20A DPDT
DPDT Relays Provide Versatility
V320 V420
Voltage Coil Current
AC DC
24V..........................................150mA 64mA
120V....................................... 84mA -
277V........................................ 102mA -
TYPICAL COIL PERFORMANCE
CONTACT RATINGS
Resistive............... 20A@277VAC, 28VDC
Motor.................... 120VAC, 1HP
277VAC, 2HP
Pilot Duty............. A300
Ballast.................. 20A@277VAC N.O
10A@277VAC N.C.
Tungsten............... 10A@120VAC N.O.
2A@120VAC N.C.
VICTORY 320 & 420
HQ0001842.B 01131
