AA01 INSTALLATION GUIDE
FOR ANY CO
2
DEVICE WITH
RECTANGULAR SENSOR
PREPARATION
1. Ensure that the unit to be calibrated is properly installed and has been operating
for at least one hour.
2. Use only Veris Industries calibration kit model AA01. Perform the zero calibration
with nitrogen gas. Use a flow regulator to limit gas flow to <0.25 liter/minute.
Exceeding this flow rate may cause calibration errors.
SETUP
1. Connect tubing to the regulator and screw the regulator on the gas bottle.
2. Remove the front cover from the unit and locate the plastic barb fitting and the
menu push-button. A label indicating push-button functions is located inside
front cover plate.

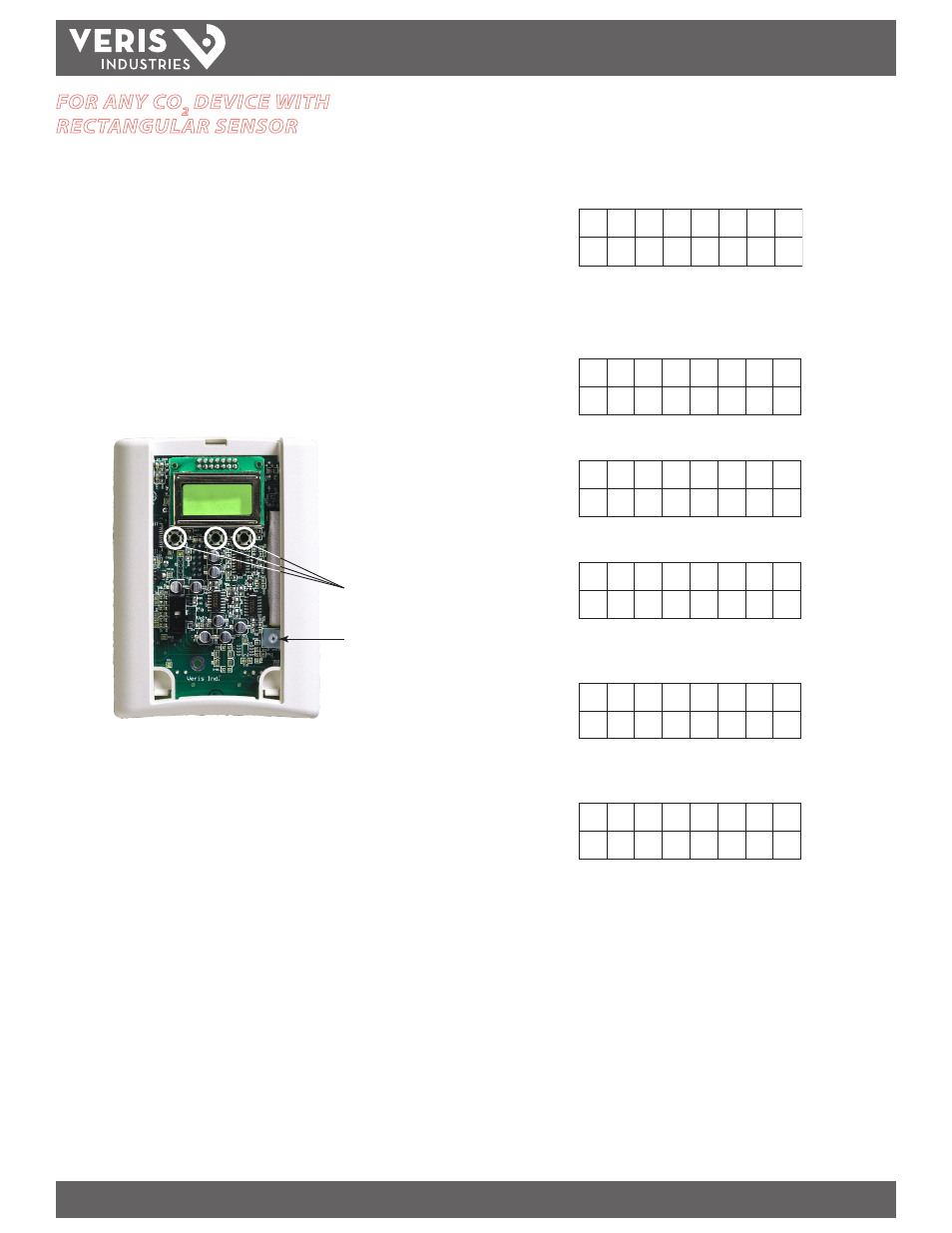

Hose Barb
Menu Buttons
3. Attach tubing firmly to the barb fitting.
4. Follow the calibration directions for your device.
CX/CWL/CDL CALIBRATION
1. Press ENTER to enter configuration mode.
2. Press ENTER repeatedly until the CO2 CAL menu option appears on the display.
C C 2
E S Y
O
* N O
L A ?
3. Press + to select the YES option.
4. Using the +/- buttons, select the ZERO calibration option. Press ENTER to
continue. The AA01 kit includes nitrogen gas for zero calibration only.
E
P A
R
S N
Z * O
5. Verify the display indicates 0 ppm gas concentration. Press ENTER to continue.
E
P P
R
0 M
Z O G A S
6. Look for the display to prompt gas flow.
O
S T
W
A
L F
* G
R
A
T S
Open the regulator valve and adjust pressure to 7 psi to generate the appropriate
flow rate. Press ENTER to begin the countdown timer.
L
4 2
T
0
A C
* I
S
M
E C
E
7. Wait for the countdown timer to reach zero and for the display to indicate the
calibration is complete.
N
T O P
O D
S G A S
E
8. Close the regulator valve and disconnect tubing from the unit. Press ENTER to
return to normal operation.
9. Replace the sensor cover.
CDE/CWE CALIBRATION
1. Start flowing (nitrogen) 0 ppm CO
2
gas.
2. Push and hold down the calibration button until the red LED illuminates.
3. Continue flowing gas through the sensor until the red LED turns off.
4. Close the regulator valve and disconnect tubing from the unit.
5. Replace the sensor cover.
