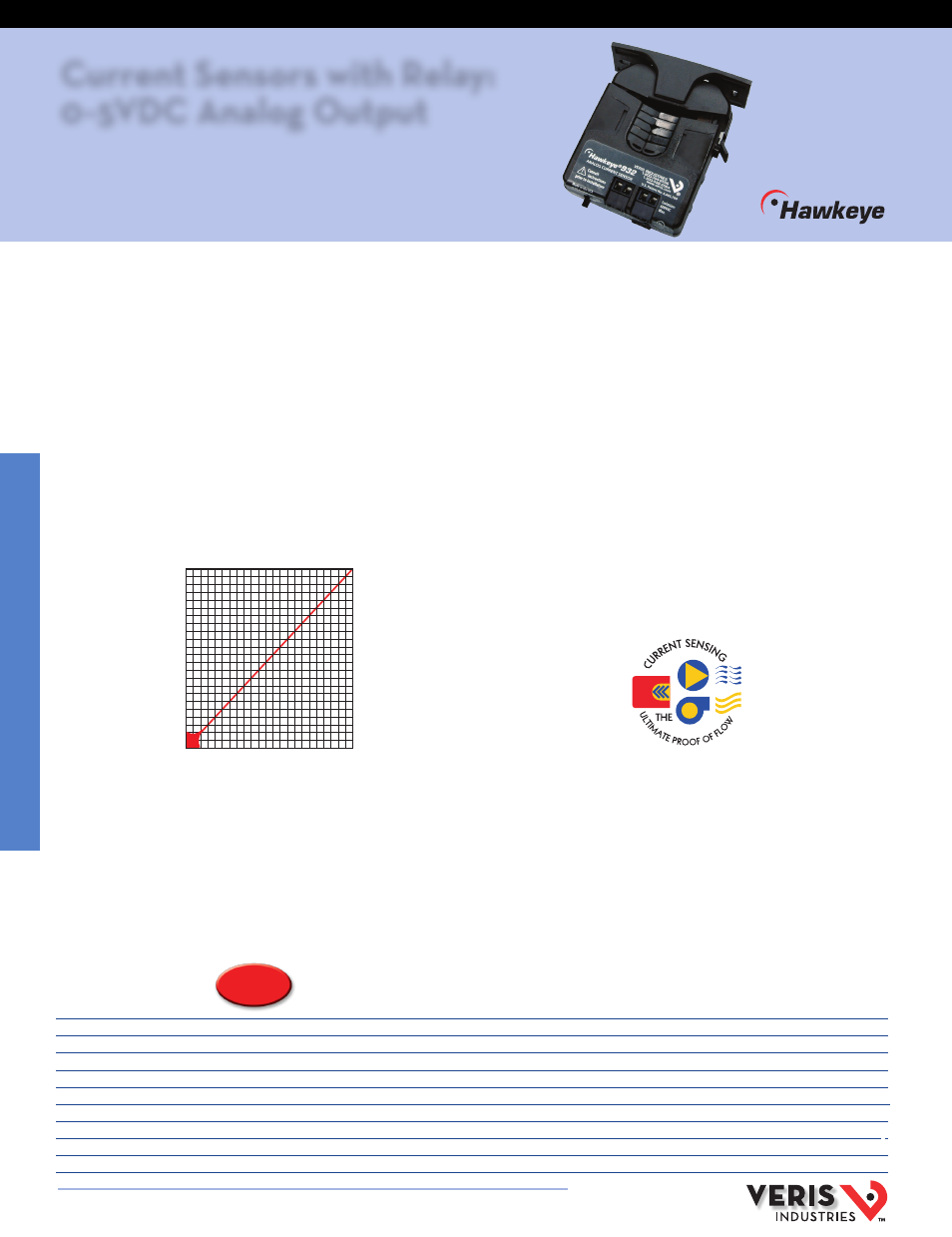

DESCRIPTION
The Hawkeye 932 and H952 Series provide accurate load trending information
with a proportional 0-5VDC output signal. This feature combined with an integrated
command relay makes these products ideal for start/stop and status monitoring
of motors.
The relay is fully isolated from the current sensor, and all relay connections are
externally available for maximum flexibility.
APPLICATIONS
●
Load trending
●
Motor control
●
Fan/Pump status
FEATURES
●
Self-powered analog current sensor with integral start/stop command relay
●
Reduces the number of installed components... saves time and space
●
Self-gripping split-core for fast retrofit installation...no need to remove
conductor
●
One device to install for start/stop and status...reduces installation charges
●
No external power required for current sensor
●
Selectable factory calibrated ranges up to 120A for increased flexibility
and resolution
●
Factory calibrated switch-selectable ranges (30/60/120A) for high resolution
and installation ease
●
No jumpers on unit...reduces installation error
●
Removable mounting bracket for installation flexibility
●
Bracket can be installed in three different configurations...added flexibility
●
Command relay switches up to 5A@250VAC
●
5-year warranty
SENSED AMPS
30/60/120A*
0V
0A
5V
SENSOR OUTPUT
*Factory calibrated ranges selected
with the amperage range switch
Load Trending And Control
Relay In One Package
H932/952 LINEAR OUTPUT
Scale software as shown
Maximize Reliability
Minimize Installed Cost
SPECIFICATIONS
Sensor Power
Induced from monitored conductor
Insulation Class
600VAC RMS
Frequency Range
50/60 Hz nominal
Temperature Range
-15° to 60°C (5° to 140°F)
Humidity Range
10-90% RH non-condensing
Accuracy
±2% F.S. from 10% to 100% (selected range)
Response Time
2 sec.
Terminal Block Wire Size
24-14 AWG (0.2 to 2.1 mm
2
)
Terminal Block Torque
3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)
Agency Approvals
UL 508 open device listing; CE: EN61010-1:2001-2, CAT III, pollution degree 2, basic insulation
Current Sensors with Relay:
0-5VDC Analog Output
Year
Warranty
5
H932
H932 & H952
