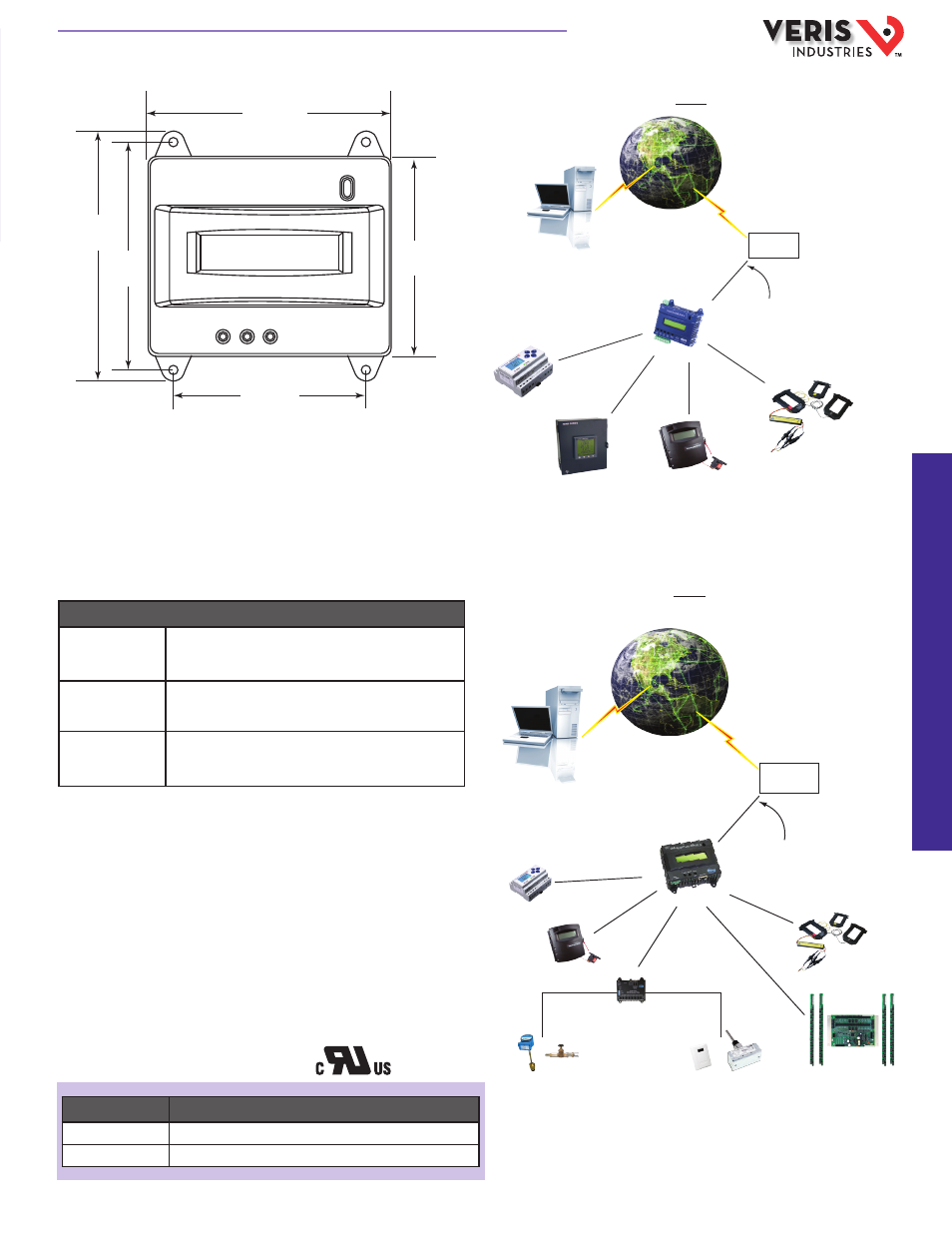

DIMENSIONAL DRAWING APPLICATION/WIRING EXAMPLES
ORDERING INFORMATION
The Internet
BMO Webserver
AcquiSuite™
A8810
Server
Local Area
Network
Ethernet
WAN
®
H8036
PULSE DEVICES
(Gas/Water Meters)
A8332
Modbus Converter
ANALOG DEVICES
(Temperature, Humidity, Air Quality, etc.)
H81xx with
H8163-CB
Pulse Analog
E30
E5xCx
THE ACQUISUITE SYSTEM ALLOWS...
...Internet Display of
Data Using the BMO
Website
View performance data in an easy graphical format.
Store, display, and download historical data in a secure SQL database.
Design custom views of data from one or more buildings or systems.
...Security and
Flexibility
Store data on board in nonvolatile memory.
Protect information in the event of a power failure.
Time-stamp all interval data with an on-board real-time clock.
...Compatibility
with Existing
Systems
Use the I/O module to connect to existing sensors and meters.
Use TCP/IP protocols to interface with spreadsheets, databases, text files,
etc. (A8810 only)
3.4”
(86 mm)
3.9”
(99 mm)
4.25”
(108 mm)
3.25”
(83 mm)
4.1”
(105 mm)
MODEL DESCRIPTION
A7810 AcquiLite EMB data acquisition server, pulse input
A8810 AcquiSuite EMB data acquisition server, Modbus serial input
The Internet
BMO Webserver
AcquiSuite™
A7810
Server
Local Area
Network
Ethernet
WAN
®
H8050 Series
Enercept Self-Contained
Split-Core kWh Transducer
H8163
Enhanced Data
Stream Energy
Meter H8453
Power Meter
Pulse
Output
Pulse
Output
Pulse
Output
Pulse
Output
E5xBx
Energy Meter
A7810
A8810
HQ0001804.A 01121
