Installation Guide
Current Monitoring
H952
TM

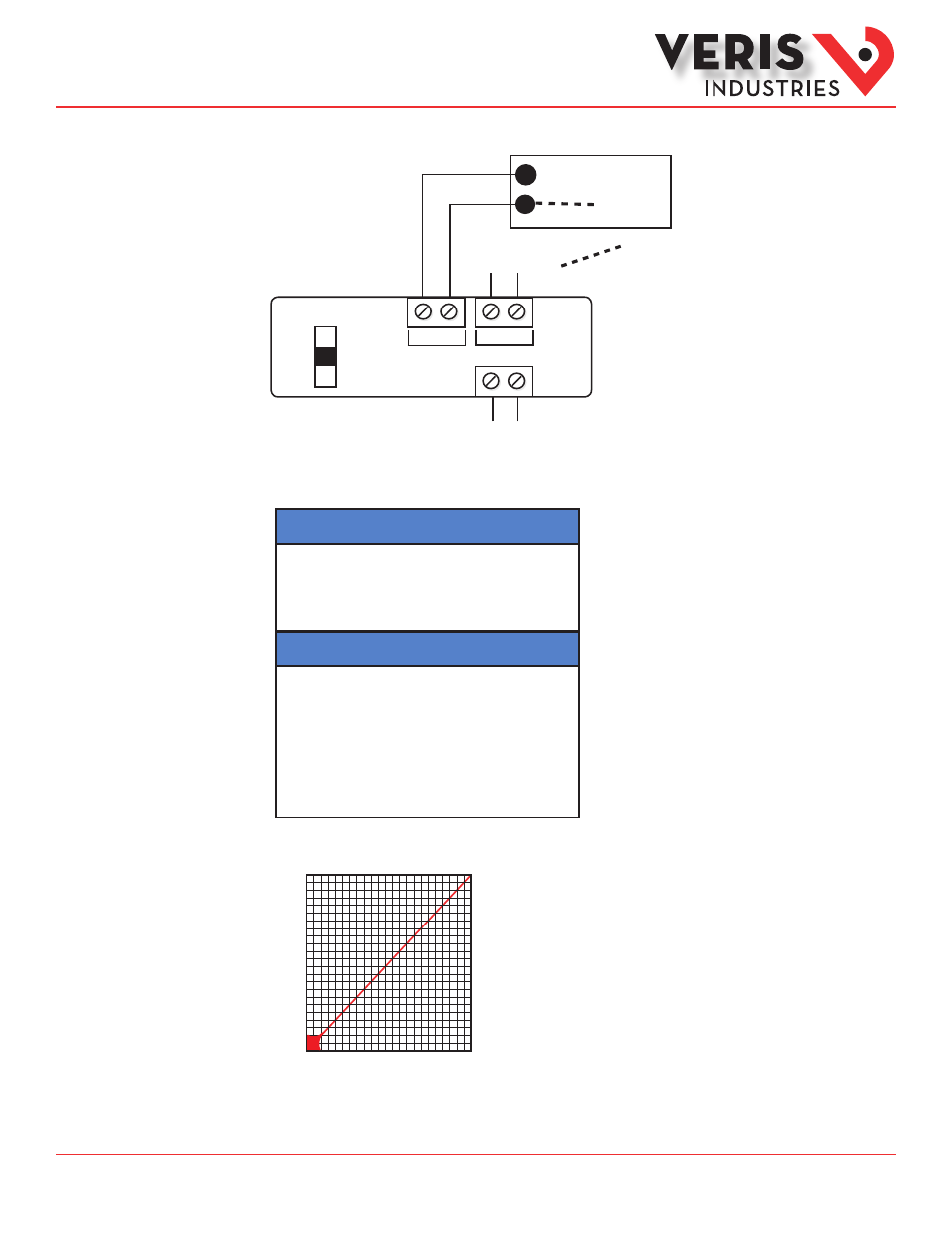

Wiring
Scaling
SENSED AMPS
30/60/120A*
0V
0A
5V
SENSOR OUTPUT
*Factory calibrated ranges selected
with the amperage range switch
(Comm)
-
Automation Panel
+
0-5 VDC Input
Amperage Range
+
120
60
30
Output
0-5 VDC
N.O. Command Relay Output
9-12 VDC
To Energize Relay
- +
Relay Information
AC
DC
24 ......................................................
....................................................................
15mA
20mA
15mA
12
TYPICAL COIL PERFORMANCE
Resistive........ 5A@240
5A@30
VAC
Inductive........ 2A@240
2A@30
VAC
VDC
VDC
CONTACT RATINGS (N.O.)
RELAY
Voltage
Pull In Voltage
12VDC .............................................................. 8.4VDC
Drop Out Voltage
12VDC .............................................................. 3.0VDC
