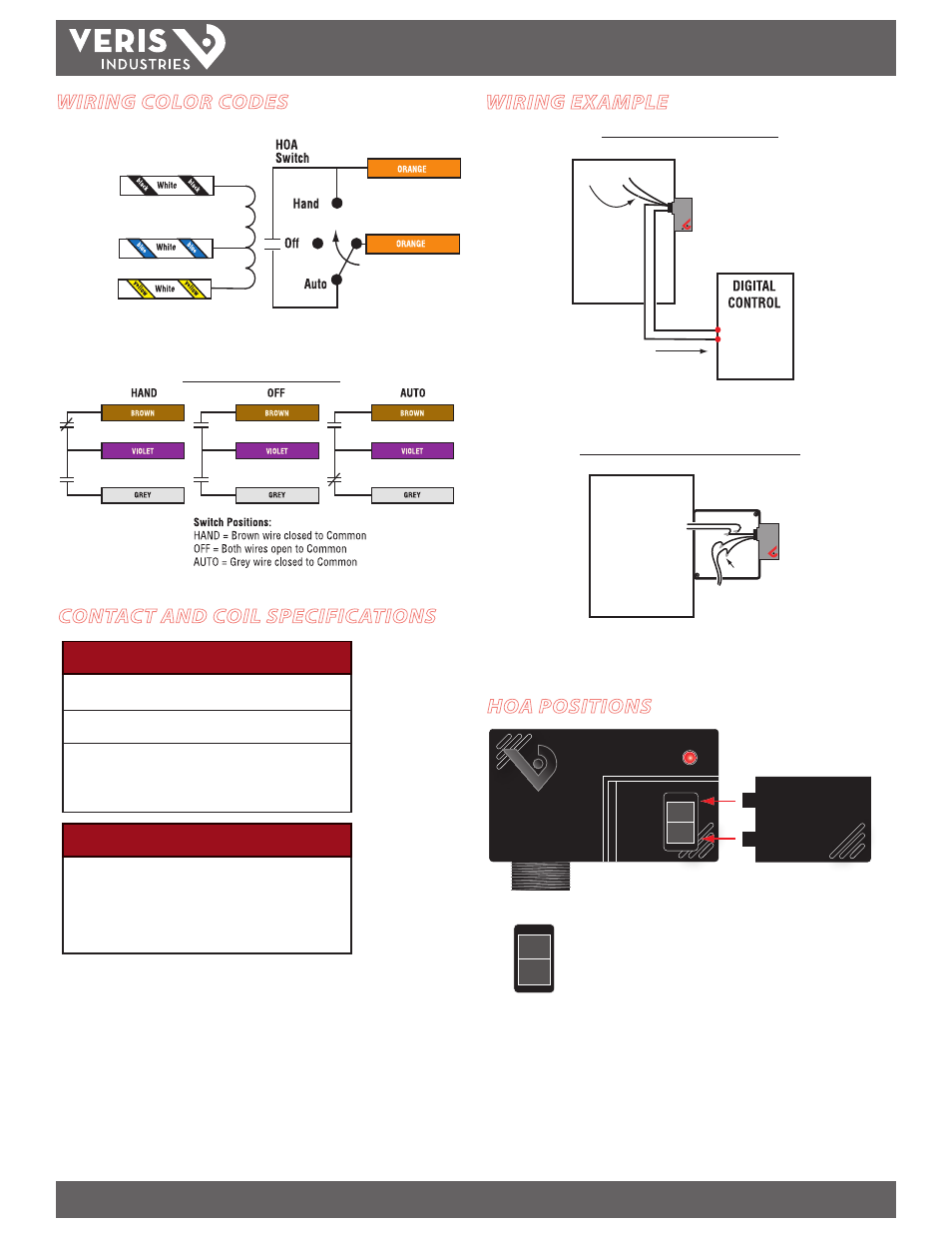

V123 INSTALLATION GUIDE
WIRING COLOR CODES
CONTACT AND COIL SPECIFICATIONS
24VAC/DC
120VAC
LOW
wht/blue
COMM
wht/yellow
HI
wht/black
CONTACT OUTPUT CONTROL SYSTEM INPUT
Common
HOA POSITIONS
WIRING EXAMPLE
Nipple mount directly to a panel
Nipple mount to a 2x or 4x electrical box
To Load
To Controls
COIL
CONT
ACTS
To Load
To Controls
Wire
Nut
CO
IL
CONTACTS
HAND
OFF
AUTO Up position: contacts are closed.
Middle position: contacts are open.
Down position: control system actuates the contacts.
Coil Voltage 24VAC/DC, 120VAC
Voltage Coil Current
AC DC
24V.................... 75mA.................... 32mA
120V.................... 22mA –
TYPICAL COIL PERFORMANCE
CONTACT RATINGS
Resistive..... 20A(r)@240VAC
8A@28VDC
14A@14VDC
Motor......... 250VAC, 1HP N.O. & N.C.
Digital HOA Position Monitor
