Enclosed victory relays: 20a dpst, with hoa switch, Hoa switch provides local control, Typical coil performance contact ratings

REL
AY
S
VERIS INDUSTRIES
800.354.8556
+1 503.598.4564
www.veris.com
FEATURES
●
Sleek field enclosure reduces the need for panel space
●
Versatile coil and contact ratings minimize the number of models to choose
●
The nipple mount feature allows the Victory series to be mounted to any
electrical enclosure
●
Flexible tinned stranded wire...fits easily in tight spaces and provides secure
connections to wire nuts
●
UL508 Listed...designed and listed for field installation...makes electrical
inspection a snap
●
Products include a cover that conceals and protects the HOA switch, reducing
the likelihood of tampering
●
Limit costly control system override and service calls
●
Separate HOA switch per output...local control of both outputs
DESCRIPTION
The Victory 321 and 421 DPST power duty enclosed relays combine an industrial-
strength relay with installation flexibility...use the nipple mount to attach to
any enclosure. One coil input controls the state of two power-rated contacts for
simultaneous control of two devices or both poles of a single-phase load. Each
output is enabled with a Hand-Off-Auto switch for local control. The Victory series
does not require a dedicated field enclosure, so it is ideal for retrofit projects.
Field-selectable high and low voltage coil inputs provide on-site versatility.
APPLICATIONS
●
Command contactors
●
Control motors
●
Isolation
●
Device interlocking
●
Relay logic
●
Sense voltages for alarm conditions
●
Control fractional HP motors
SPECIFICATIONS
Operating Temperature Range
-40° to 40°C (-40° to 104°F)
Operating Humidity Range
10-90% RH non-condensing
Expected Relay Life
Electrical (@ rated current) 100,000 cycles; Mechanical (unpowered) 10,000,000 cycles
Relay Status
LED ON=energized
Wire Specifications:
Lead Length
14” (356 mm) min.
Gauge
UL1015; Coil: 18 AWG; Contacts: 12 AWG; HOA monitor wires: 16 AWG
Insulation Class
277VAC RMS
Agency Approvals
UL 508

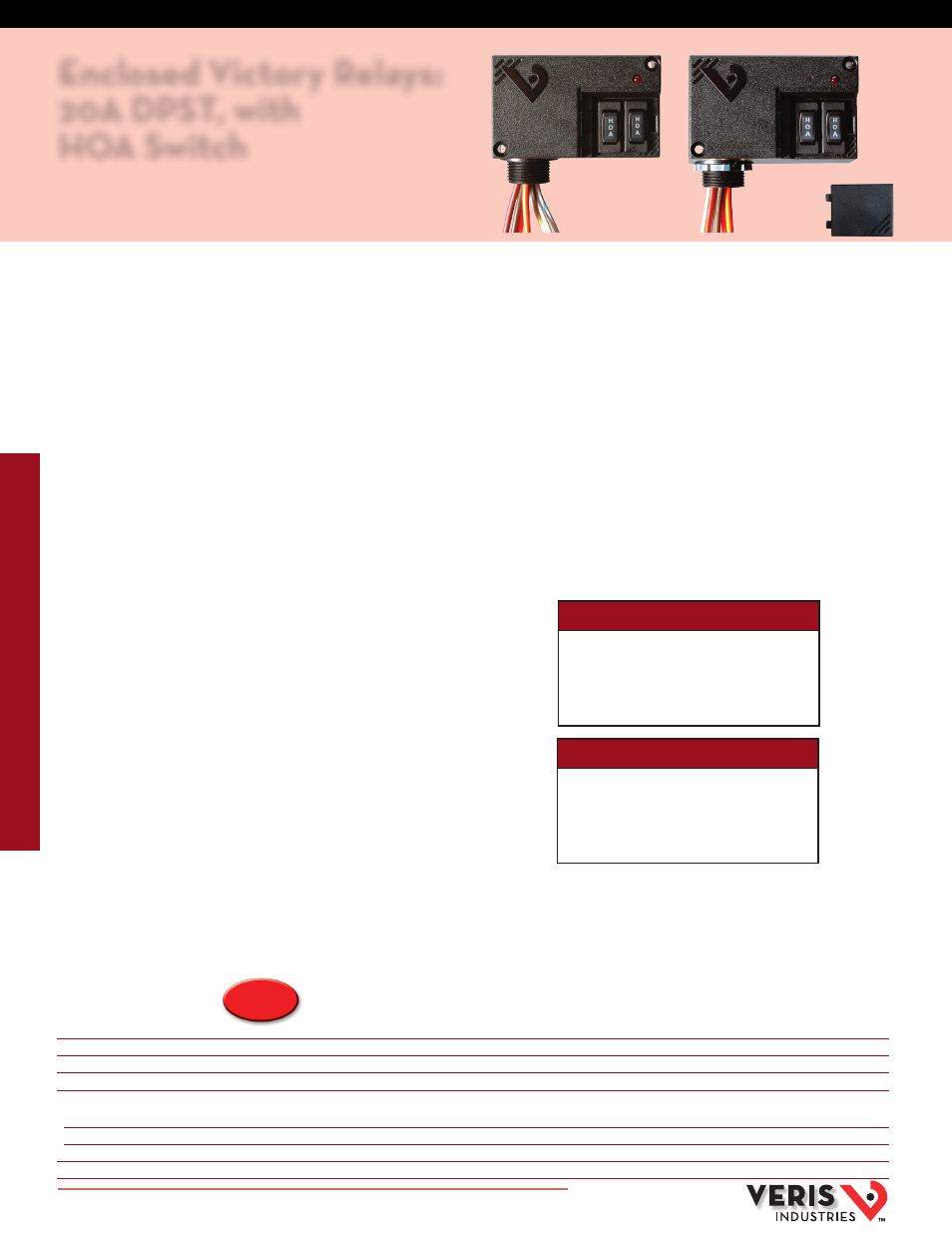

Enclosed Victory Relays:
20A DPST, with
HOA Switch
Year
Warranty
5
HOA Switch Provides
Local Control
V421
V321
Cover conceals
HOA switch
Voltage
Coil Current
AC
DC
24V.......................................... 120mA 64mA
120V........................................ 84mA
-
277V........................................ 102mA -
TYPICAL
COIL PERFORMANCE
CONTACT RATINGS
Resistive.............. 20A@240VAC
8A@28VDC
14A@14VDC
Motor.................... 120VAC, 1HP
VICTORY 321 & 421
