800.354.8556 +1 503.598.4564 www.veris.com

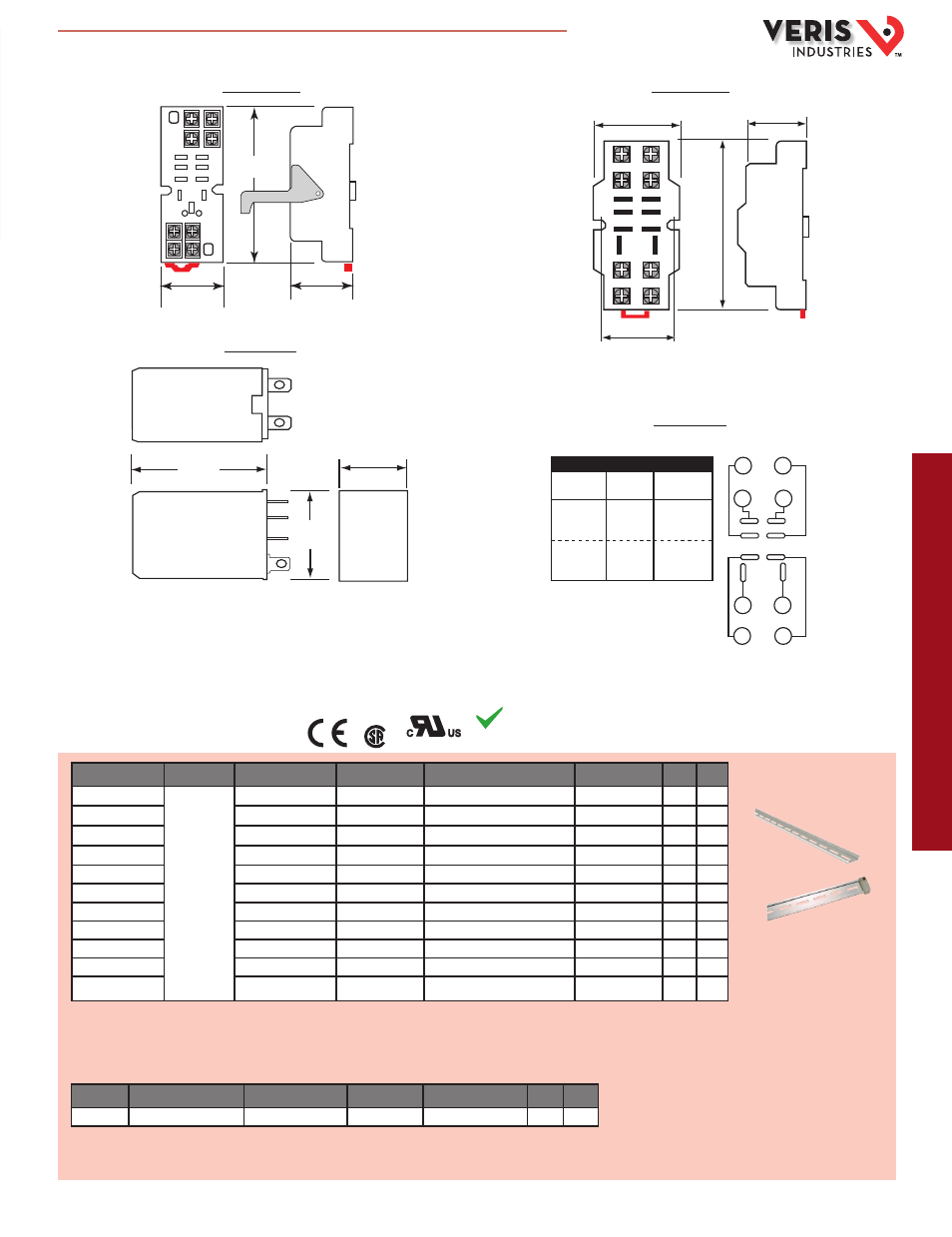

DIMENSIONAL DRAWINGS
1.2"
(30mm)
1.2"
(30mm)
2.0"
(51mm)
1.0"
(25 mm)
1.1"
(28mm)
3.1"
(79mm)
1.2"
(30mm)
These relays are UL Listed, when used with the Veris sockets.
MODEL RELAY TYPE AMPERAGE RANGE COIL VOLTAGE MIN. SWITCHING CURRENT FULL FEATURED UL CE
VMD2B-C12D
DPDT
15A 12VDC 100mA@5VDC n n
VMD2B-C24D 15A 24VDC 100mA@5VDC n n
VMD2B-C24A 15A 24VAC 100mA@5VDC n n
VMD2B-C120A 15A 120VAC 100mA@5VDC n n
VMD2B-F12D 15A 12VDC 100mA@5VDC n n n
VMD2B-F24D 15A 24VDC 100mA@5VDC n n n
VMD2B-F24A 15A 24VAC 100mA@5VDC n n n
VMD2B-F120A 15A 120VAC 100mA@5VDC n n n
VMD2B-F240A 15A 240VAC 100mA@5VDC n n n
VMD2B-24SVAC 3A/10A 24VAC 3mA@17VDC/100mA@5VDC n n n
VMD2B-120SVAC 3A/10A 120VAC 3mA@17VDC/100mA@5VDC n n n
MODEL AMPERAGE RATING VOLTAGE RATING FINGER SAFE HOLD DOWN CLIP UL CE
VBD2B-F 20 A 300 V n n n n
0.9”
(23 mm)
1.4”
(35 mm)
1.1”
(28 mm)
When relays and sockets are used together, amperage rating is the lesser of the two ratings.
ACCESSORIES
DIN Rail, Stop Clip (AV01, AV02)
4
8
6 5
7
2 1
3
TOP VIEW
Coil (+)**
Coil (-)**
COMM1
N.O.1
N.C.1
COMM2
NO.2
N.C.2
Terminal
8
7
5
3
1
6
4
2
Function
8(44) 5(14)
4(42) 1(12)
NEMA (IEC)
14 (A2)
13 (A1)
9 (11)
5 (14)
1 (12)
12 (41)
8 (44)
4 (42)
9(11) 12(41)
13 (A1) 14 (A2)
APPLICATION/WIRING EXAMPLE
VBD2B Sockets
VBD2B-F Socket VBD2B-C Socket
VMD2B Relays
** Observe polarity for relays with
DC coil voltages only
ORDERING INFORMATION
SOCKET ORDERING INFORMATION
RoHS
Compliant E198454
AV01
AV02
HQ0001852.B 01131
