V321 INSTALLATION GUIDE

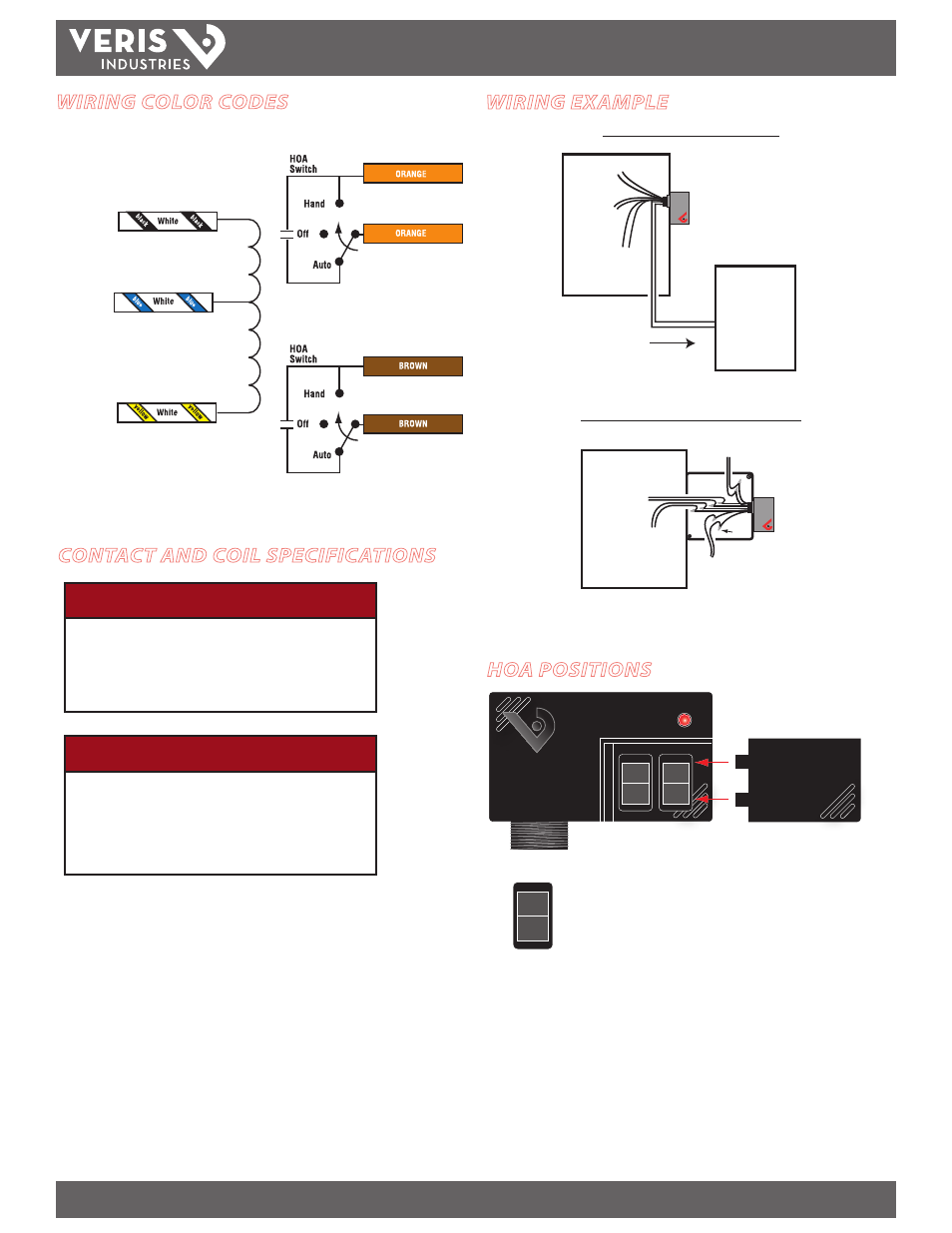

WIRING COLOR CODES
CONTACT AND COIL SPECIFICATIONS
120VAC
LOW
wht/blue
COMM
wht/yellow
HI
wht/black
CONTACT OUTPUT #1 N.O.
CONTACT OUTPUT #2 N.O.
CONTROL SYSTEM INPUT
Common
24VAC/DC
Voltage Coil Current
AC DC
24V.......................................... 120mA 64mA
120V........................................ 84mA -
TYPICAL COIL PERFORMANCE
CONTACT RATINGS
Resistive............................ 20A@240VAC
8A@28VDC
14A@14VDC
Motor.................................. 120VAC, 1HP
WIRING EXAMPLE
Nipple mount directly to a panel
Nipple mount to a 2x or 4x electrical box
* Isolate any unused wires, e.g. wire nut.
To Load A
To Controls
CONTROL
PANEL
COIL
To Load B
To Power
COM
N.O.
N.C.
To Load B
To Control
Wire
Nuts CO
IL
CONTACTS
To Load A
To Power
N.C.
N.O.
COM
HOA POSITIONS
HAND
OFF
AUTO Up position: contacts are closed.
Middle position: contacts are open.
Down position: control system actuates the contacts.
Relay 2 Relay 1
