Installation Guide
Current Sensors
H221/H221SP
TM

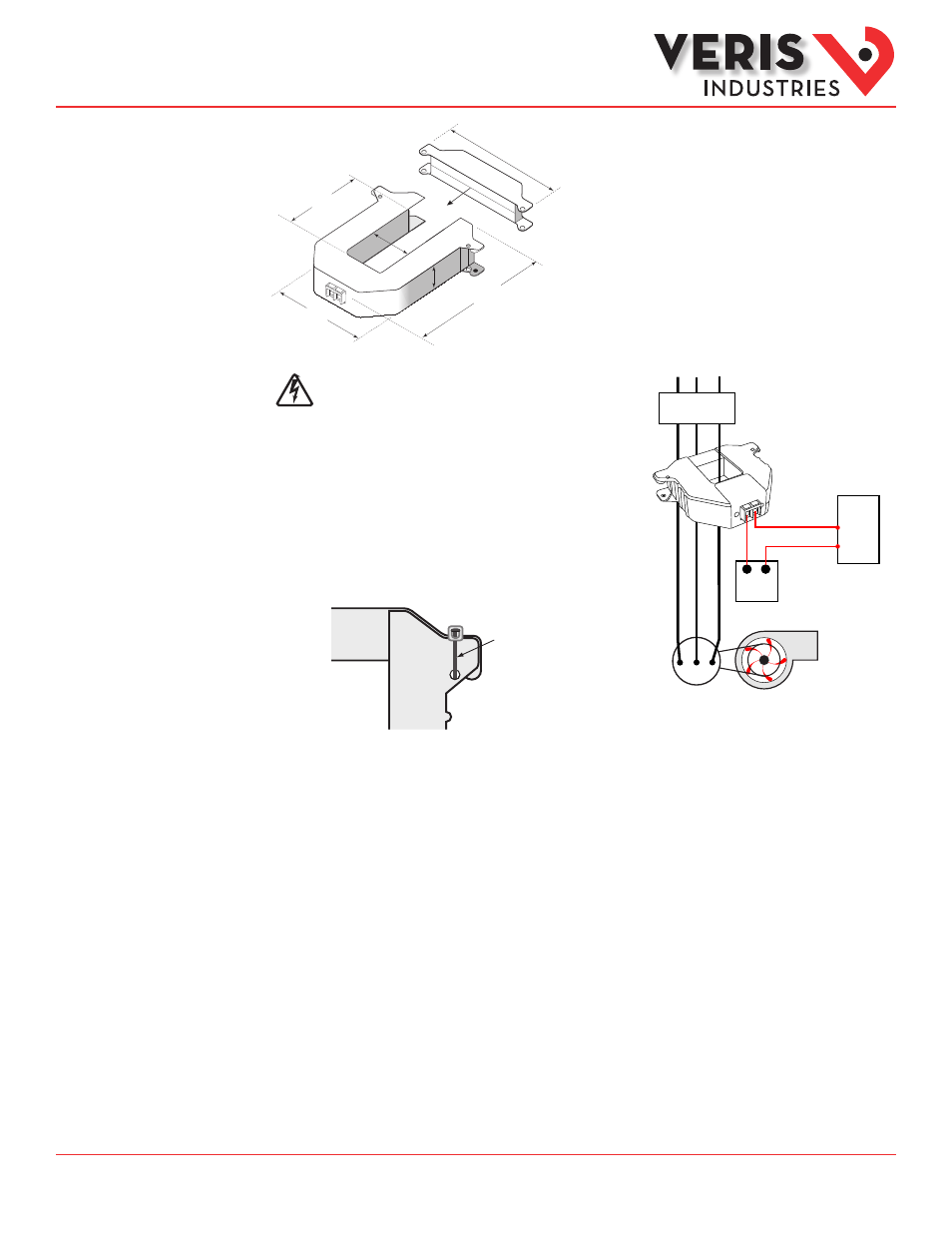

Dimensions
3.75”
(96 mm)
1.51”
(38 mm)
1.25”
(32 mm)
1.13”
(29 mm) 4.20”
(107 mm)
4.75”
(121 mm)
Disconnect and lock out power to the enclosure
containing the conductor to be monitored.
1. Choose a location for the sensor. The monitored conductor must pass
through the center window, and the sensor must be at least ½” (13 mm)
from any uninsulated conductors. Determine cable routing for the controller
connection, allowing the sensor to reach the conductor.
2. Wire the output connections between the sensor and the controller
(4-20 mA).
3. Snap the sensor over the conductor to be monitored.
4. Secure I-bar to main body of sensor with wire ties or other securing method.
Wire tie
5. Secure the enclosure and reconnect power.
6. Scale the sensor range, then scale the controller software to match the sensor’s output (see Scaling section).
Installation
Motor
CONTACTOR
DIGITAL CONTROL
12-30VDC
Power Supply
AI
– +
+
–
Fan or Pump
