MODEL MANUF. PART # DESCRIPTION
U001-0008 250BR0505-1211 Flow, Sensor, 1/2” Cast Brass Tee
U001-0009 250BR0705-1211 Flow, Sensor, 3/4” Cast Brass Tee
U001-0010 250BR1005-1211 Flow, Sensor, 1” Cast Brass Tee
U001-0011 250BR1205-1211 Flow, Sensor, 1 1/4” Cast Brass Tee
U001-0012 250BR1505-1211 Flow, Sensor, 1 1/2” Cast Brass Tee

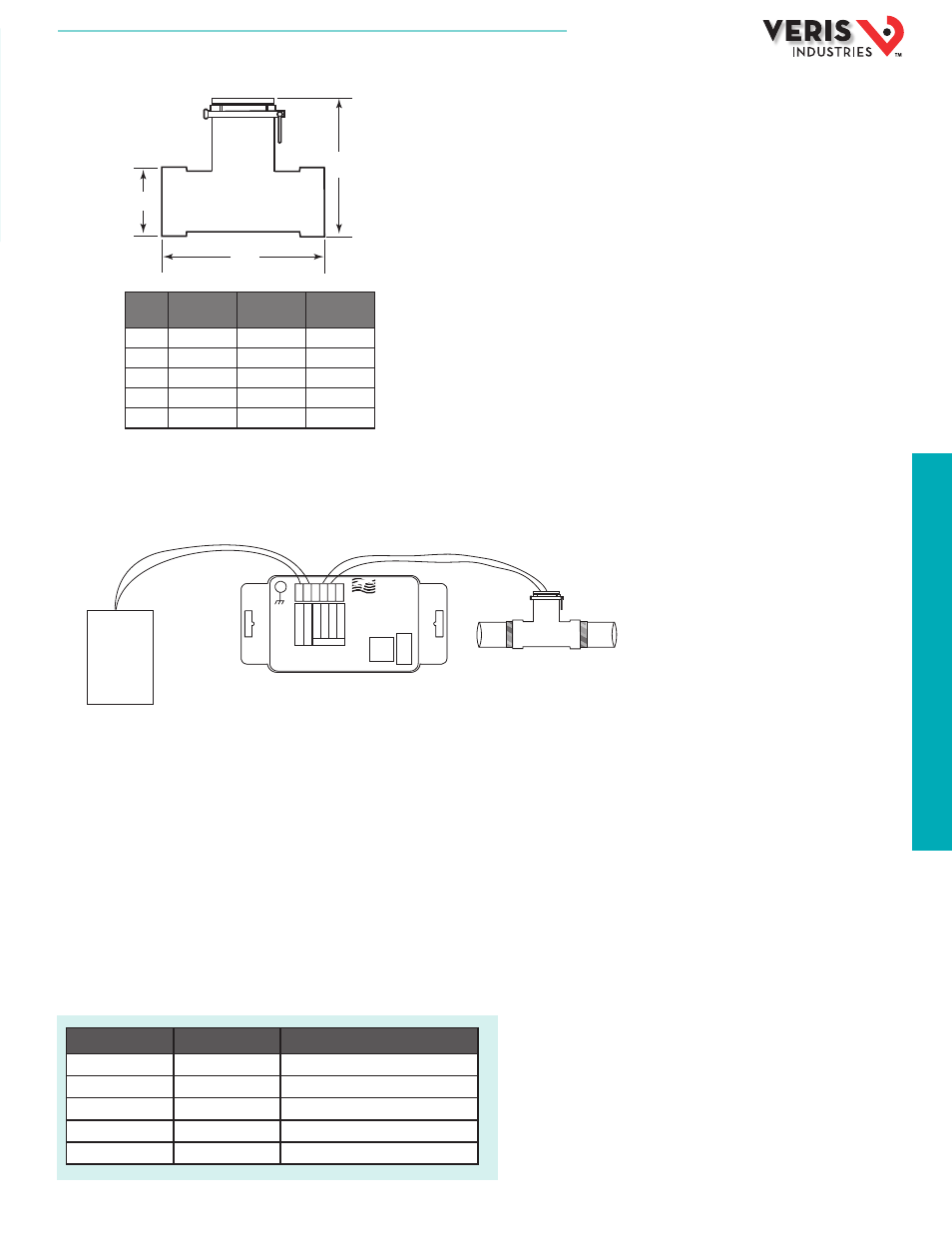

DIMENSIONAL DRAWING
ORDERING INFORMATION
APPLICATION DIAGRAM
B
A
C
Model
U001-
A B C
0008 4.0” (102 mm) 4.7” (120 mm) 1.7” (44 mm)
0009 4.0” (102 mm) 4.7” (120 mm) 1.7” (44 mm)
0010 5.5” (140 mm) 4.8” (121 mm) 2.2” (56 mm)
0011 6.1” (155 mm) 5.0” (127 mm) 2.4” (61 mm)
0012 6.5” (165 mm) 5.2” (132 mm) 2.7” (69 mm)
Sensor Inputs
4-
20
m
A
Lo
op
(-)
4-
20
m
A
Lo
op
(+
)
S hi el
d
G ro
un
d
Po
w er (4
00
0 on
ly )
D.I.C.
Comm
Port
S
ig nal
(-
)
S ig
nal
(+
)
®
Data
Industrial
Fluid
Monitoring System
250BR Sensor, in line with fluid pipe
310 Flow Transmitter
Frequency Signal 4-20 mA output
HQ0001781.B 01131
