VERIS INDUSTRIES
800.354.8556 +1 503.598.4564 www.veris.com
AA05
Static Pressure Pickup
Accessories
Unobtrusive Housing for Pressure
Sensing Devices
AA05 & AA07
DESCRIPTION
The AA05 Room Static Pickup Device is a compact, easy-to-install, low-profile device
used to minimize the aesthetic impact of pressure monitoring in spaces. Just drill a
1 3/8” (1” conduit electrical trade size) hole at a convenient place in a wall or ceiling
of the space. Run tubing to connect between the sensor port and the hose barb on
the back of the AA05 pickup, then just push the pickup into the surface to finish the
installation.
FEATURES
AA05 Room Static Pickup
● Compact, attractive appearance
● Barb brass fitting accomodates popular tubing
● Easy to install
AA07 8”, AA06 4” Duct Static Pickup
● Rugged, all-metal construction
● Gasket and hardware provided
● Easy to install
AA07
Year
Warranty
5
2.0”
(51 mm)
1.4”
(36 mm)
0.5”
(13 mm)
2.0”
(51 mm)

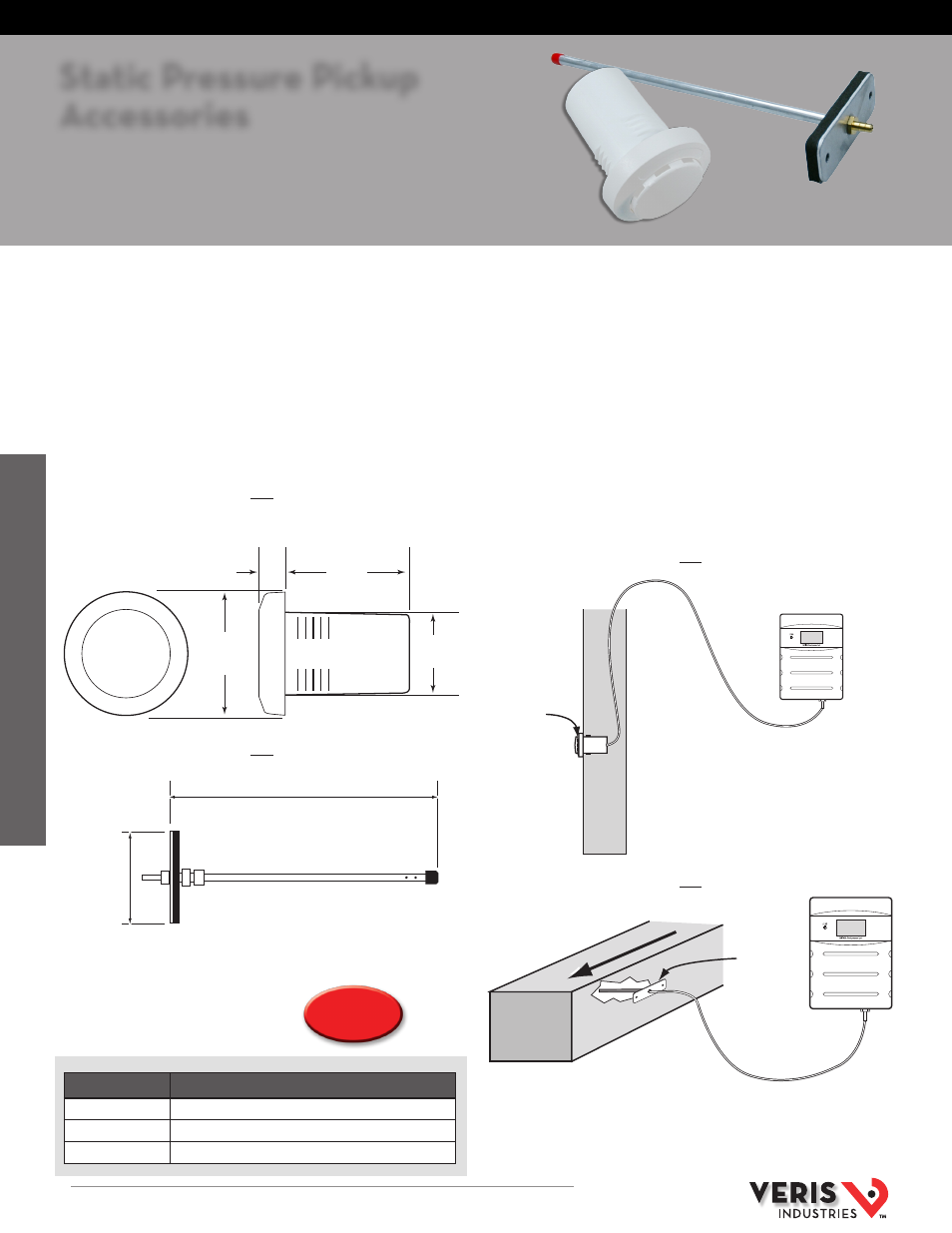

DIMENSIONAL DRAWINGS
AA07
8.75"
(223 mm)
AA06
4.125"
(105 mm)
3.00 "
(7 7 mm)
AA05
AA07
Pressure Transmitter
Veris PX Series
WALL
Z103591-0A
Differential Pressure Transmitter
Inch H 2 O
AA05
APPLICATION DIAGRAMS
DUCT
Z103591-0A
Differential Pressure Transmitter
Inch H2O
AA06
or AA07 AIR FL
OW
AA05
AA07
MODEL DESCRIPTION
AA05 Room Static Pressure Pickup
AA06 Duct Static Pressure Pickup Tube, 4”
AA07 Duct Static Pressure Pickup Tube, 8”
ORDERING INFORMATION
HQ0001904.A 01121
