TE
MPERA
TURE
800.354.8556 +1 503.598.4564 www.veris.com
Thermowell Sensor Type
T I
Immersion Probe
Length “L”
0 = None
1 = Add Thermowell
B = 100R Platinum, RTD
C = 1k Platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k, T3, Thermistor
J = 10k Dale, Thermistor
K = 10k w/11k shunt,Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
P = 10mV/°C, Linitemp
R = 10k US, Thermistor
S = 10k 3A221, Thermistor
T = 100k, Thermistor
U = 20k “D”, Thermistor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
Z = 10k E1, Thermistor
A = 2 1/2" (64mm)
B = 4" (102mm)
C = 6" (152mm)
D = 8" (203mm)
E = 12” (305mm)
Cal Certificate Enclosure
D = Duct
G = Service Entry Body
H = Threaded NPT Only
W = Water resistant
housing
Threads
Blank = NPT
A = BSPT
B = DIN 2999
OPTIONS
Example:
T I D B 1 D 2 A
Probe Length Thermowell Length
A (2 1/2") (64mm) 1 1/2” (38mm)
B (4") (102mm) 3” (76mm)
C (6") (152mm) 5” (127mm)
D (8") (203mm) 7” (178mm)
E (12”) (305mm) 11” (279mm)
Thermowell Sizing
TIG Model TIH Model

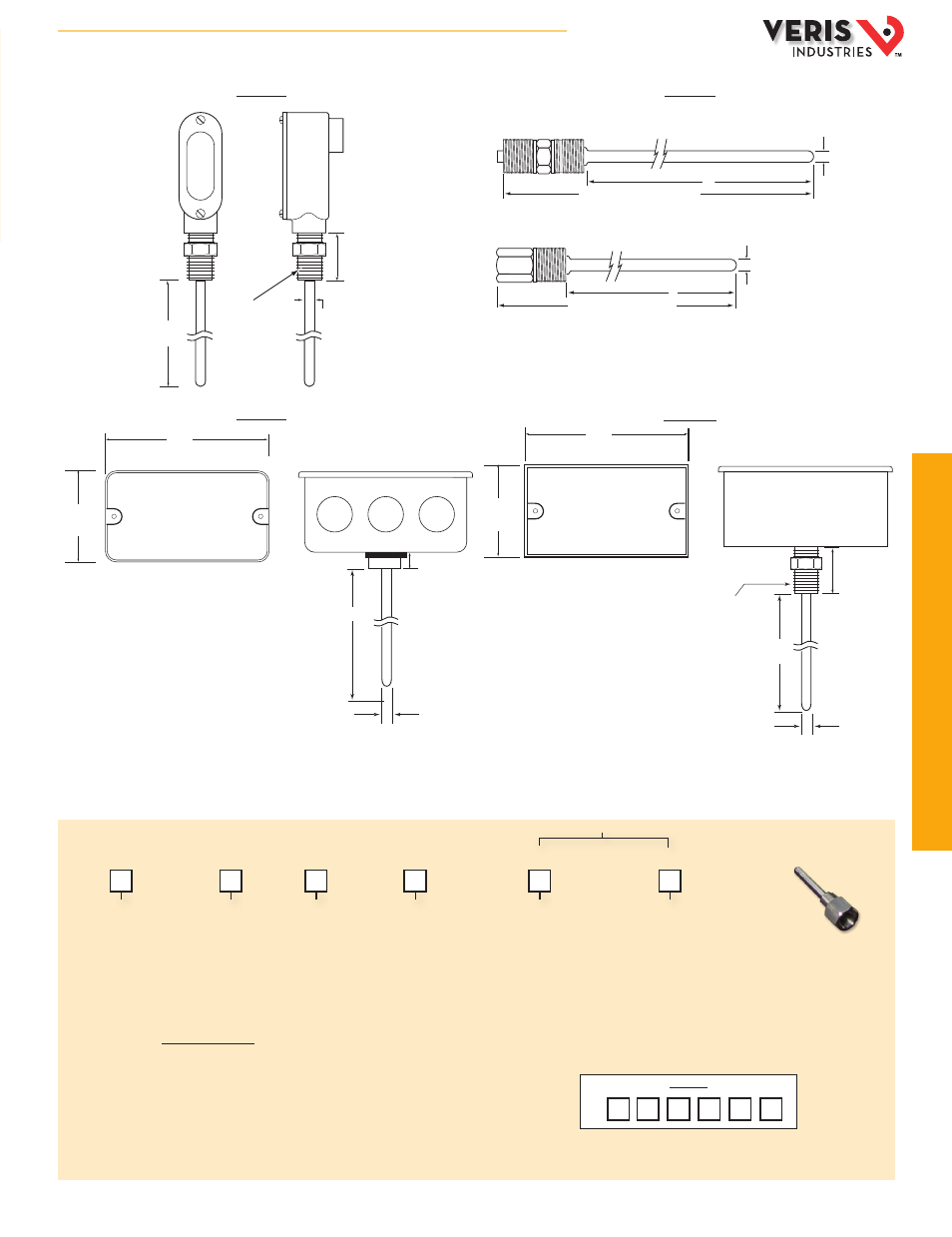

DIMENSIONAL DRAWINGS
TID Model
NOTE:
For 4-20mA transmitter output, order any TI with the
100Ω platinum RTD and accessory AA10xx
0 = None
1 = 1 point Cal validation
2 = 2 point Cal validation
TIW Model
ORDERING INFORMATION ACCESSORIES
Thermowells (AA22, AA24,
AA25, AA33)
1.5"
(38 mm)
0.25"Dia.
(6 mm)
L
1/2" NPT
Standard
L
L
0.25" dia.
(6 mm)
Overall: "L" + 2" (51 mm)
0.375" dia.
(10 mm)
(0.5" dia. on
12” probe lengths)
Overall: "L" + 1.75" (45mm)
Immersion Probes
Thermowells
4"
(102 mm)
2.2"
(56 mm)
0.25" dia"
(6 mm)
L
0.5" nom.
(13 mm)
4.5"
(114 mm)
2.8"
(71 mm)
0.25" dia"
(6 mm)
L
1.5"
(38 mm)
1/2" NPT
Standard
AA24
