800.354.8556 +1 503.598.4564 www.veris.com

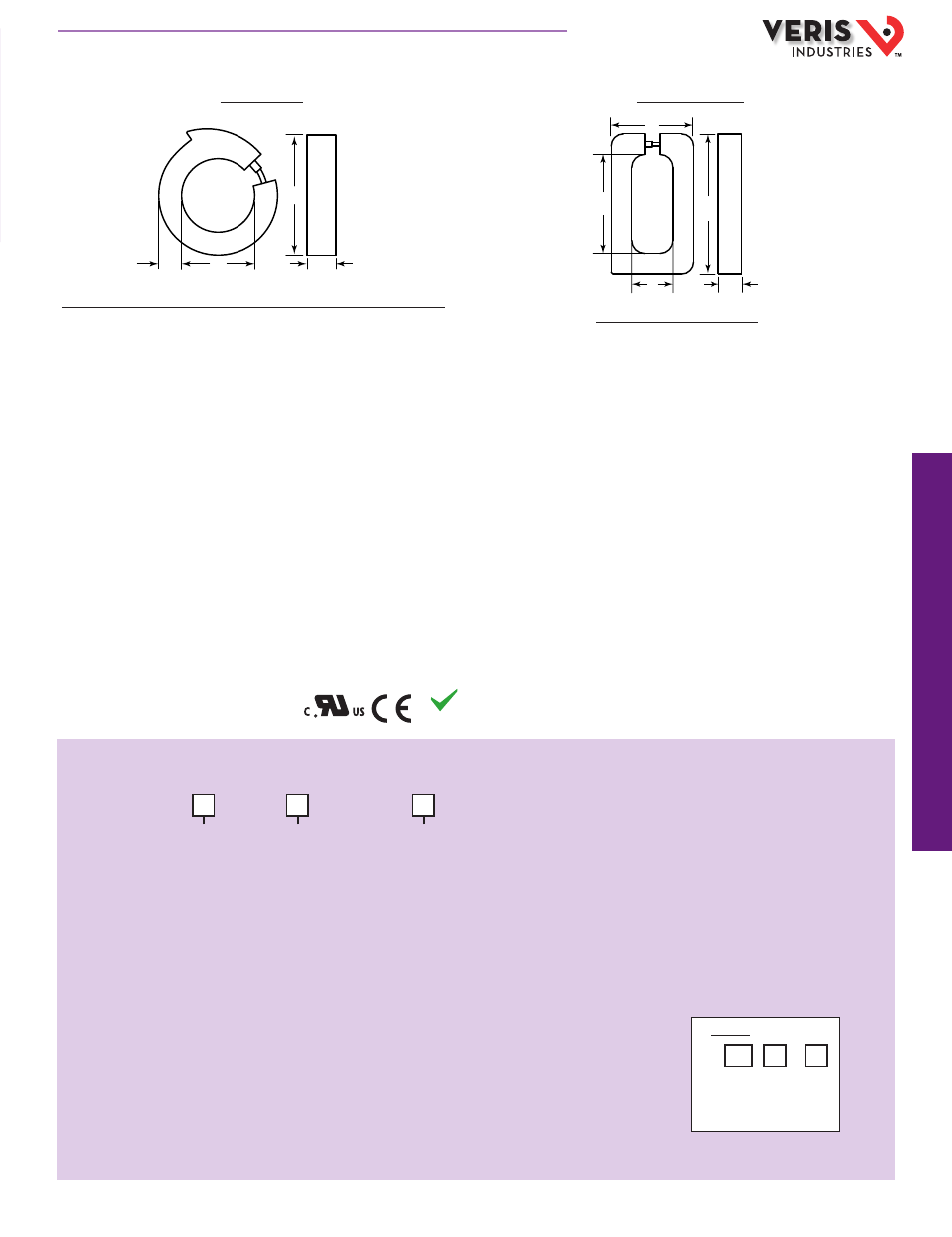

DIMENSIONAL DRAWINGS
ORDERING INFORMATION
RoHS
Compliant
A B
D
C
A
B
C
D 4.0” (101 mm)
1.25” (32 mm)
1.5” (38 mm)
6.5” (165 mm) 6.0” (152 mm)
1.25” (32 mm)
1.5” (38 mm)
8.5” (216 mm) 8.0” (203 mm)
1.25” (32 mm)
1.5” (38 mm)
10.5” (267 mm) 11.0” (279 mm)
1.25” (32 mm)
1.5” (38 mm)
13.5” (343 mm) 18.0” (457 mm)
1.25” (32 mm)
1.5” (38 mm)
20.5” (521 mm)
-4 Model -6 Model -8 Model -11 Model -18 Model
E
D
A
B
C
A
B
C
D
E 2.75” (70 mm)
6.6” (168 mm)
5.5” (140 mm)
9.4” (240 mm)
1.5” (38 mm) 4.0” (101 mm)
11.0” (279 mm)
6.5” (165 mm)
13.4” (340 mm)
1.5” (38 mm)
-R Model -R411 Model
Round Flexible Core Rectangular Flexible Core
E186575
FCL
Current
200 = 200A
250 = 250A
300 = 300A
400 = 400A
500 = 500A
600 = 600A
800 = 800A
1000 = 1000A
1200 = 1200A
1500 = 1500A
1600 = 1600A
2000 = 2000A
2400 = 2400A
2500 = 2500A
3000 = 3000A
3500 = 3500A
4000 = 4000A
5000 = 5000A
6000 = 6000A
–
I.D.
5 = 5A
1V = 0-1VAC
0.3V = 0-0.333VAC
Output
4 = 5A, Round, 4” (200A-2000A)
6 = 5A, Round, 6” (300A-3000A)
8 = 5A, Round, 8” (1000A-5000A)
11 = 5A, Round, 11” (1500A-6000A)
18 = 5A, Round, 18” (2000A-6000A)
R = 5A, Rectangular, 2.75” x 6.625” (300A-4000A)
R411 = 5A, Rectangular, 4” x 11” (1500A-6000A)
4 = 1V, Round, 4” (200A-1000A)
6 = 1V, Round, 6” (500A-2000A)
8 = 1V, Round, 8” (1000A-2000)
11 = 1V, Round, 11” (1500A-3500A)
18 = 1V, Round, 18” (2000A-6000A)
R = 1V, Rectangular, 2.75” x 6.625” (500A-1600A)
R411 = 1V, Rectangular, 4” x 11” (1000A-2500A)
4 = 0.3V, Round, 4” (200A-1500A)
6 = 0.3V, Round, 6” (500A-4000A)
8 = 0.3V, Round, 8” (1000-6000A)
11 = 0.3V, Round, 11” (1500A-6000A)
18 = 0.3V, Round, 18” (2000A-6000A)
R = 0.3V, Rectangular, 2.75” x 6.625” (500A-4000A)
R411 = 0.3V, Rectangular, 4” x 11” (1000A-6000A)
/
Example:
FCL 2000 / 5 – 11
Split-Core
Accuracy at Full Scale
200:5 thru 300:5..............4%
400:5 thru 500:5..............3%
600:5 thru 800:5..............2%
1000:5 thru 6000:5..........1%
For 1VAC and 0.333VAC....1% at full scale
2000A CT with 11” inside
diameter and 5A output
HQ0001820.B 01131
