PS Series Switching
Power Supplies
Power Supplies
FEATURES
●
High efficiency switching power supply capable of supplying up to 100Watts*
●
Ideal for supplying loop power to Veris power transducers and current sensors
●
Universal voltage input from 100-240VAC/110-340VDC
●
DIN rail housing for ease of installation
●
Small size...saves panel space
●
High efficiency...won’t generate excessive heat in control panel
●
DIN rail switching power supply provides 12 or 24VDC, up to 100Watts*
●
100MΩ minimum isolation

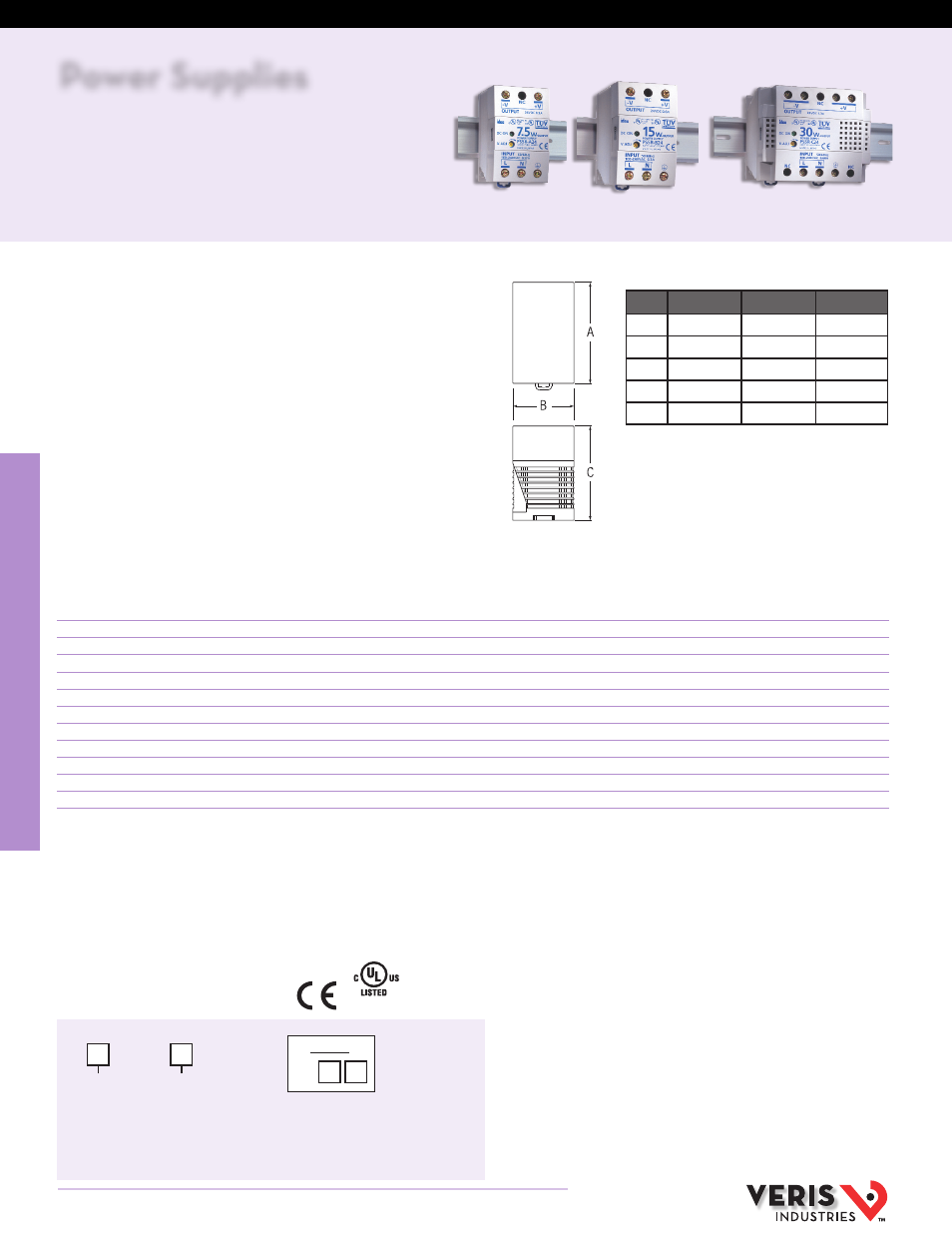

DIMENSIONAL DRAWING
SPECIFICATIONS
Input Voltage (single phase, 2-wire)
100-240VAC nominal, (85-264VAC) 50/60Hz (47-63Hz); 110-340VDC nominal, (105-370VDC)
Input Current (typical@100V)
0.17A (PS-7.5W), 0.30A (PS-15W), 0.68A (PS-30W): 1.15A (PS-50W), 2.5A (PS-100W)
Internal Fuse Rating
2A (PS-7.5W), 2A (PS-15W), 3.15A (PS-30W); 3.15A (PS-50W), 4A (PS-100W)
Inrush Current
50A max. (cold start at 200V)
Leakage Current (at no load)
0.75mA max. (60 Hz measured in conformance with VDE, UL, CSA)
Output Voltage & Current Ratings@12 V
12V/0.6A (PS-7.5W), 12V/1.2A (PS-15W), 12V/2.5A (PS-30W)
Output Voltage & Current Ratings@24 V
24V/0.3A (PS-7.5W), 24V/0.6A (PS-15W), 24V/1.3A (PS-30W), 24V/4.2A (PS-100W)
Operating Temperature
-10° to 60°C (14° to 140°F)
Storage Temperature
-30° to 85°C (-22° to 185°F)
Operating Humidity
20 to 90% RH noncondensing
Weight (approx.)
150 g (PS-7.5W), 170 g (PS-15W), 360 g (PS-30W), 390 g (PS-50W), 600 g (PS-100W)
Terminal Screw
Spring-up, finger-safe terminals with captive M3.5 screws
PS
Output
12 =12VDC
24 = 24VDC
Watts
7.5W = 7.5 Watts
15W = 15 Watts
30W = 30 Watts
50W* = 50 Watts
100W* = 100 Watts
120W* = 120 Watts
240W* = 240 Watts
Example:
PS
12 7.5
* Available in 24V only.
Capable of supplying up to 100 Watts
(AV01 DIN Rail not included)
ORDERING INFORMATION
A
B
C
7.5W
2.3” (59 mm)
1.8” (46 mm)
2.5” (64 mm)
15W
3.0” (77 mm)
1.8” (46 mm)
3.8” (97 mm)
30W
3.0” (77 mm)
3.6” (92 mm)
3.9” (99 mm)
50W
3.0” (77 mm)
3.6” (92 mm)
3.9” (99 mm)
100W
3.0” (77 mm)
5.7” (145 mm)
3.9” (99 mm)
IND. CONT. EQ.
UL 508
PS Series
PS SERIES
