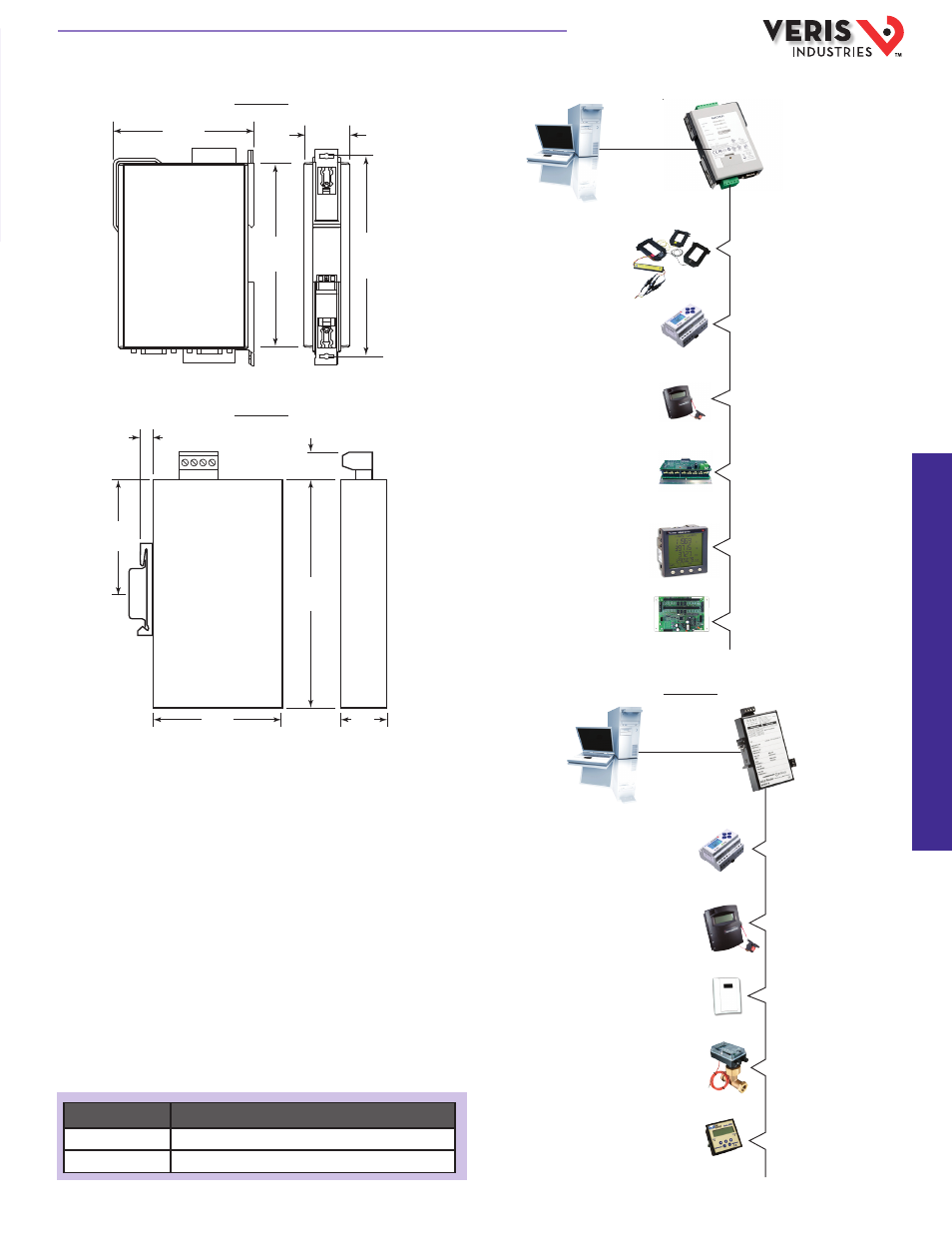

DIMENSIONAL DRAWINGS
ORDERING INFORMATION
MODEL DESCRIPTION
U013-0012 Modbus Gateway (RTU to TCP)
U013-0013 BACnet Router (MS/TP to IP)
0.6”
(15 mm)
4.9”
(123 mm)
1.0”
(26 mm)
2.8”
(80 mm)
0.3”
(8 mm)
2.4”
(62 mm)
U013-0013
U013-0012
3.5”
(89 mm)
1.1”
(29 mm)
4.7”
(119 mm)
4.9”
(125 mm)
APPLICATION/WIRING EXAMPLES
U013-0012
H8036
H81xx with
H8163-CB
E5xCx
Meter
Modbus RTU
(RS-485 Serial)
H8238
Multi-Circuit Monitor
H843x
Meter
E3x
Panelboard
Monitoring System
Ethernet
Modbus TCP
U013-0012
Modbus Gateway
U013-0013
H81xx with
H8186-CB
E5xHx
Meter
BACnet MS/TP
(RS-485 Serial)
CW Protocol/TW Protocol/HW Protocol
Environmental Sensors
380 Series
BTU/Flow System
3xxx Series
Flow Monitor
U013-0013
BACnet Router
Ethernet
BACnet IP
