INSTALLATION GUIDE
H120/H120NC
Z203684-0D PAGE 2 ©2013 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 03131
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Nipple mount to 4x electrical box
Nipple mount directly to a panel
Relay Contacts
Current Switch
POWER
SOURCE
Fractional
HP Motor
To Load
To Controls
CON
TACTS
RELAY
DO (coil)
DI (current
switch)

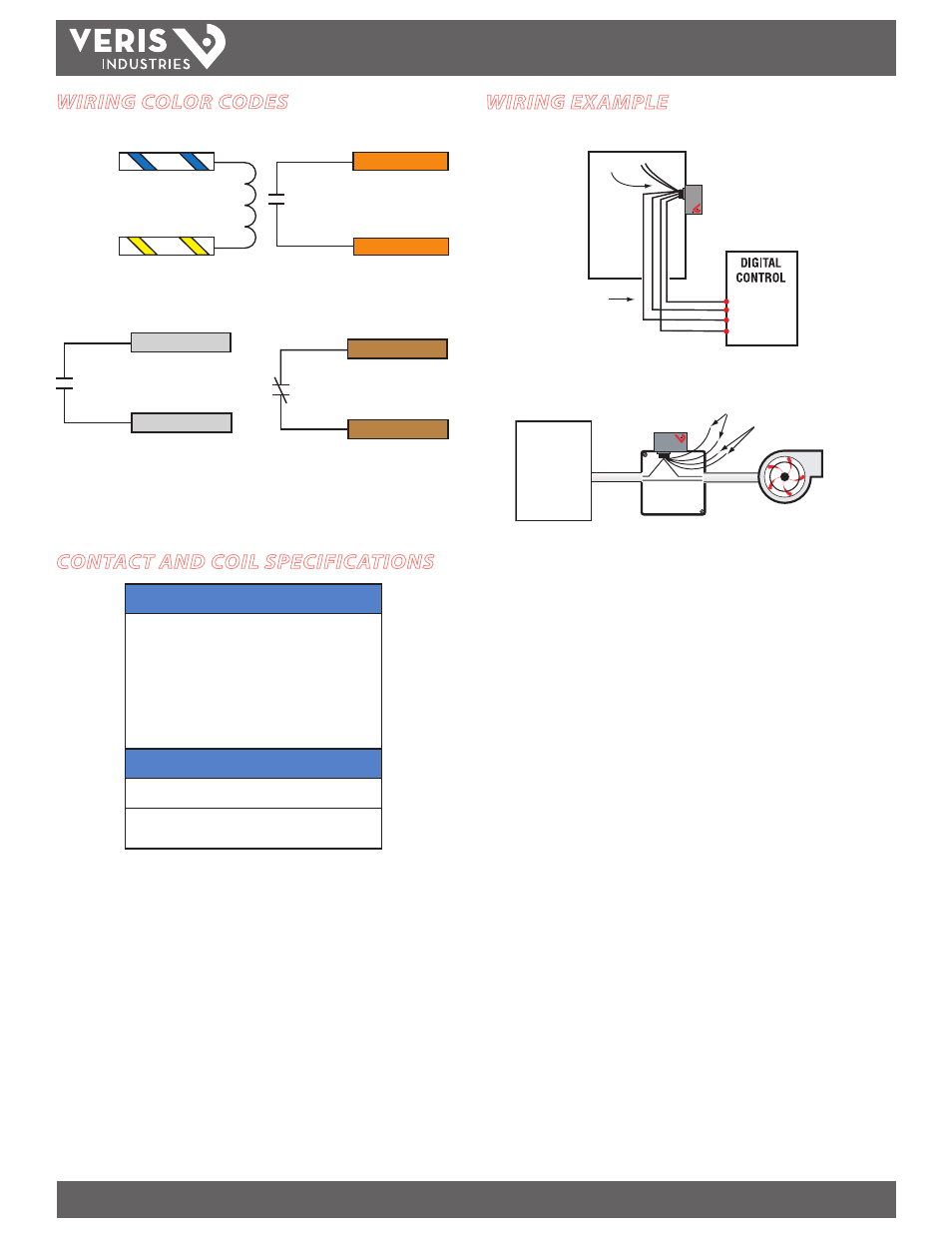

WIRING EXAMPLE WIRING COLOR CODES
Voltage Coil Current
AC DC
24V.................................. 75mA
32mA
TYPICAL COIL PERFORMANCE
Resistive........................ 20A(r)*@277VAC/28VDC
(250,000 Cycles)
Motor............................. 120VAC, 1HP
208VAC, 1HP
250VAC, 2HP
277VAC, 2HP
Ballast........................... 277VAC, 20A
Tungsten....................... 120VAC, 10A
RELAY CONTACT RATINGS (N.O.)
*See operating temperature specification
Common
24VAC/DC
VOLTAGE
wht/blue
COMM
wht/yellow
Common
N.O.
CONTACT OUTPUT CONTROL SYSTEM INPUT
White ORANGE
White ORANGE
blue blue
yello
w
yello
w
*Isolation…600VAC
*
GREY
COMMON
N.O.
GREY
H120 STATUS OUTPUT
BROWN
COMMON
N.C.
BROWN
H120NC STATUS OUTPUT
CONTACT AND COIL SPECIFICATIONS
