Socket Relays In A Wide Range Of
Features And Coil Voltages

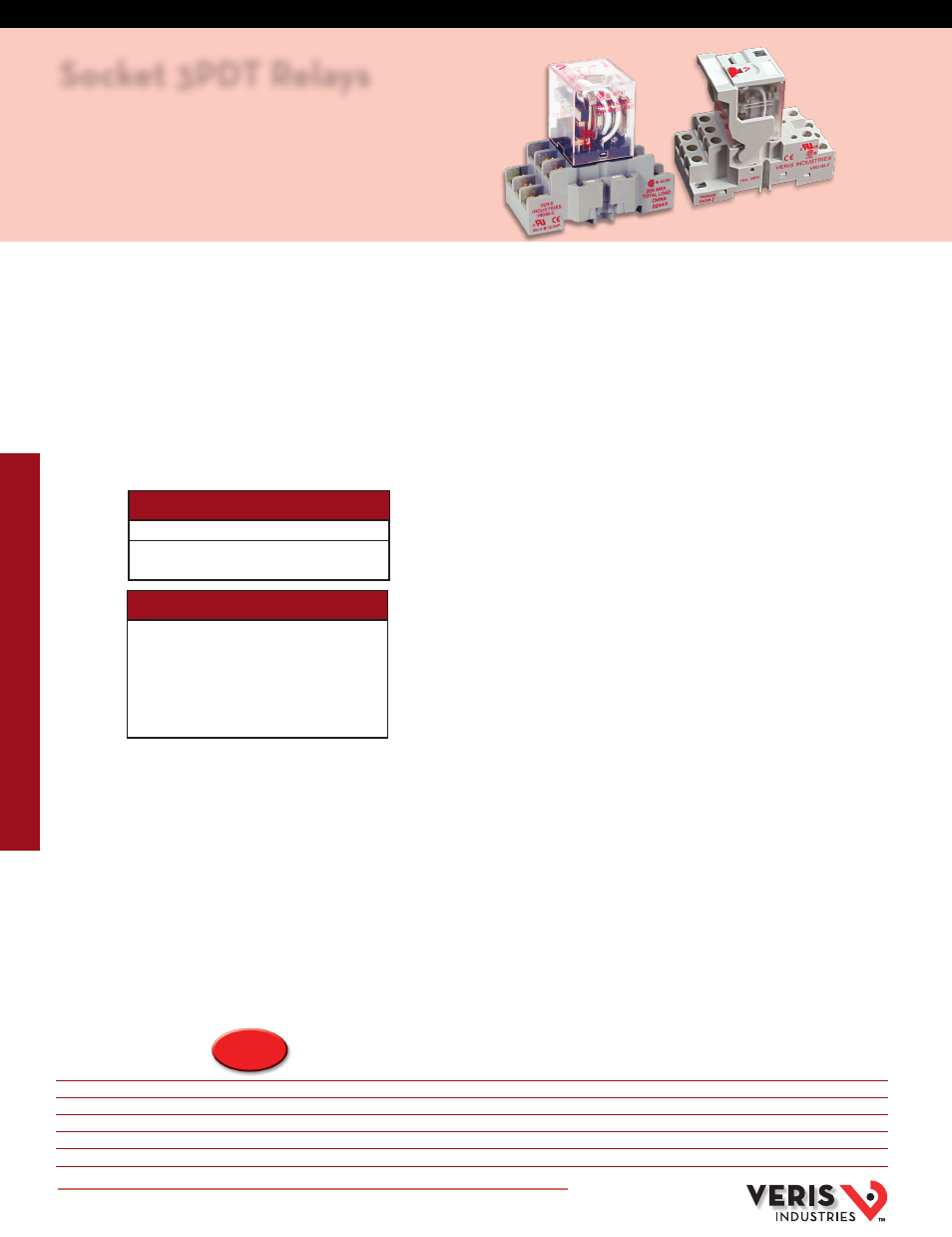

Socket 3PDT Relays
Year
Warranty
5
SPECIFICATIONS
Operating Temperature Range
-40° to 55°C (-40° to 131°F)
Operating Range
85% to 110% of rated voltage
Drop-out Voltage Threshold
15% of rated voltage
Expected Relay Life
Electrical (@ rated current) 100,000 cycles; Mechanical (unpowered) 10,000,000 cycles
Operating Time
20 msec typical
Dielectric Strength
1500VAC RMS
DESCRIPTION
The Veris VMD3B Series are 3PDT blade-style relays for socket/DIN mounting.
Both the full-featured and standard DIN rail sockets are compatible with both the
VMD3B-C and VMD3B-F relays and feature a slim, attractive design.
The standard VMD3B-C model is economical and reliable. The full-featured
VMD3B-F includes an LED and a flag indicator for convenient status viewing and a
push-button test feature for easy troubleshooting. The finger-safe sockets reduce
risk, and the hold-down clip keeps the device secure. No need to worry about safety
or dependability.
FEATURES
Full featured model:
●
Color-coded push button...allows manual operation of relay. AC coils red,
DC coils blue
●
Removable override lever...when activated, locks push button and contacts
in the powered position
●
Flag indicator...shows relay status in manual or powered condition
●
LED status lamp...shows coil “ON” or “OFF” status
●
I.D. tag/write-on plastic label...used for identification of relays in multi-relay
circuits
●
2-way side or DIN rail mounting system...retrofits existing panel mounting
and 35 mm DIN rail
●
Mating hold-down clip...secures relay to socket (-F sockets)
VMD3B-C
VMD3B-F
VBD3B-C
VBD3B-F
Power Consumption
AC Coils...................................
1.5VA
DC Coils...................................
1.4W
TYPICAL COIL PERFORMANCE
Resistive................. 15A@120VAC
12A@277VAC
12A@28VDC
Motor..................... 1/2 HP@120VAC
3/4 HP@250VAC
Pilot Duty............... B300
CONTACT RATINGS
VMD3B & VMD3B-C SERIES
