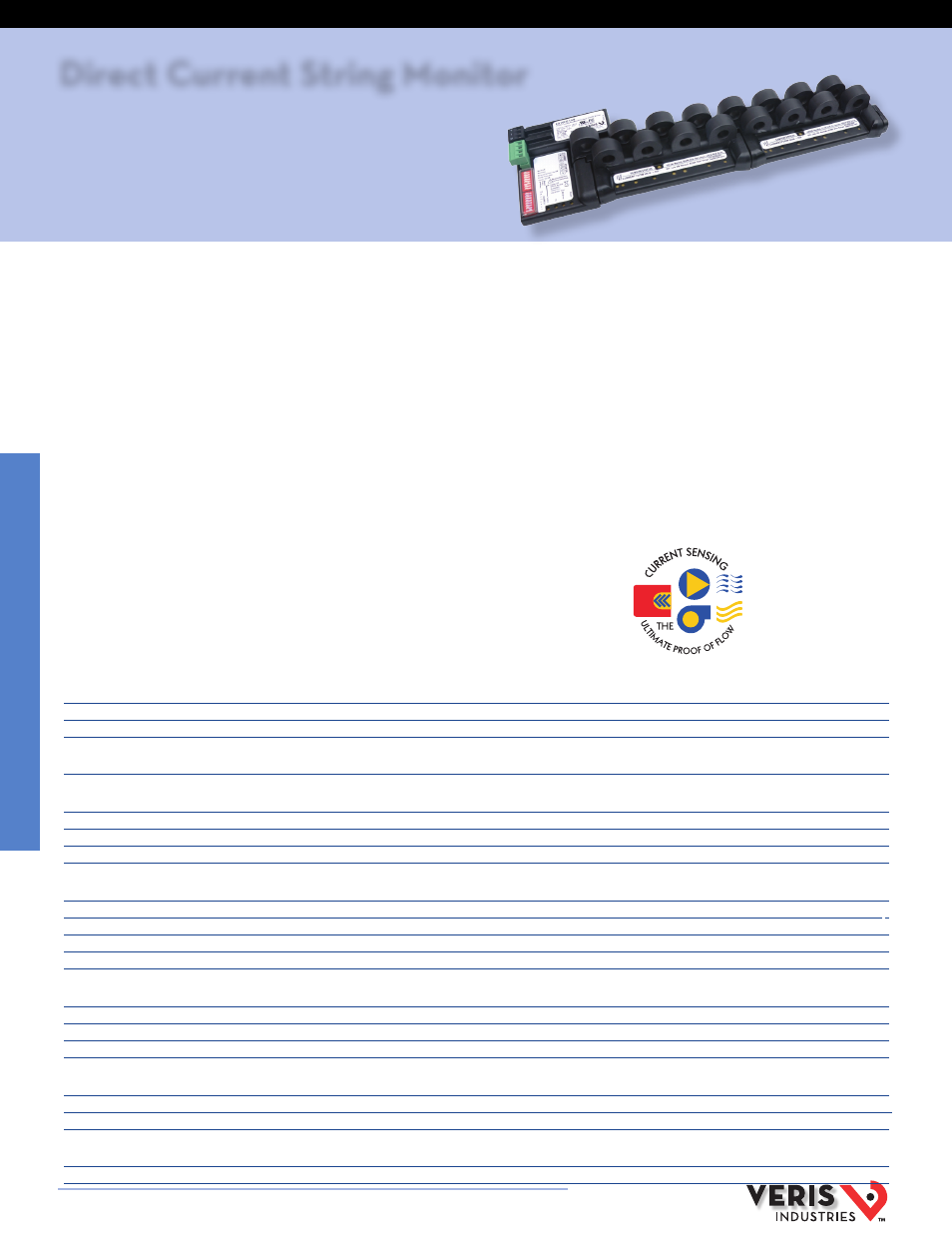

Direct Current String Monitor
DC Monitoring for Combiner Boxes
DESCRIPTION
The EA10 DC monitoring system provides the perfect solution for string monitoring
in combiner and sub-combiner boxes or other DC loads. The modular construction
allows easy installation for monitoring 8 to 32 strings in a single system. Pulse Reset
technology means no output drift and immunity to power spikes and surges up to
20kA.
This system includes a communications unit that supplies power and provides
Modbus communication. Up to four current sensing modules can connect serially
to one communications unit, each with eight DC current sensors, for a total of 32
monitoring nodes. Connect up to 63 communications units in a daisy chain for
full system monitoring. All boards can be mounted on standard DIN rail for easy
installation.
APPLICATIONS
●
Renewable energy and string monitors
●
Industrial monitoring
●
Data centers
FEATURES
●
Pulse Reset technology...high immunity to power surges...greater repeatability
over time
●
Modular construction...connect up to four current sensing modules to one
communications unit...easy to install
●
Fully encapsulated...robust design is resistant to the elements
●
Monitors 2016 points total...minimize home run wiring
●
Up to 1000VDC isolation for high voltage strings
●
RS-485 Modbus communications...quick commissioning
●
Wide range DC power requirements...versatility
●
Fits onto standard 35 mm DIN rail...convenient installation
●
Amp-hour calculation...read once per day for less network traffic
●
LED indication of faults...quick visible troubleshooting
●
May be installed in UL1741 systems...smart combiner capability
Maximize Reliability
Minimize Installed Cost
SPECIFICATIONS
Inputs:
Control Power
Class 2/SELV 24VDC to 42VDC
Maximum Power Consumption
7W at 32 channels
Maximum Current Input
Up to 20A per point
Accuracy:
Current
0.5% full scale (combined linearity, hysteresis, and repeatability)
Outputs:
Communication
2-wire RS-485, 1200 to 38400 baud, Modbus RTU
Available Information
Current per point, both instantaneous amps & cumulative amp-hours, events
Update Rate
2 sec
Maximum Measurement Points
8, 16, 24, or 32
Mechanical:
Mounting
T35 (35 mm) DIN Rail per EN50022
Terminal Block Wire Size
24 to 12 AWG (0.21 to 3.31 mm
2
)
Terminal Block Torque
0.37 ft-lb (0.5 N•m) nominal/0.44 ft-lb (0.6 N•m) max.
Insulation (from current sensor to control power or RS-485 interface)
Up to 1000 VDC (insulated conductor)
Dielectric Strength
10000 VDC
Environmental:
Operating Temperature Range
-30° to 75°C (-22° to 167°F)
Storage Temperature Range
-40° to 85°C (-40° to 185°F)
Humidity Range
<95% RH noncondensing
Altitude of Operation
3 km
Agency Approvals:
US and Canada Recognized (cRUus)
UL61010-1, Acceptable in UL1741 Combiner Box
Europe (CE)
EN61010-1
Installation Category
Cat. IV, pollution degree 3
EMC:
Conducted and Radiated Emissions
FCC Part 15 Class B, EN55011 / EN61000 Class B (residential and light industrial)
Conducted and Radiated Immunity
EN61000 Class A (heavy industrial)
EA10
EA10 SERIES
HQ0001769.C 01131
