Veris Industries AH23 Install User Manual
Ah23, Notice, Danger

Z204320-0C
PAGE 1
©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected]
07111
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
TM
ACCESSORIES
INSTALLATION GUIDE
AH23
DIMENSIONS
DIN Rail Mounting Kit for H84xx Meters
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices.
See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
Failure to follow these instructions will result in death or serious injury.
DANGER
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
PRODUCT IDENTIFICATION
AH23 DIN Rail clips for H84xx power meters

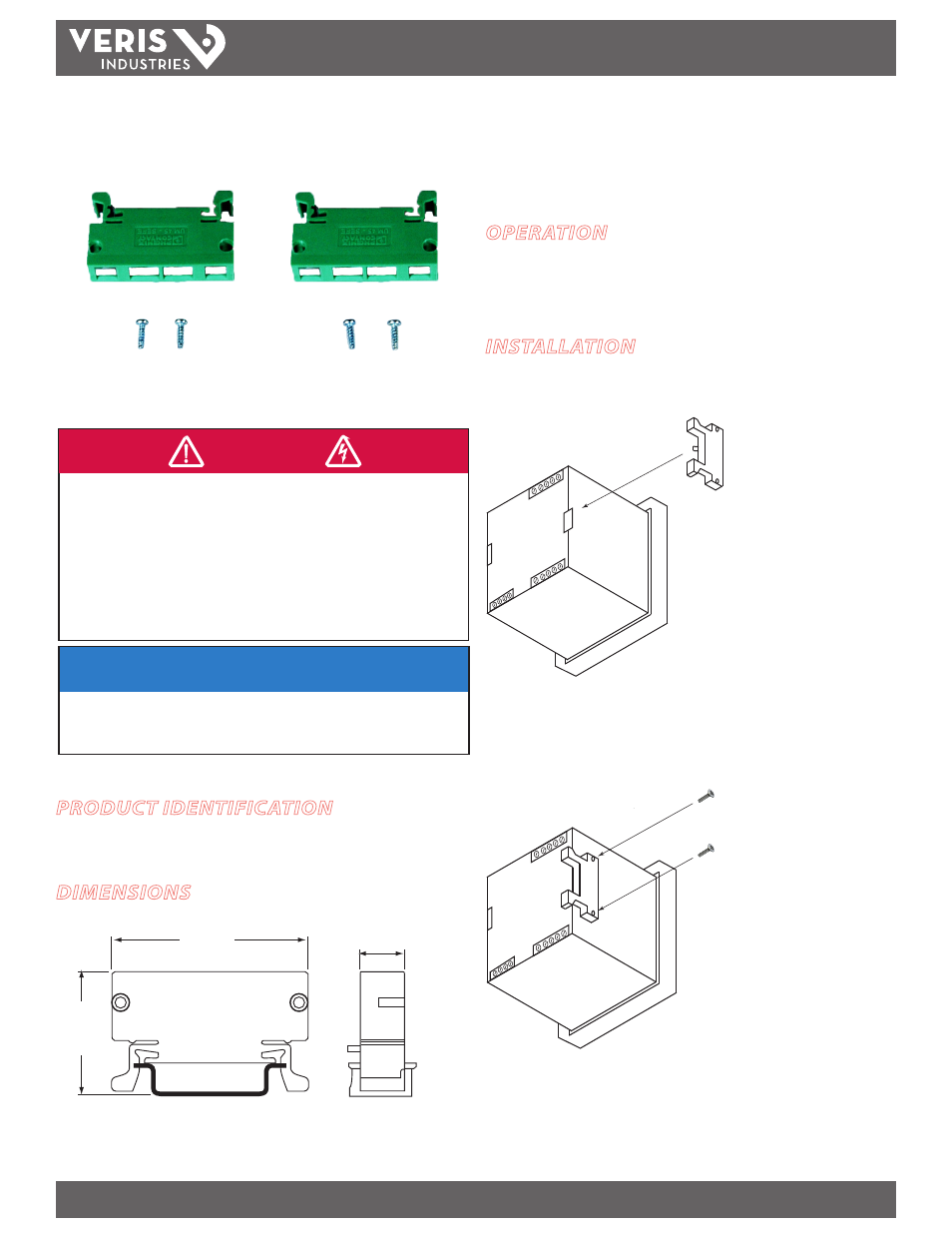

INSTALLATION
1. Insert the tab on the inside of the clip into the notch on the bottom of the H84xx
as shown below.
2. Use the included screws to secure the DIN clip to the side of the H84xx. Use two
screws for each clip.
Caution: Use only the screws provided to attach the AH23 clips to the H84xx
meter. Substituting other screws may damage the H84xx meter.
AH23
1.8"
(45mm)
0.4"
(10mm)
1.4"
(36mm)
OPERATION
The AH23 DIN Rail mounting kit is used to attach the Veris H84xx Series power meter
to standard DIN rail. The kit contains two DIN rail clips and four screws (Plastite,
#2x5/16).
Use only the Plastite
#2x5/16 screws included
with the AH23.
