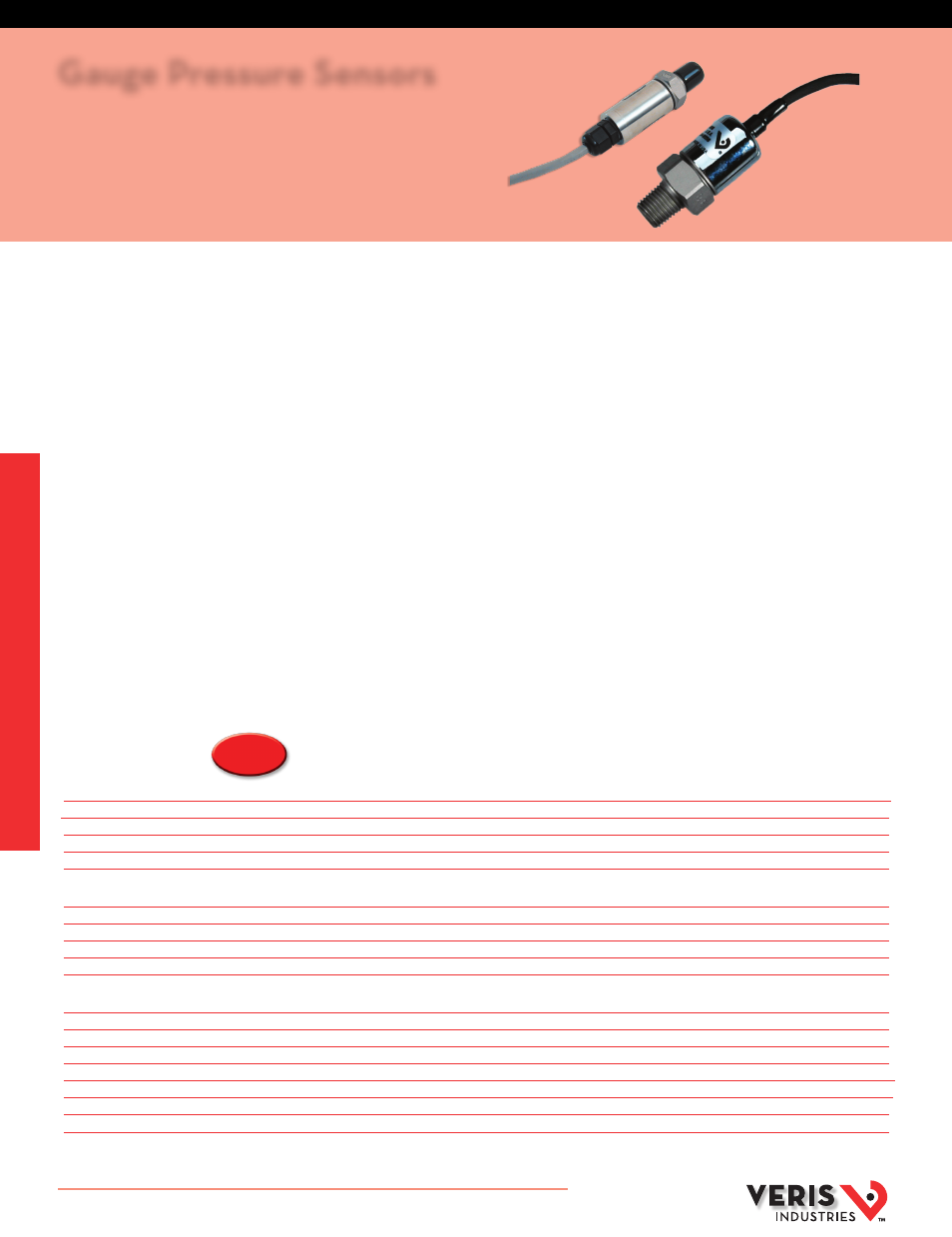

Gauge pressure sensors, Rugged stainless steel construction, Pg series

PRESSURE
VERIS INDUSTRIES
800.354.8556
+1 503.598.4564
www.veris.com
DESCRIPTION
The durable PG/PV Series pressure transducers are ideal for a wide variety of HVAC/R
and industrial applications, such as refrigeration measurement, pneumatic pressure
measurement, gas pressure measurement, pump inlet, and outlet fluid pressure.
They are even compatible with extreme applications, such as aerospace and motor
sports equipment.
APPLICATIONS
●
Pump inlet/outlet and compressors
●
Hydraulic/pneumatic systems
●
Energy & water management
●
Refrigeration equipment, fluids
●
Gas pressure measurement
FEATURES
●
Rugged stainless steel construction (PG and PV)
●
Stainless steel wetted connector (PGE and PVE)
●
No silicon oil, no internal O-rings, no welds...fewer parts to fail
●
Sturdy construction...suitable for high shock and vibration applications
●
A wide operating temperature range of -40° to 85°C (-40° to 185°F)
for operation versatility
Rugged Stainless Steel Construction
Gauge Pressure Sensors
SPECIFICATIONS
Electrical:
Supply Voltage 10-28VDC
Output
Deluxe: 0-5/0-10VDC (3-wire) or 4-20mA (2-wire); Standard: 1-5VDC (3 wire) or 4-20mA (2-wire)
Load Impedance
>100 kΩ
Standard Connection
Cable gland 24” (600 mm) length
Pressure Port
1/4” NPT Male
Performance at 25°C (77°F):
Accuracy *
Deluxe: ±0.25% BFLS **; Standard: ±0.50% BFLS **
Media Compatibility
Fluids & gases compatible with 316L stainless steel
Pressure Cycles
>100 million cycles
Over Pressure
2x F.S. without change in calibration
Burst Pressure
5x rated pressure or 20,000 psi
Environmental:
Shock
100G, 11 msec, 1/2 sine
Vibration
Deluxe: 20G peak, 20 to 2400 Hz; Standard: 10G peak, 20 to 2000 Hz
EMI/RFI Protection
Deluxe: yes; Standard: no
Rating
Deluxe: IP-66; Standard: IP-65
Operating Temperature Range
-40° to 85°C (-40° to 185°F)
Compensated Temperature Range
0° to 55°C (32° to 130°F)
Total Error Band Over Temperature
<±1% of FS
Humidity
0-95% RH noncondensing
* Accuracy includes nonlinearity and hysteresis.
** BFSL = Best fit straight line
Year
Warranty
5
PGE/PVE
PG/PV
PG SERIES
