Installation Guide
Temperature
TD/TF/TG Series
TM

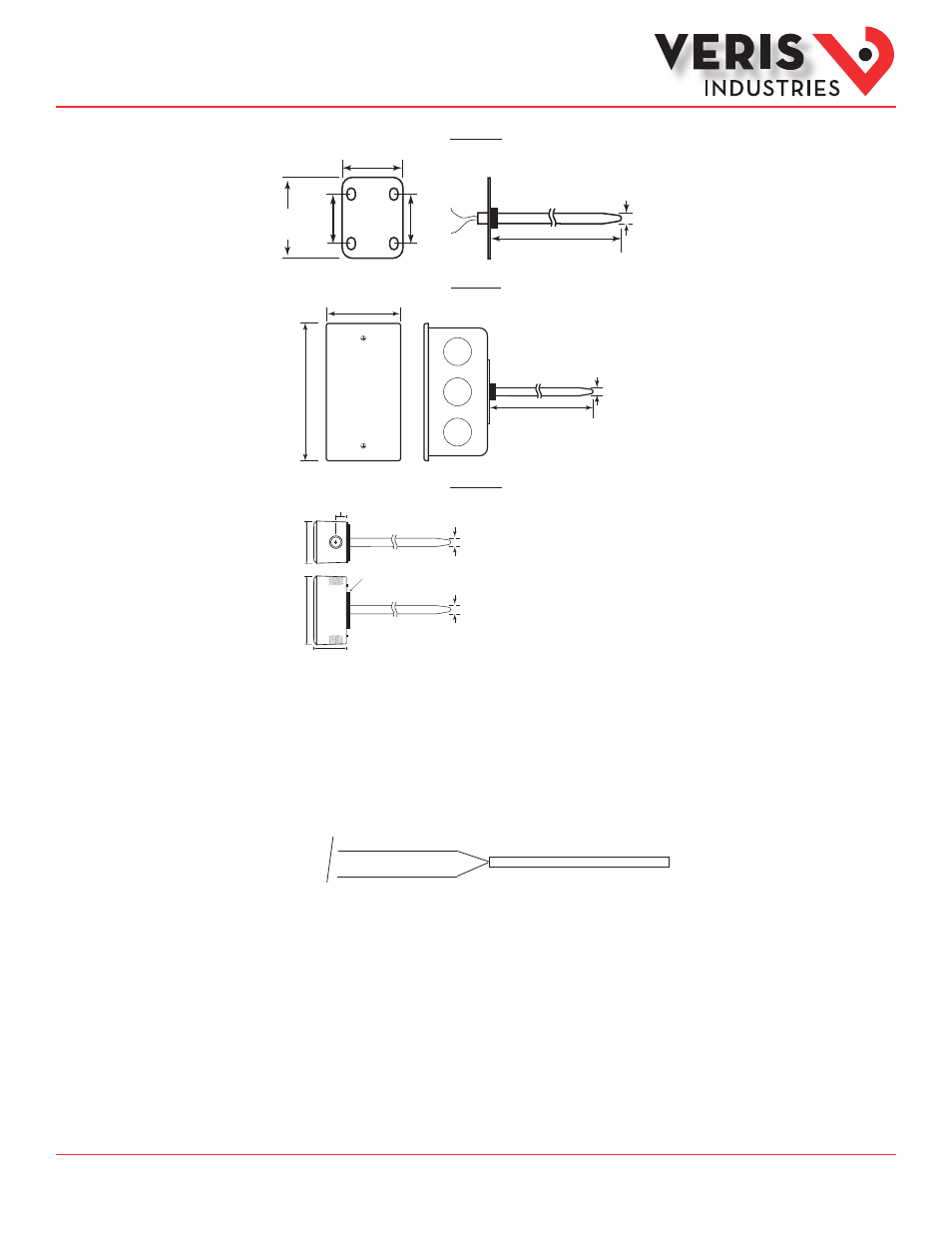

Dimensions TD Model
0.25"Dia.
(6 mm)
1.5"
(38 mm)
2"
(51 mm)
1.1"
(28 mm)
L
1.1"
(28 mm)
1.1"
(28 mm)
TF Model
2.3"
(59 mm)
4.3"
(109 mm)
0.25"Dia.
(6 mm)
L
TG Model
0.25" Dia.
(6 mm)
0.25" Dia.
(6 mm)
2.9"
(74 mm)
4.6"
(117 mm)
2.0"
(51 mm)
0.7"
(18 mm)
Foam Gasket
2.5" x 2.5"
(62 mm x 62 mm)
1. Drill a 3/8” diameter hole into a duct for the sensor probe.
2. Insert the probe into the duct.
3. Secure the junction box housing (TF/TG) or the mounting flange (TD) to the outer surface of the duct using the self-tapping
screws provided.
4. Wire as shown.
Thermistor
RTD Orange
Orange
Installation
