800.354.8556 +1 503.598.4564 www.veris.com
MODEL VOLTAGE MAX. AMPS OUTPUT CT SIZE CT TYPE
H8041-0100-2
208/240
100
4-20mA
SMALL
Single CT
Model
H8041-0300-2 300 SMALL
H8041-0400-3 400 MEDIUM
H8041-0800-3 800 MEDIUM
H8041-0800-4 800 LARGE
H8041-1600-4 1600 LARGE
H8041-2400-4 2400 LARGE
H8042-0100-2
480
100 SMALL
Single CT
Model
H8042-0300-2 300 SMALL
H8042-0400-3 400 MEDIUM
H8042-0800-3 800 MEDIUM
H8042-0800-4 800 LARGE
H8042-1600-4 1600 LARGE
H8042-2400-4 2400 LARGE
H8043-0100-2
208/240
100 SMALL
Three CT
Model
H8043-0300-2 300 SMALL
H8043-0400-3 400 MEDIUM
H8043-0800-3 800 MEDIUM
H8043-0800-4 800 LARGE
H8043-1600-4 1600 LARGE
H8043-2400-4 2400 LARGE
H8044-0100-2
480
100
4-20mA
SMALL
Three CT
Model
H8044-0300-2 300 SMALL
H8044-0400-3 400 MEDIUM
H8044-0800-3 800 MEDIUM
H8044-0800-4 800 LARGE
H8044-1600-4 1600 LARGE
H8044-2400-4 2400 LARGE
MODEL VOLTAGE MAX. AMPS OUTPUT CT SIZE CT TYPE
H8051-0100-2
208/480
100
Pulse
SMALL
Single CT Model
H8051-0300-2 300 SMALL
H8051-0400-3 400 MEDIUM
H8051-0800-3 800 MEDIUM
H8051-0800-4 800 LARGE
H8051-1600-4 1600 LARGE
H8051-2400-4 2400 LARGE
H8053-0100-2 100 SMALL
Three CT Model
H8053-0300-2 300 SMALL
H8053-0400-3 400 MEDIUM
H8053-0800-3 800 MEDIUM
H8053-0800-4 800 LARGE
H8053-1600-4 1600 LARGE
H8053-2400-4 2400 LARGE

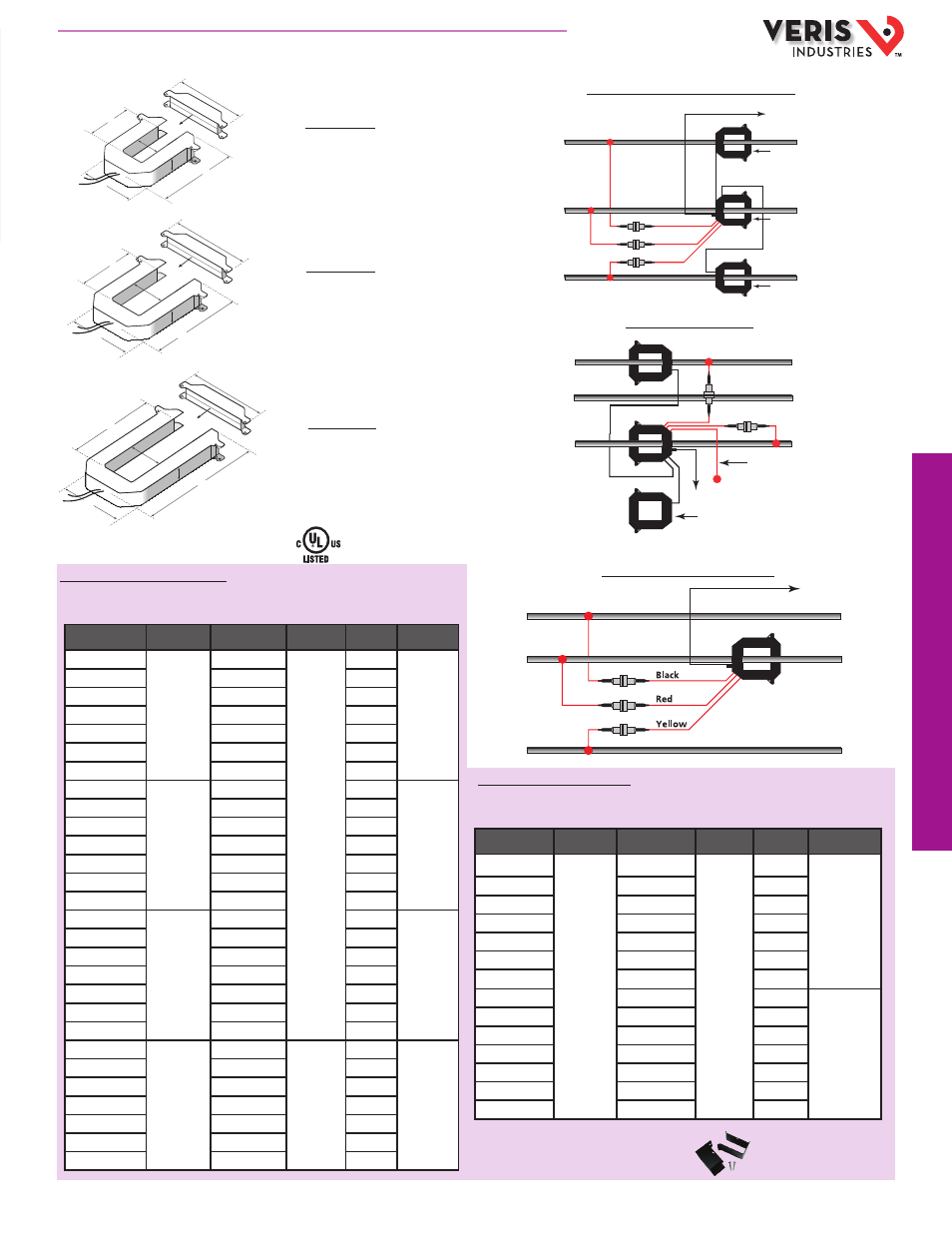

DIMENSIONAL DRAWINGS
H804x/H805x 208 or 480VAC 3Ø, 3/4 Wire
APPLICATION/WIRING EXAMPLES
H804x 240VAC 1Ø, 3-Wire
120
Yellow Voltage
Lead capped
N
120
Yellow CT*
4-20 mA Output
Red CT
Black CT*
Black
Red
4-20mA or Pulse Output
Black CT*
Black
Red
Yellow
Yellow CT*
Red CT
ØB
ØA
ØC
H805x 208 or 480VAC 3Ø, 3/4-Wire
A
B
E
F
C D
B
E
F
C
D
A
A
B
E
C
F
D
SMALL
100/300 Amp
MEDIUM
400/800 Amp
LARGE
800/1600/2400 Amp
A = 3.8" (96 mm)
B = 1.2" (30 mm)
C = 1.3" (31 mm)
D = 1.2" (30 mm)
E = 4.0" (100 mm)
F = 4.8" (121 mm)
A = 4.9" (125 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 5.2" (132 mm)
F = 6.0" (151 mm)
A = 4.9" (125 mm)
B = 5.5" (139 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 7.9" (201 mm)
F = 6.0" (151 mm)
ORDERING INFORMATION
ACCESSORIES
CT Mounting brackets (AH06)
4-20 mA Output Power Transducers
Single CT Models for Use with Balanced 3Ø Loads
Three CT Models for Use with Unbalanced 3Ø Loads
Pulse Output
ØB
ØA
ØC
Pulse Output Power Transducers
Single CT Models for Use with Balanced 3Ø Loads
Three CT Models for Use with Unbalanced 3Ø Loads
AH06
HQ0001811.C 01131
