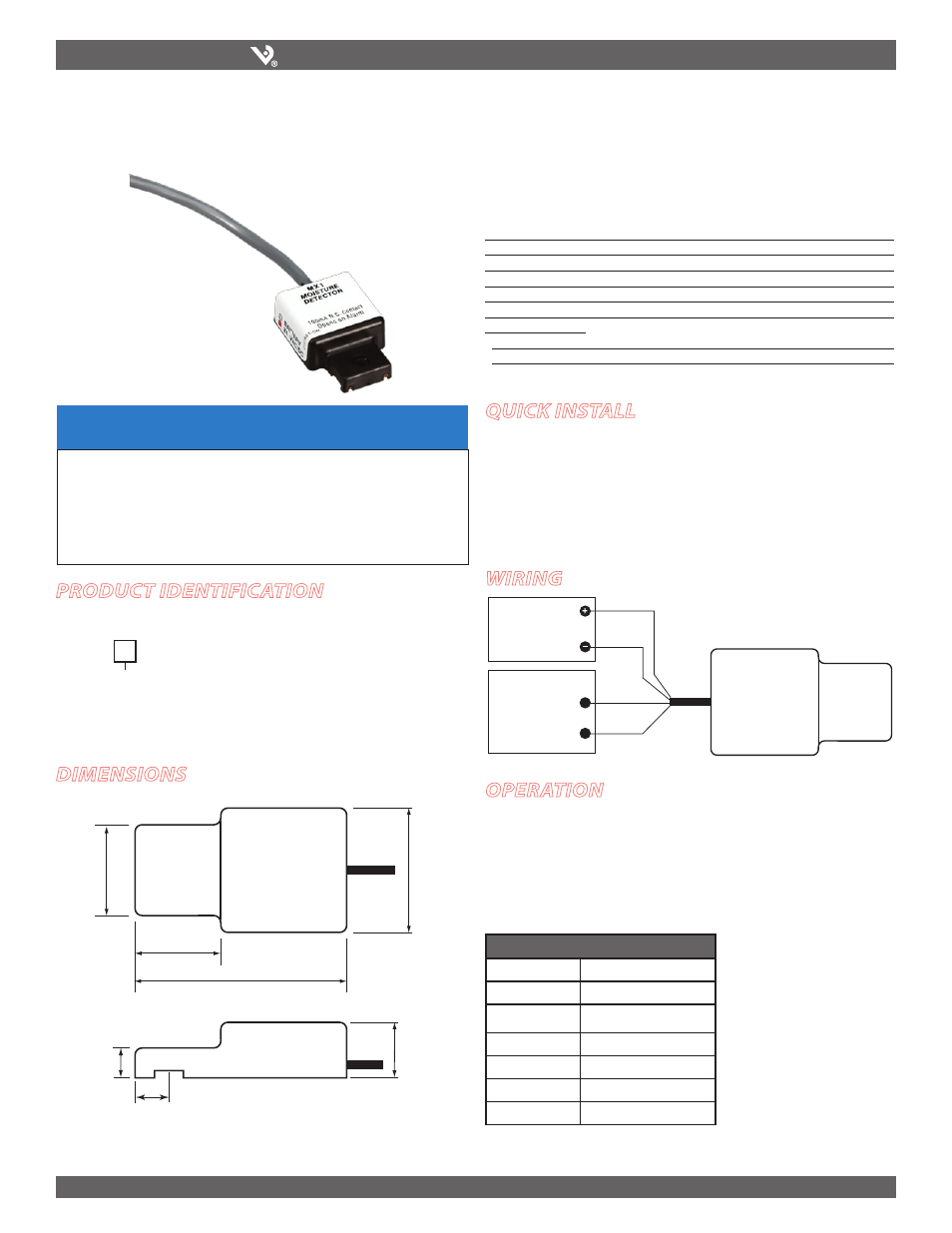

Veris Industries MX1 SERIES Install - Manual

Z202169-0K PAGE 1 ©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / [email protected] 06083
6%2)3 environmental SenSorS inStallation GUiDe
Moisture Detector
quick install
Installer's Specifications
MX1 SerieS MX1 SerieS
Dimensions
/05*$&
t 5IJTQSPEVDUJTOPUJOUFOEFEGPSMJGFPSTBGFUZBQQMJDBUJPOT
t %POPUJOTUBMMUIJTQSPEVDUJOIB[BSEPVTPSDMBTTJmFEMPDBUJPOT
t 3FBEBOEVOEFSTUBOEUIFJOTUSVDUJPOTCFGPSFJOTUBMMJOH
UIJTQSPEVDU
t 5VSOPõBMMQPXFSTVQQMZJOHFRVJQNFOUCFGPSFXPSLJOHPOJU
t 5IFJOTUBMMFSJTSFTQPOTJCMFGPSDPOGPSNBODFUPBMMBQQMJDBCMFDPEFT
ProDuct iDentification
Input Power 12-30VDC/24VAC; 10-year lithium battery model available
Max. Current Draw, Voltage Units Only 10mA
Output N.C. solid-state; opens on alarm
Output Rating 30VAC/DC @ 0.1A max., polarity insensitive
Sensing Electrodes Gold plated
Sensor Power, Voltage Units Only 24VDC/24VAC nom., 30VDC/30VAC max.
Operating Environment:
Temperature -20° to 80°C (-4° to 176°F)
Humidity 0 to 100% RH
Power Source
MX1
B = Battery
V = 12-30VDC/24VAC
0.3"
(7 mm)
0.3"
(7 mm)
0.6"
(14 mm)
0.75"
(19 mm)
1.75"
(44 mm)
1.2"
(30 mm)
0.5"
(13 mm)
Wiring
POWER SOURCE
DIGITAL CONTROL
Digital Input
Black
Red
NOTE: Power supply not required
for battery powered version
White
Green
12 to 30VDC/24VAC
Install the MX1 in the area to be monitored (e.g. under carpet, on pipe, in 1.
condensate pan, etc.). Install bottom side down, so that probes will be in contact
with any moisture that collects.
Mount MX1 using self-tapping screw provided. 2.
Wire as shown. 3.
Equivalent Resistance Values of Water
Water Resistance
Distilled 2000 kΩ
Filtered 350 kΩ
Tap 300 kΩ
Ice (Melted) 150 kΩ
Detergent 100 kΩ
Salt 75 kΩ
oPeration
Top
Bottom
When the area surrounding the device is dry, there is infinite resistance between
the probes. When liquid comes into contact, the resistance decreases. When the
resistance is <1000 kΩ, the alarm will trigger.
The following table shows typical resistance values for several common solutions.
These values are approximations; the resistance will vary greatly with concentration
of contaminants in the water.
All sensors are factory tested in clean, filtered water at 27VAC. Do not use the MX1
sensor in distilled water.
