800.354.8556 +1 503.598.4564 www.veris.com
Network Display
Downstream RS-485
H663/H704
Branch Circuit Monitor
H8163 with H8163-CB
Energy Meter with
Communication Board
H8035/H8036
Enercept Power Meter
H8238
Multi-Circuit Monitor
E3x
Panelboard Monitor
E5xCx
Power and Energy Meter
End-of-Line
Termination Resistor
100 Ohms
Up to 63 (physical) or 246 (logical) devices
8”
(203 mm)
8”
(203 mm)
5.3”
(133 mm)
4.2”
(108 mm)
5.7”
(146 mm)
TM
DIMENSIONAL DRAWING

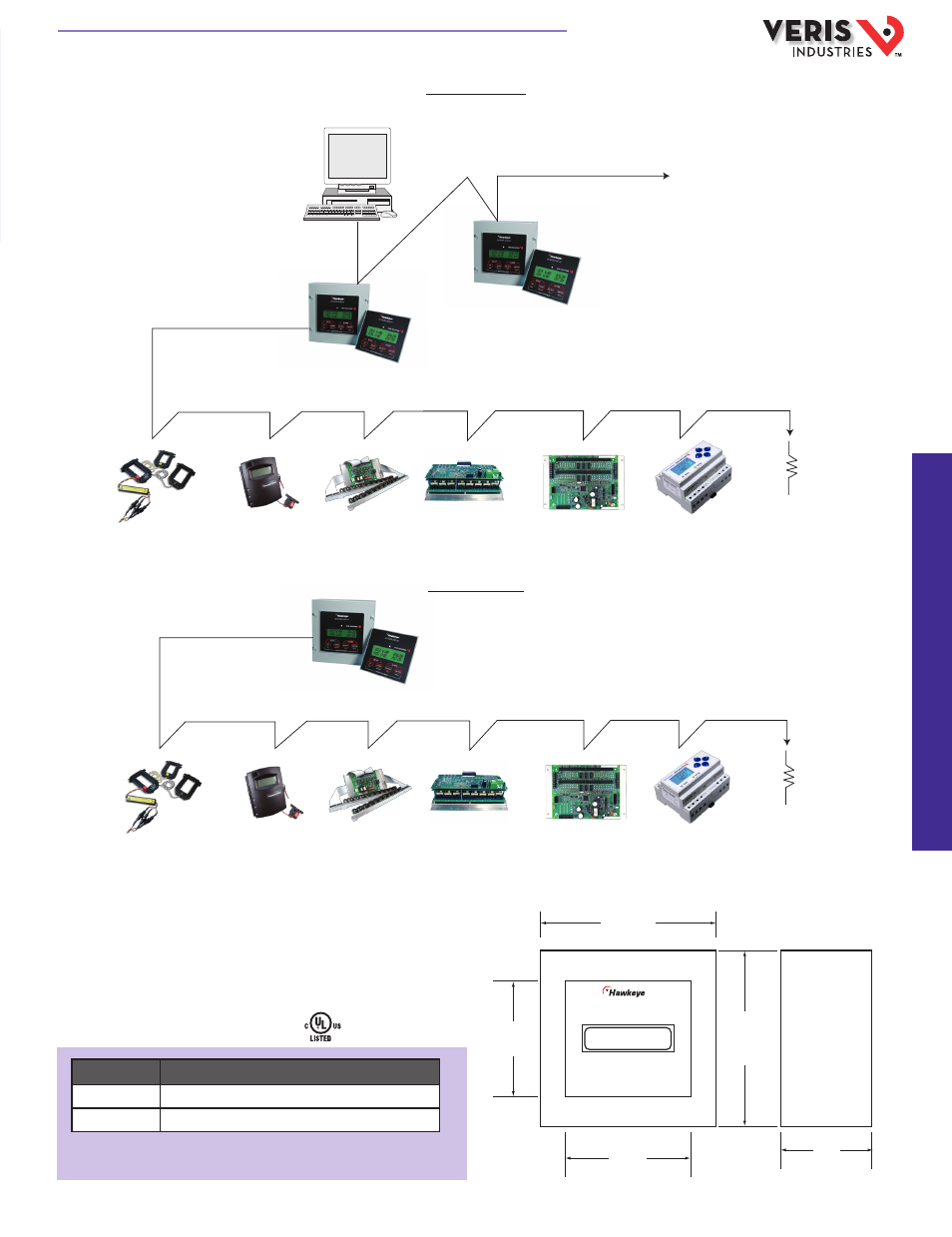

APPLICATION/WIRING EXAMPLES
MODEL DESCRIPTION
H8936 Modbus ® network display enclosed in NEMA box
H8932 Modbus ® network display panel mount, no box
Other protocols are available. Consult factory.
Network Host Mode
Local Display Mode
ORDERING INFORMATION
Control Panel
or PC
Next Network Display
On to additional Network Displays
Network Display
H663/H704
Branch Circuit Monitor
H8163 with H8163-CB
Energy Meter with
Communication Board
H8035/H8036
Enercept Power Meter
H8238
Multi-Circuit Monitor
E3x
Panelboard Monitor
E5xCx
Power and Energy Meter
End-of-Line
Termination Resistor
100 Ohms
Upstream RS-485
or
RS-232
Downstream RS-485
Up to 63 (physical) or 246 (logical) devices
HQ0001809.C 01131
