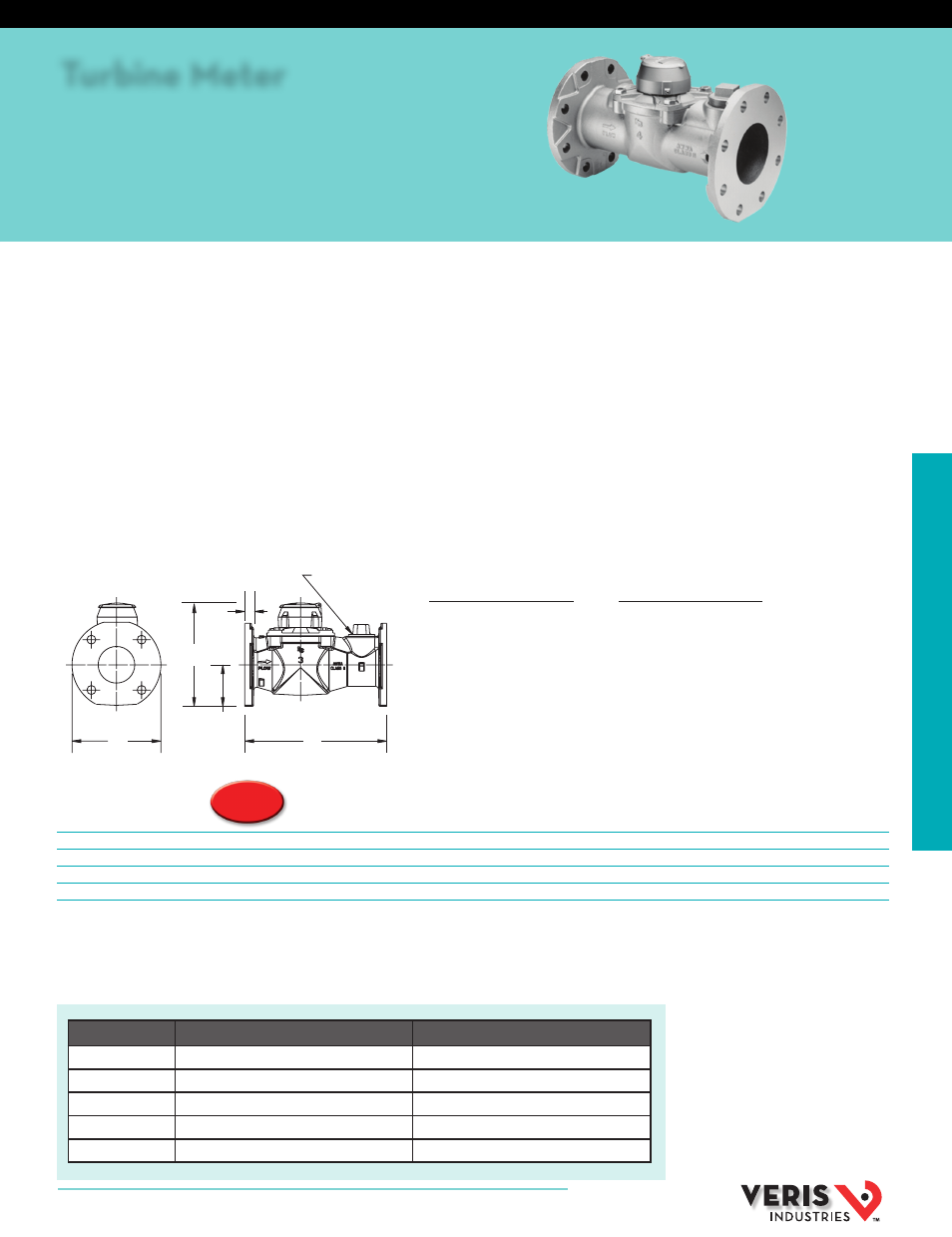

Turbine Meter
FEATURES
●
Long lasting ceramic bearings
●
Easy to service in-line...minimize downtime
●
Suitable for a wide flow range...application flexibility
●
Direct drive mechanism...highest low flow sensitivity
●
Ideal where continuous service and minimal maintenance are required
●
Mechanical dial display...easy operation
●
Optional pulse output transmitter...added versatility
DESCRIPTION
Turbo Series meters are built for long term service with minimal maintenance. The
meter is designed to reduce wear by reducing the friction between the moving parts
of the rotor and bearing system, resulting in a longer product life.
Water flows into the meter’s measuring element, contacting the multi-vaned
rotor. The resulting rotor revolutions give flow readings, which are transmitted by
magnetic drive couplings.
APPLICATIONS
●
Chemical or industrial fluid monitoring
●
Potable cold water with flow in one direction only
For Pipe Sizes 2”, 3”, 4”, and 6”
SPECIFICATIONS
Flow Range
450: 5-450 GPM; 1000: 10-1000 GPM (continuous)
Maximum Operating Pressure
150 psi
Maximum Operating Temperature
49°C (120°F)
Accuracy
±1.5% of full scale
Repeatability
±0.5%
DIMENSIONAL DRAWING
MODEL
MANUF. PART #
DESCRIPTION
U014-0001
450, Recordall Turbo Model
Flow, Sensor, Turbo-450, Inline, Bronze,RndFlng
U014-0002
1000, Recordall Turbo Model
Flow, Sensor, Turbo-1000, Inline, Bronze,RndFlng
U014-0003
RTR
Flow, Transmitter, Fixed Pulse with Totalizer
U014-0004
Connectors, Recordall Turbo, 450
Flow, Acc, 3 in, Connections, Cast Iron
U014-0005
Connectors, Recordall Turbo, 1000
Flow, Acc, 4 in, Connections, Cast Iron
ORDERING INFORMATION
Model 450
Year
Warranty
1
2" NPT (test plug)
C
A
B
D
E
450 (3” pipe)
A = 12.0” (305 mm)
B = 7.5” (191 mm)
C = 8.7” (220 mm)
D = 0.75” (19 mm)
E = 3.4” (85 mm)
1000 (4” pipe)
A = 14.0” (356 mm)
B = 9.0” (229 mm)
C = 9.7” (245 mm)
D = 0.8” (21 mm)
E = 4.3” (109 mm)
TURBINE SERIES
HQ0001788.B 01131
