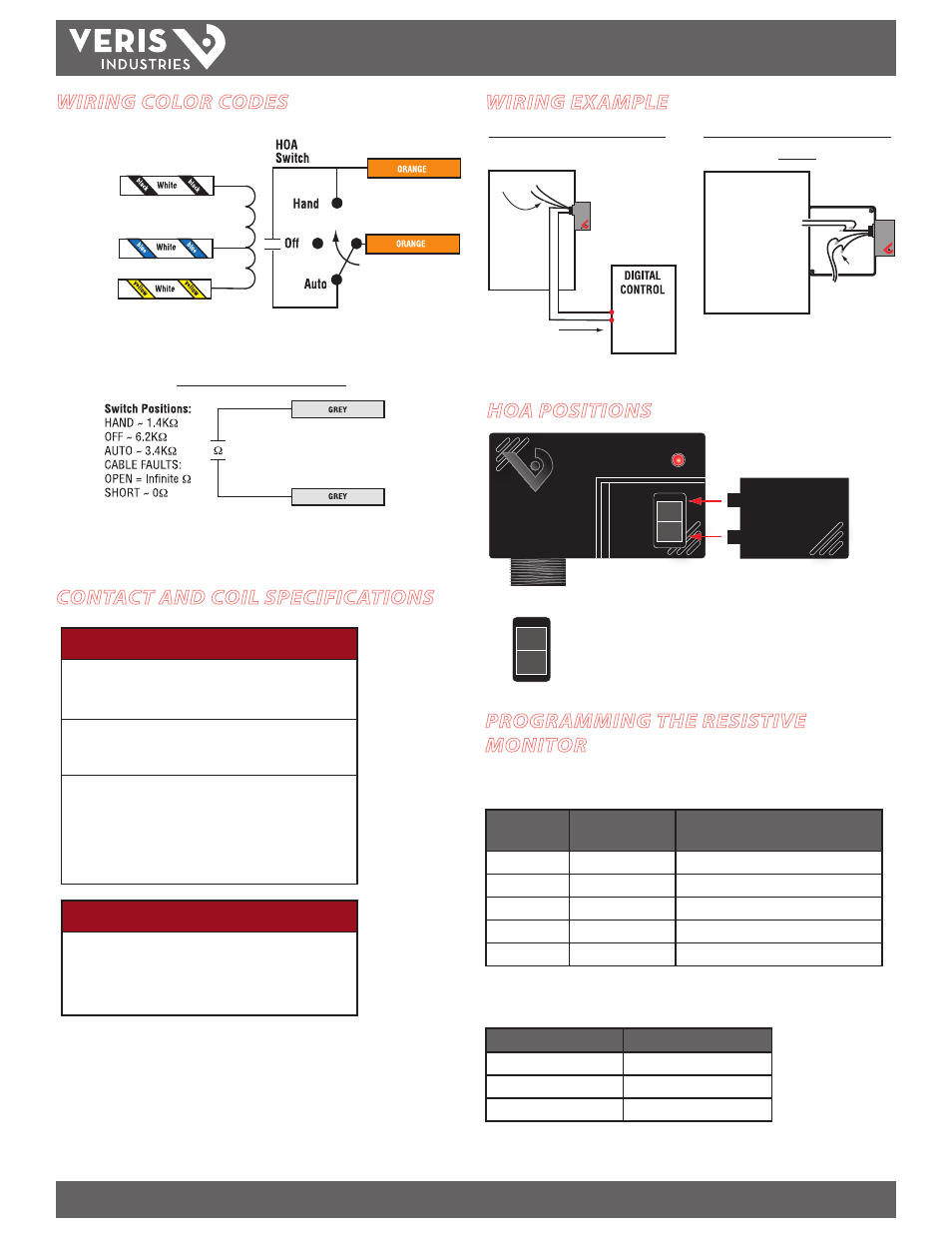

V102 INSTALLATION GUIDE
HOA POSITIONS
WIRING EXAMPLE
Nipple mount directly to a panel Nipple mount to a 2x or 4x electri-
cal box
To Load
To Controls
COIL
CONT
ACTS
To Load
To Controls
Wire
Nut
CO
IL
CONTACTS
WIRING COLOR CODES
CONTACT AND COIL SPECIFICATIONS
Pull in Voltage AC DC
10-30V..................................... 8 9
120V........................................ 78
Drop Out Voltage
AC DC
10-30V..................................... 2 3
120V........................................ 18
Voltage
Coil Current
AC DC
10V.......................................... 25mA 14mA
24V.......................................... 31mA 16mA
30V.......................................... 39mA 18mA
120V........................................ 22mA -
TYPICAL COIL PERFORMANCE
CONTACT RATINGS
Resistive.............. 10A@277VAC
Motor.................... 1/3HP@120VAC
Gold Flash............. Yes
HAND
OFF
AUTO Up position: contacts are closed.
Middle position: contacts are open.
Down position: control system actuates the contacts.
Resistive HOA Position Monitor
10-30VAC/DC
120VAC
LOW
wht/blue
COMM
wht/yellow
HI
wht/black
CONTACT OUTPUT CONTROL SYSTEM INPUT
Common
PROGRAMMING THE RESISTIVE
MONITOR
The resistive monitor is a 0-10 kΩ analog output for monitoring the HOA switch
position. Please use the following ranges for the DDC scaling.
Condition Range* (Ω) Nominal Values without Wire
Resistance* (Ω)
Line Open Greater than 8630 n/a
HOA Off 5290 to 8630 6190
HOA Auto 2880 to 5289 3391
HOA On 1200 to 2879 1406
Line Shorted Less than 1200 n/a
* Ranges based on the presence of 0-1000Ω of resistance due to wire. Average # of feet for 1000 Ω
by wire AWG listed below.
Wire Type (AWG) † Distance Allowed (ft.)
26 12,189
22 30,864
18 78,296
† All 2-wire runs
